Rear Center Speaker

AUDIO / VISUAL: REAR CENTER SPEAKER: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT STEREO COMPONENT SPEAKER
HINT:
Remove interior parts so that the stereo component speaker can be seen.

(a) Check the speaker installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the stereo component speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the stereo component speaker.





(c) Speaker resistance check
(1) Disconnect the rear speaker connector.
(2) Measure the resistance between the terminals of the speaker.
NOTE:
The speaker should not be removed for checking.

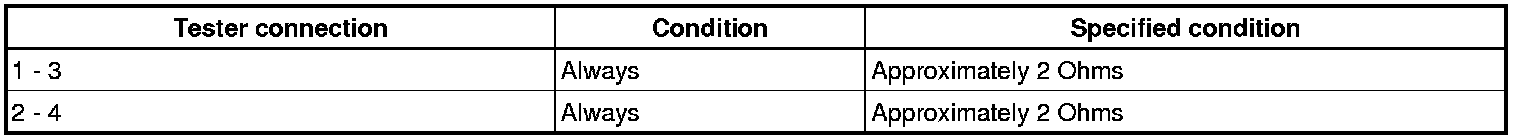

Standard resistance:
With Front Center Speaker





Without Front Center Speaker





If the result is not as specified, replace the stereo component speaker.
2. INSPECT REAR STEREO COMPONENT SPEAKER
HINT:
Remove interior parts so that the rear stereo component speaker can be seen.

(a) Check the speaker installation.
OK:
The speaker is securely installed.
If the result is not as specified, reinstall the stereo component speaker.
(b) Visually check the speaker.
OK:
The cone paper of the speaker is not torn.
If the result is not as specified, replace the rear stereo component speaker.
