Removal

METER: SATELLITE SWITCH: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) Removal
2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Removal
3. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal
4. REMOVE SIDE INSTRUMENT PANEL LH Removal
5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal
6. REMOVE SATELLITE SWITCH SET





(a) Remove the 3 screws and the finish panel No. 2 retainer with switch.

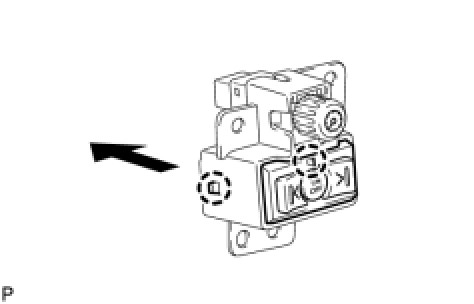

(b) Disengage the 2 claws and remove the satellite switch set from the finish panel No. 2 retainer with switch.
