Torque Specifications

SERVICE SPECIFICATIONS: 1UR-FSE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

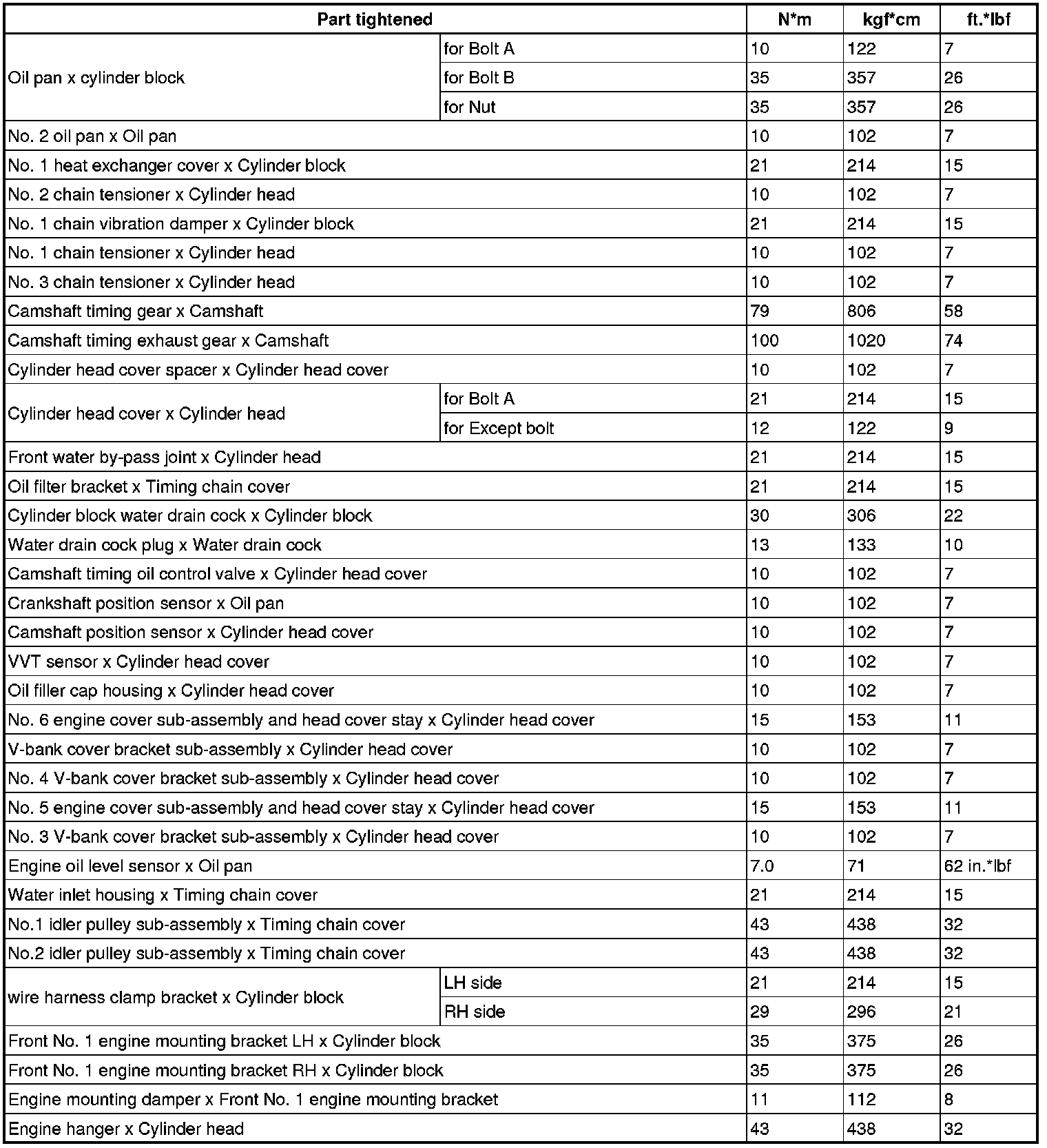

TORQUE SPECIFICATIONS














Cylinder Head

Bank 1:

Bank 2:

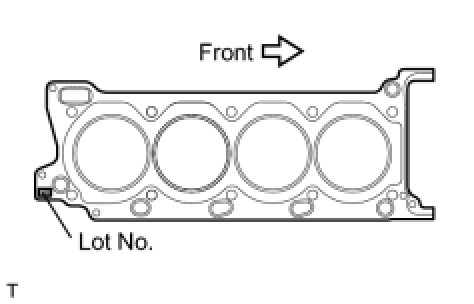

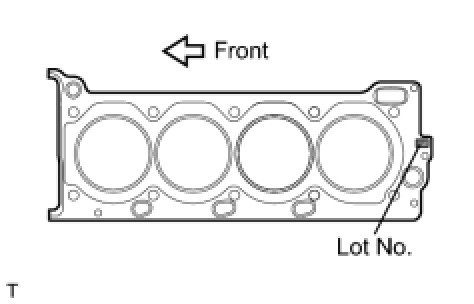

Place the cylinder head gasket on the cylinder block surface with the Lot No. stamp facing upward.

HINT: The cylinder head bolts are tightened in 3 progressive steps.









Step 1

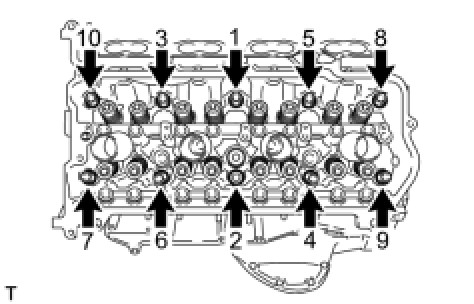

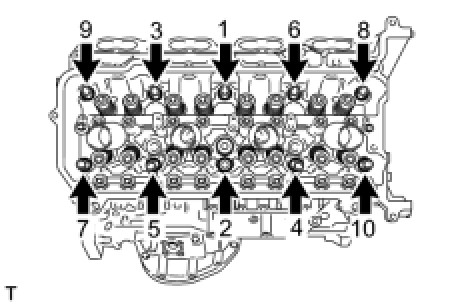

(1) Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 10 cylinder head bolts with the plate washers in several steps, in the sequence shown in the illustration.
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)





Step 2

(1) Mark each cylinder head bolt head with paint as shown in the illustration.

(2) Tighten the cylinder head bolts another 90° in the sequence shown in step 1.

Step 3

(1) Tighten the cylinder head bolts by an additional 90° in the sequence shown in step 1.

(2) Check that the painted marks are now facing rearward.

Bank 1:

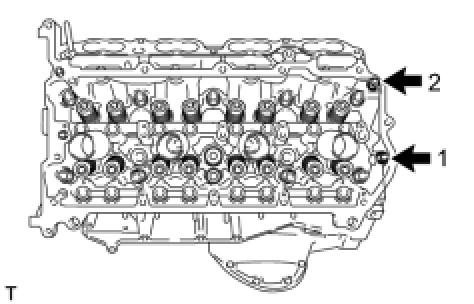

Uniformly install the 2 bolts in the sequence shown in the illustration.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)


Oil Pump Torque: 47 Nm (479 kgf-cm, 35 ft-lbf)





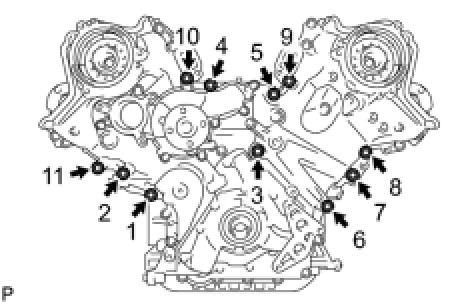

Water Pump
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)
Torque: 47 Nm (479 kgf-cm, 35 ft-lbf)

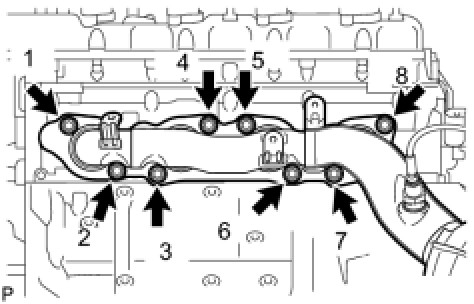

Exhaust Manifold Torque Sequence:

Exhaust Manifold
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)





Intake Manifold bolts
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
