Removal

1UR-FSE COOLING: WATER PUMP: REMOVAL

REMOVAL

1. REMOVE ENGINE UNDER COVER
2. DRAIN ENGINE COOLANT Service and Repair
3. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
4. REMOVE COOL AIR INTAKE DUCT SEAL Removal
5. REMOVE NO. 1 AIR CLEANER INLET Removal
6. REMOVE ENGINE ROOM SIDE COVER RH Removal
7. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
8. REMOVE RADIATOR RESERVE TANK ASSEMBLY Removal
9. REMOVE V-RIBBED BELT Removal
10. DISCONNECT NO. 2 RADIATOR HOSE





(a) Disconnect the No. 2 radiator hose from the water inlet sub-assembly with thermostat.

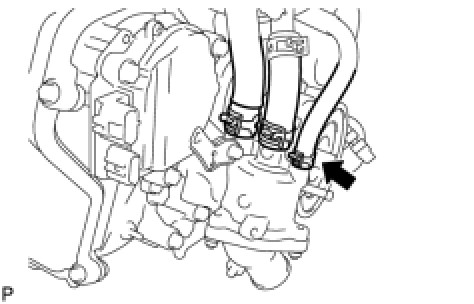

11. DISCONNECT NO. 5 WATER BY-PASS HOSE





(a) Disconnect the No. 5 water by-pass hose from the water inlet housing.

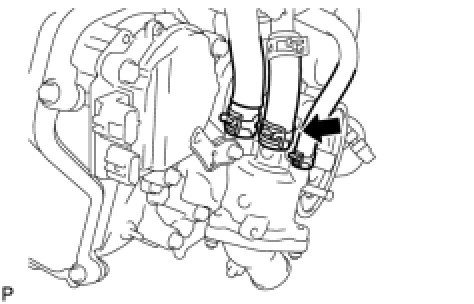

12. DISCONNECT WATER INLET HOSE





(a) Disconnect the water inlet hose from the water inlet housing.

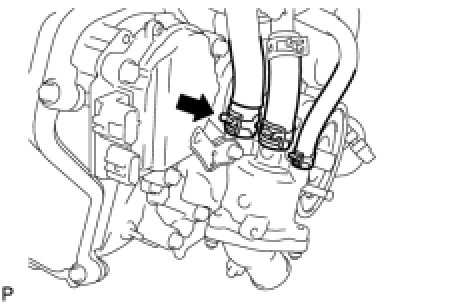

13. DISCONNECT NO. 3 WATER BY-PASS HOSE





(a) Disconnect the No. 3 water by-pass hose from the water inlet housing.
14. REMOVE WATER INLET HOUSING





(a) Remove the 3 bolts, water inlet housing and gasket.

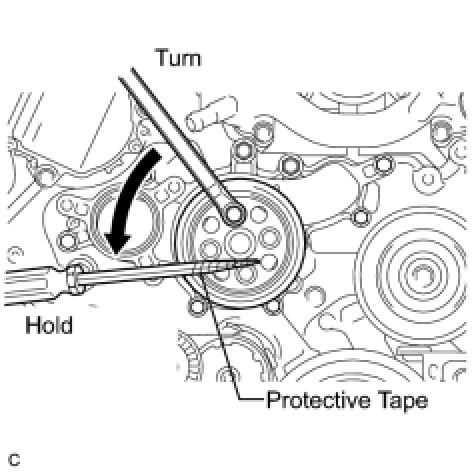

15. REMOVE WATER PUMP PULLEY





(a) Using a screwdriver or an equivalent, hold the water pump pulley.
HINT: Tape the screwdriver tip before use to avoid damage.

(b) Remove the 4 bolts and water pump pulley.

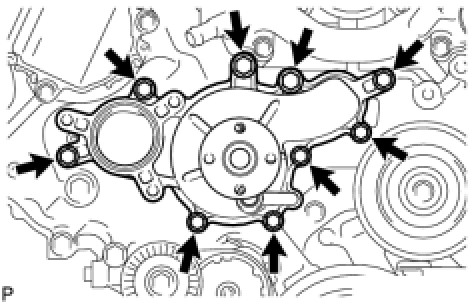

16. REMOVE WATER PUMP





(a) Remove the 9 bolts, water pump and gasket.
