WIPER AND WASHER: FRONT WASHER MOTOR: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT CLEANER CONTROL RELAY (w/ Headlight Cleaner System)
2. INSTALL HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY (w/ Headlight Cleaner System)

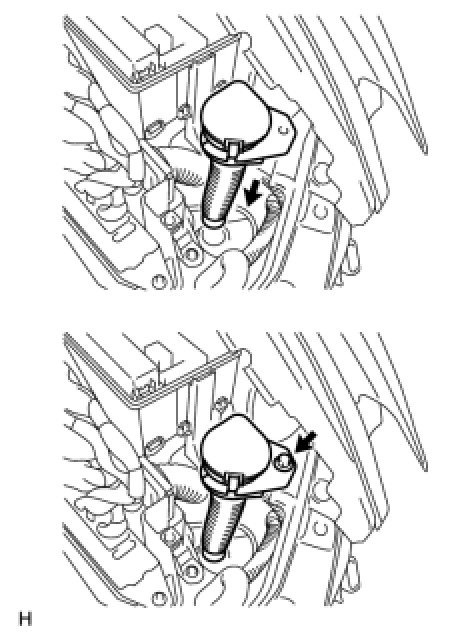

3. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
4. INSTALL WINDSHIELD WASHER JAR AND PUMP ASSEMBLY

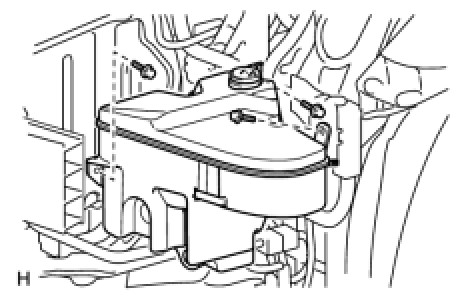

(a) Install the windshield washer jar and pump with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)





(b) Install the upper part of the washer jar and pump to the windshield washer jar and pump.
(c) Install the upper part of the washer jar and pump with the bolt.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)





(d) w/ Headlight cleaner system:

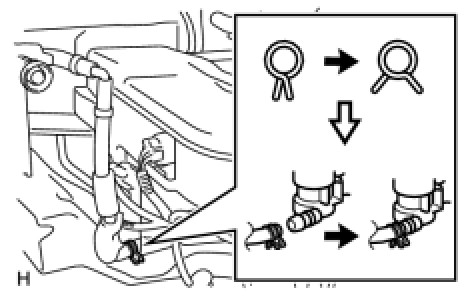

Connect the headlight cleaner hose to the windshield washer jar and pump.
(e) w/o Headlight cleaner system:

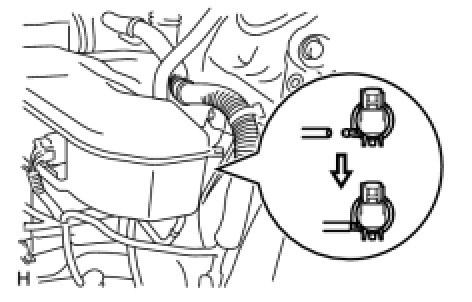

Connect the 2 connectors.
(f) w/ Headlight cleaner system:
Connect the 4 connectors.





5. FILL WINDSHIELD WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID
(a) Connect the washer hose to the windshield washer motor and pump, and fill the washer jar with washer fluid.
6. INSTALL HEADLIGHT ASSEMBLY LH Installation





7. INSTALL NO. 3 COOL AIR INTAKE DUCT SUB-ASSEMBLY

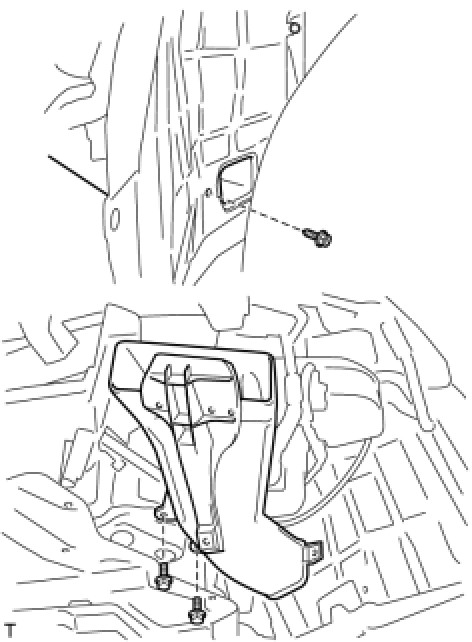

(a) Install the duct with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
8. INSTALL FRONT BUMPER COVER Removal





9. INSTALL FRONT FENDER LINER LH

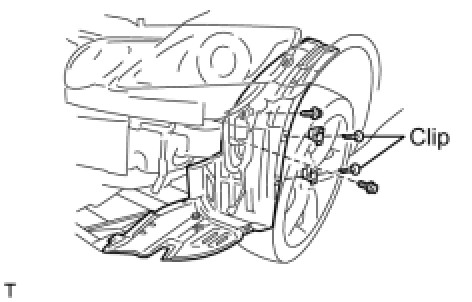

(a) Install the front liner with the 2 bolts and clip.





10. INSTALL FRONT FENDER LINER RH

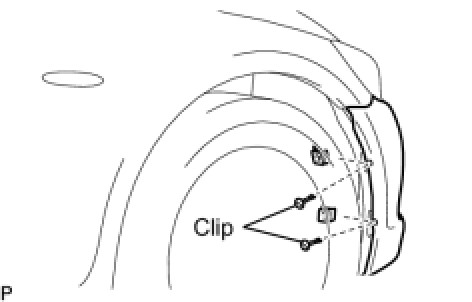

(a) Install the fender liner with the 2 clips.
11. INSTALL ENGINE UNDER COVER (for 2WD) Installation
12. INSTALL ENGINE UNDER COVER (for 4WD) Installation
13. INSTALL COOL AIR INTAKE DUCT SEAL Installation
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
