Pinout Values and Diagnostic Parameters

WIPER AND WASHER: WIPER AND WASHER SYSTEM: TERMINALS OF ECU

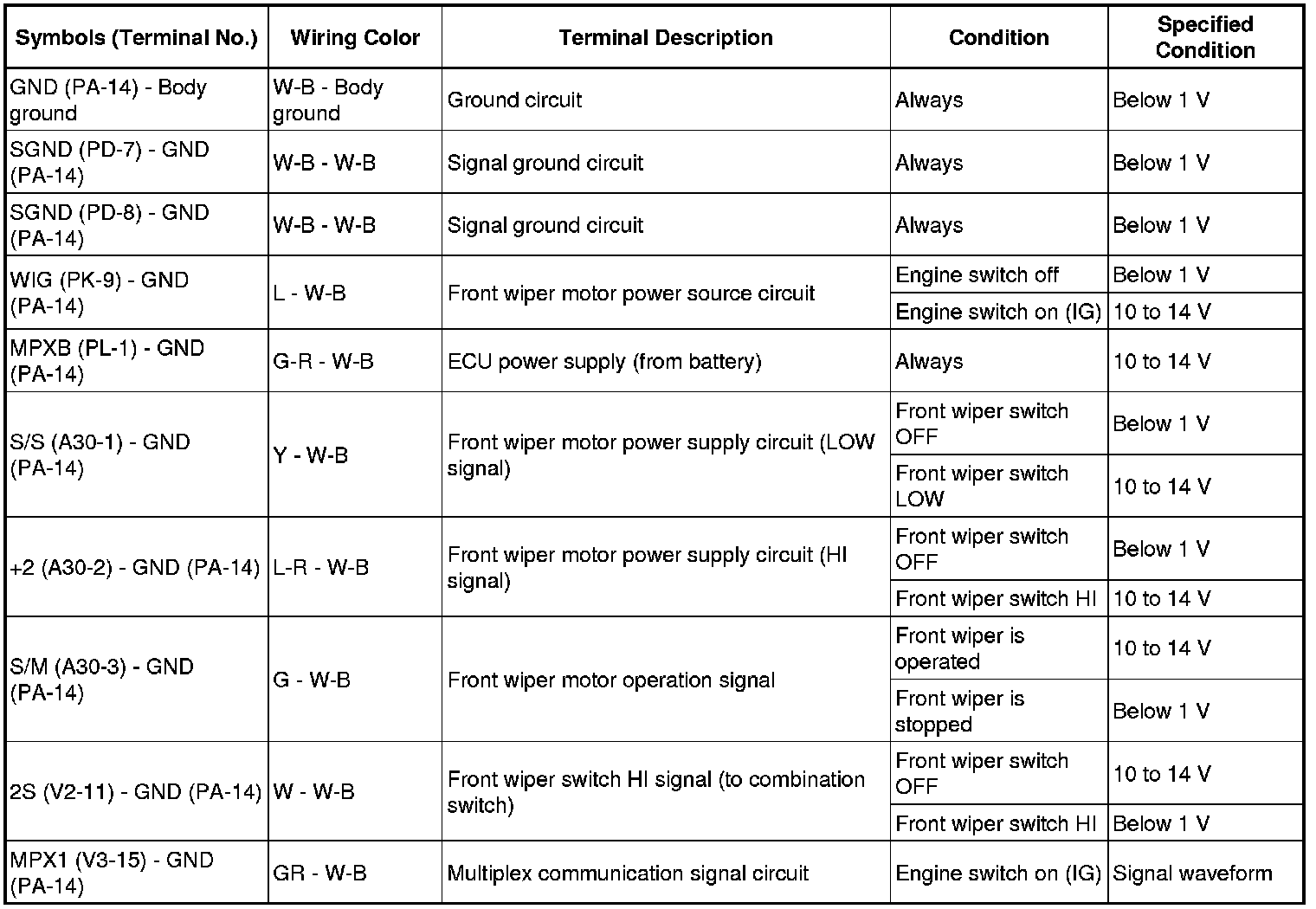

TERMINALS OF ECU

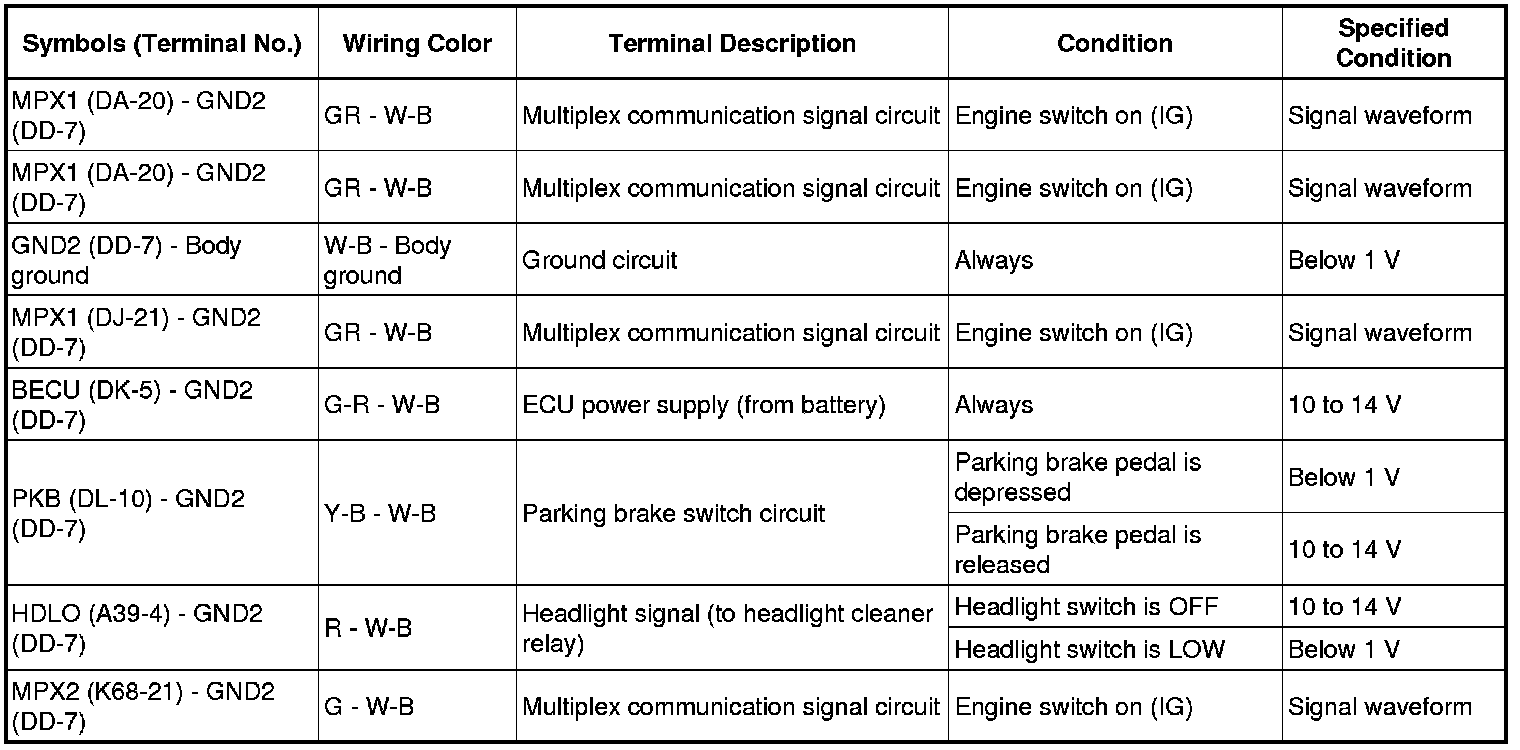

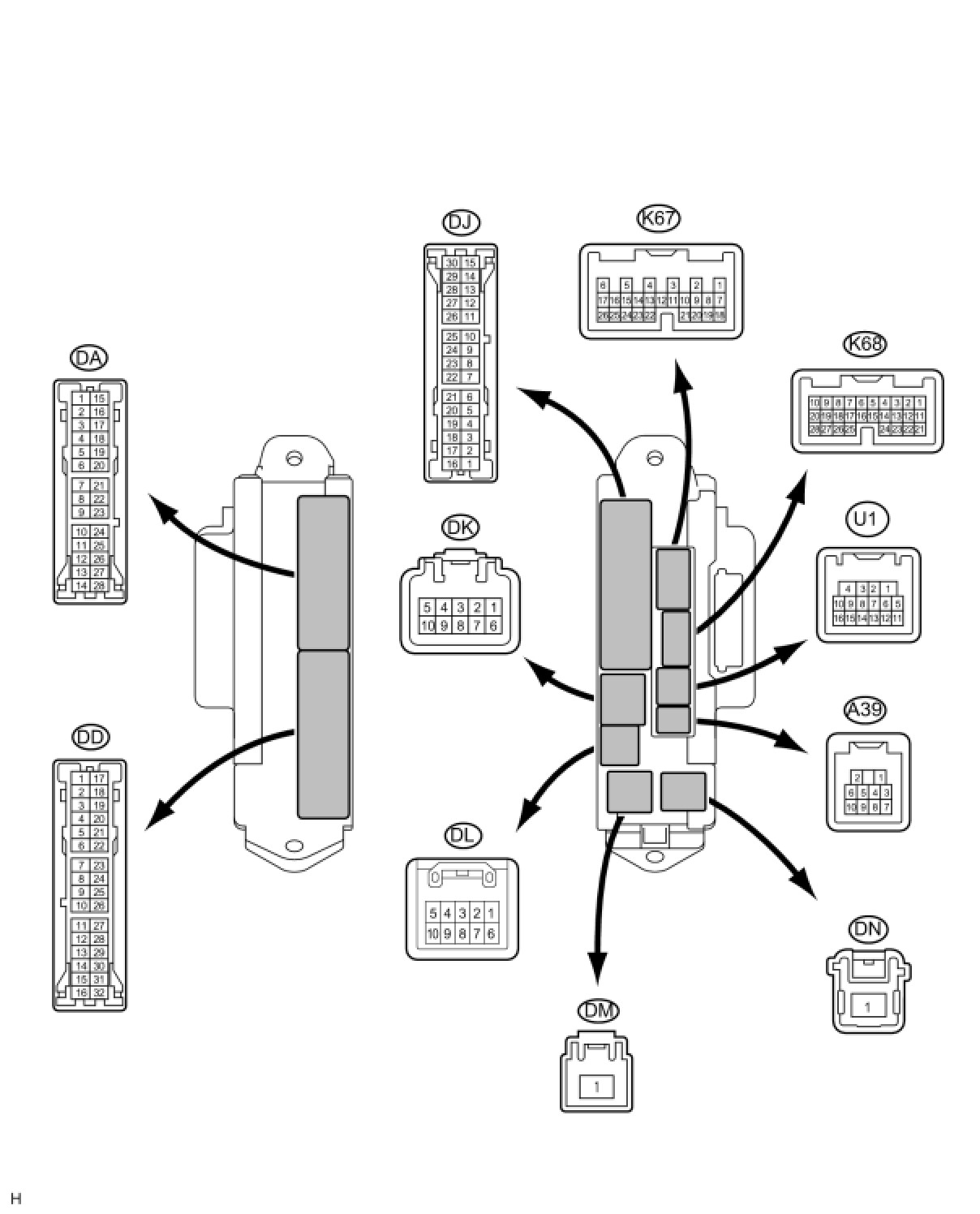

1. CHECK ENGINE ROOM JUNCTION BLOCK NO. 2 (FRONT CONTROLLER)

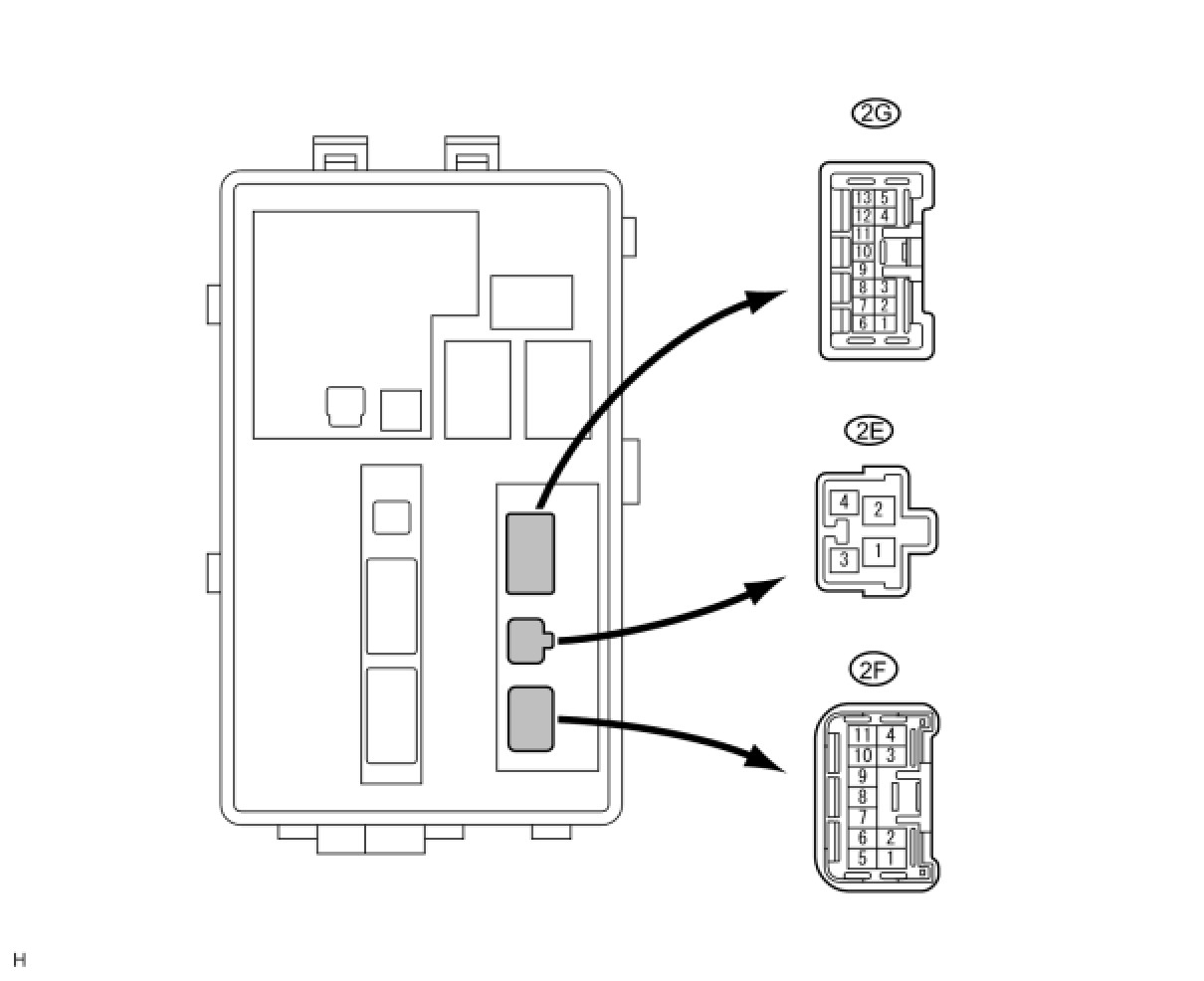

2. CHECK COWL SIDE JUNCTION BLOCK RH (MULTIPLEX NETWORK BODY ECU)

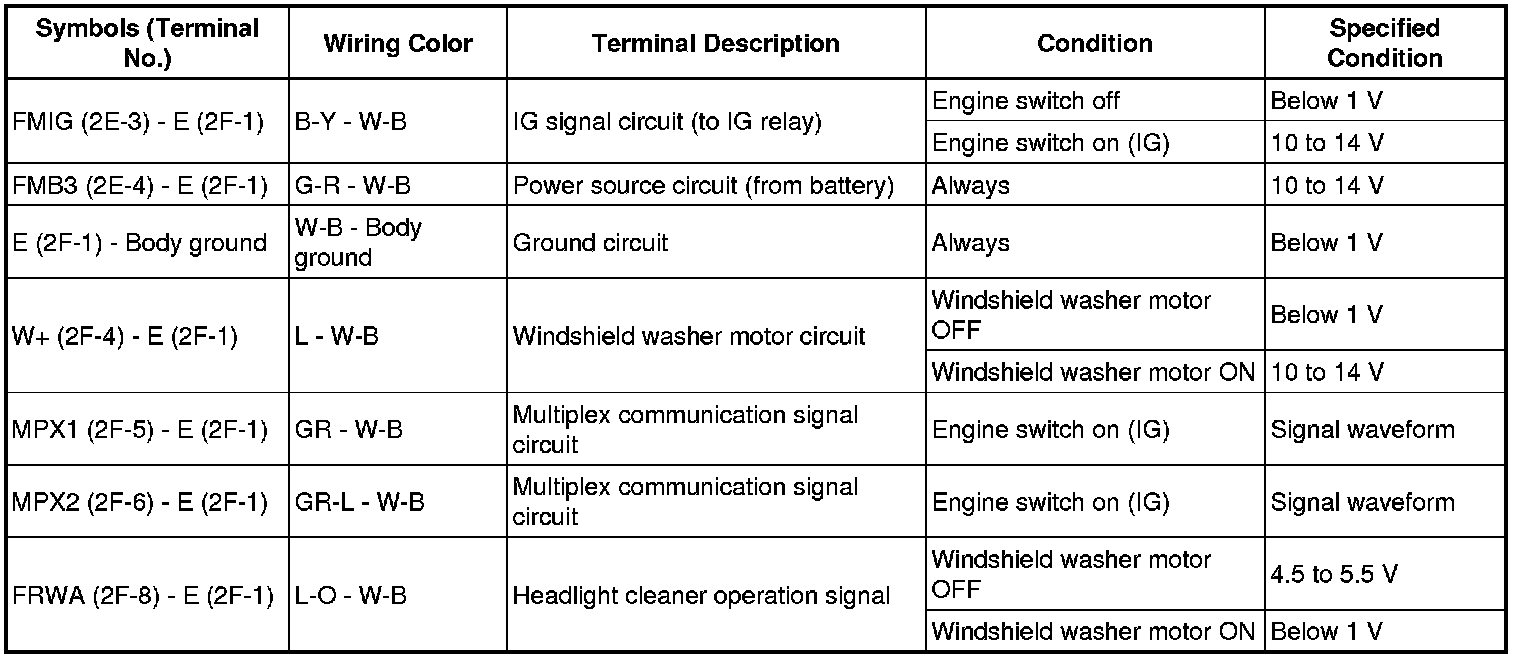

3. CHECK COWL SIDE JUNCTION BLOCK LH (COWL SIDE JUNCTION BLOCK ECU LH)

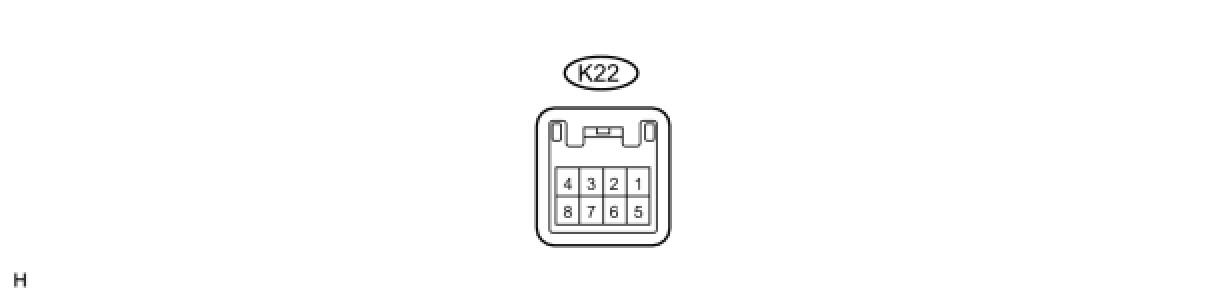

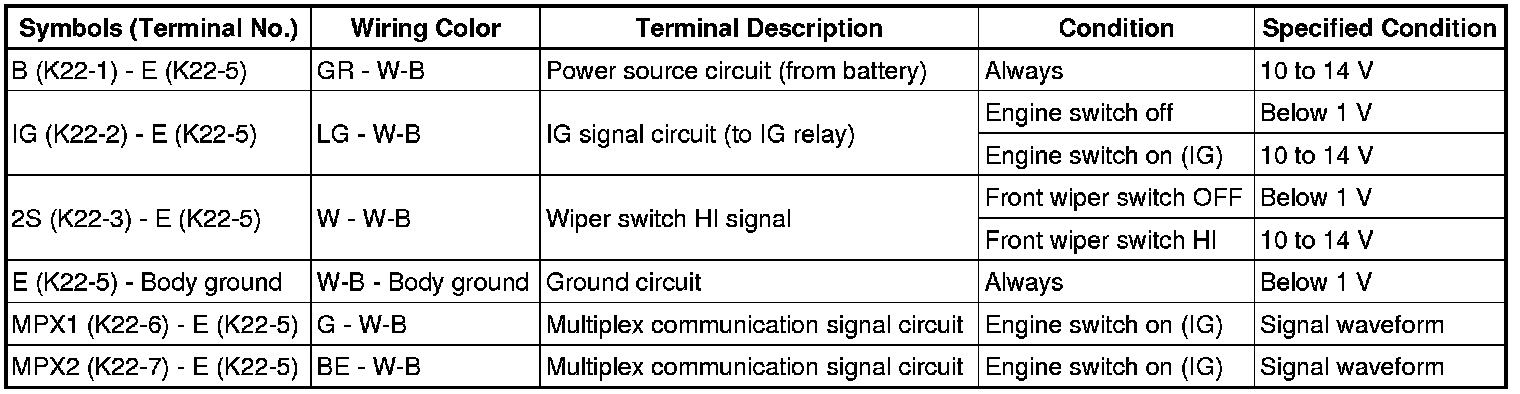

4. CHECK COMBINATION SWITCH ECU

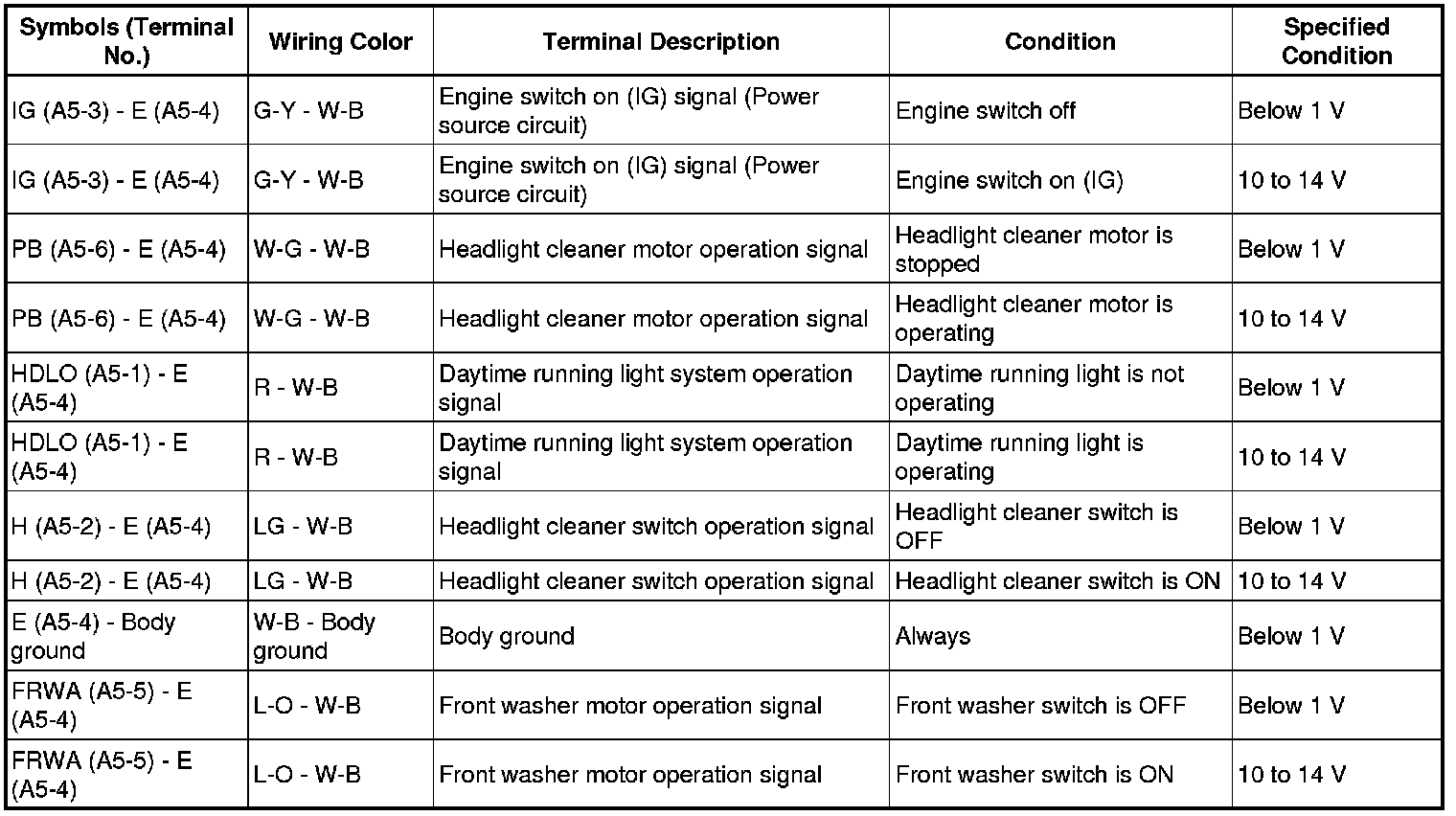

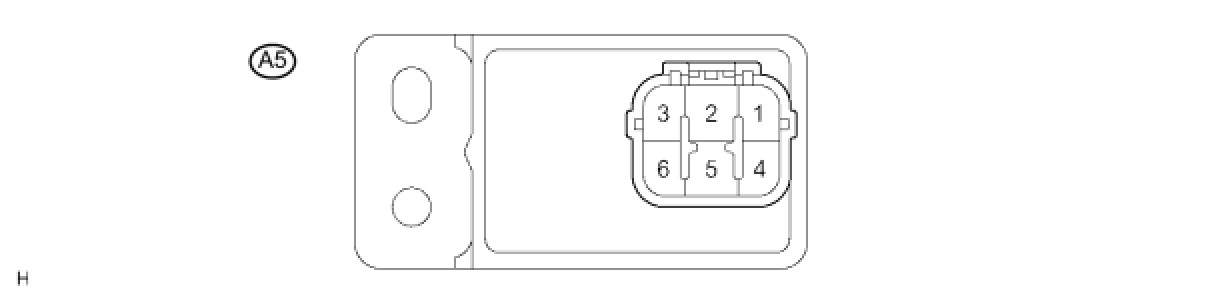

5. CHECK HEADLIGHT CLEANER CONTROL RELAY
