System Diagram

WIPER AND WASHER: WIPER AND WASHER SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

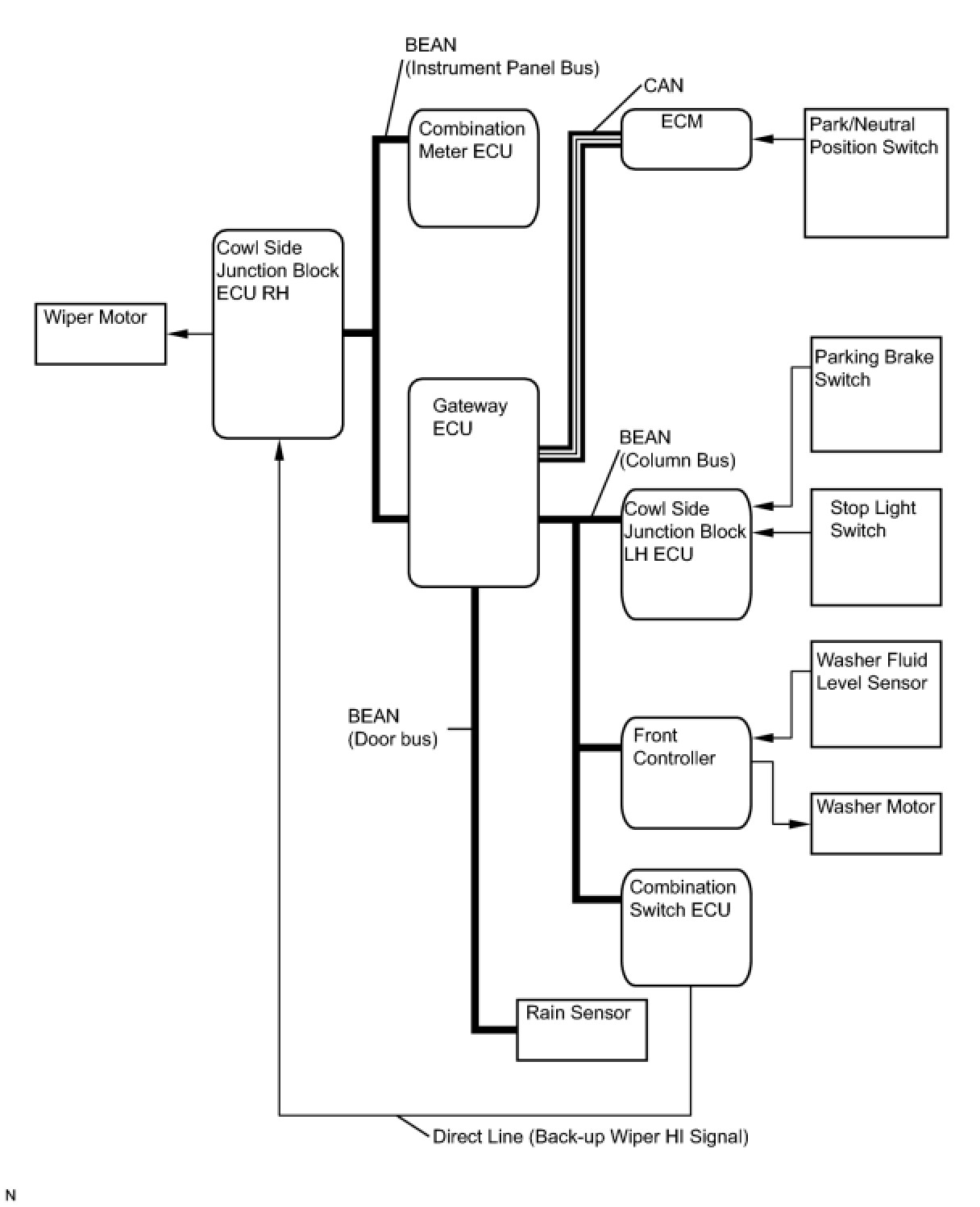

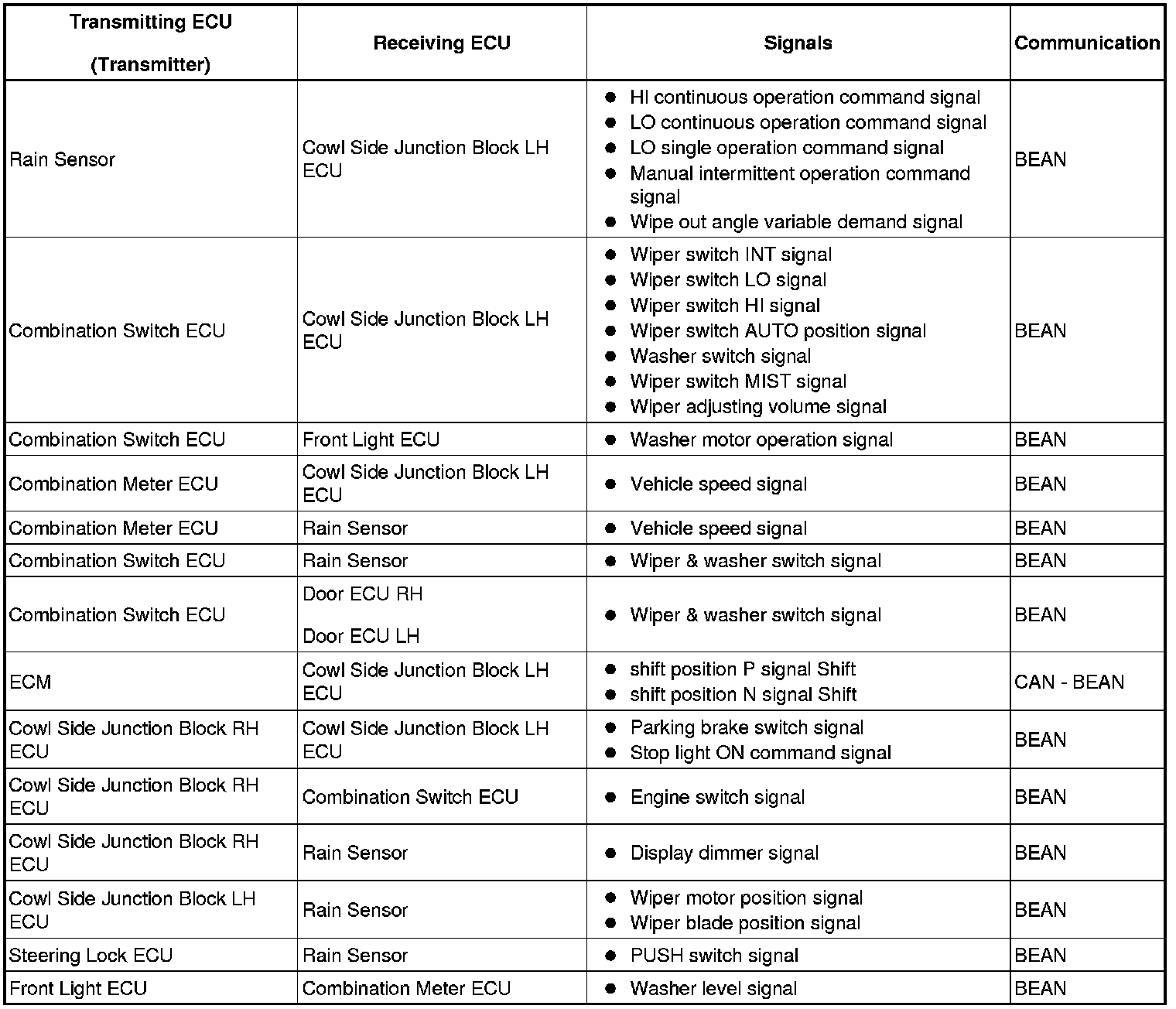

Input and output signal of each ECU :





HINT:
- Wiper operation is controlled by the cowl side junction block ECU LH.
- The rain sensor controls the auto wiper function.
