Inspection

INTERIOR: REAR SUNSHADE ASSEMBLY: INSPECTION

INSPECTION

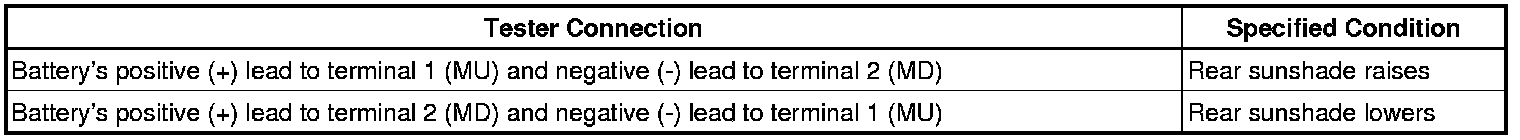

1. INSPECT REAR SUNSHADE MOTOR

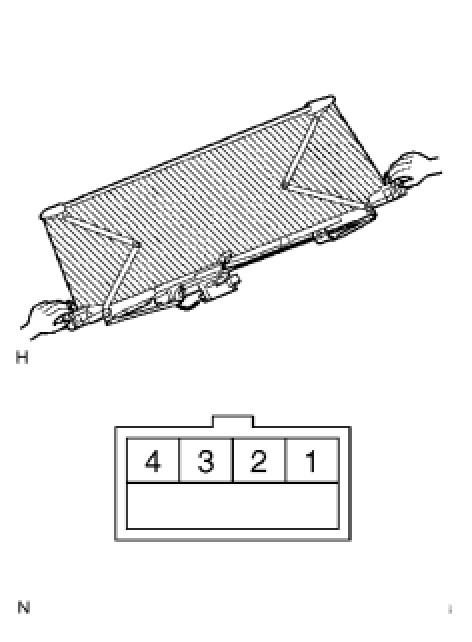

(a) Hold the edges of the rear sunshade with your hands, as shown in the illustration.
CAUTION:
Be careful when the rear sunshade raises and lowers. Something could get caught in the rear sunshade and cause an injury.
HINT: To prevent the motor from burning out, stop operation as soon as the rear sunshade is fully raised or lowered.

OK
