Window Shade: Description and Operation

INTERIOR: REAR SUNSHADE SYSTEM: SYSTEM DIAGRAM

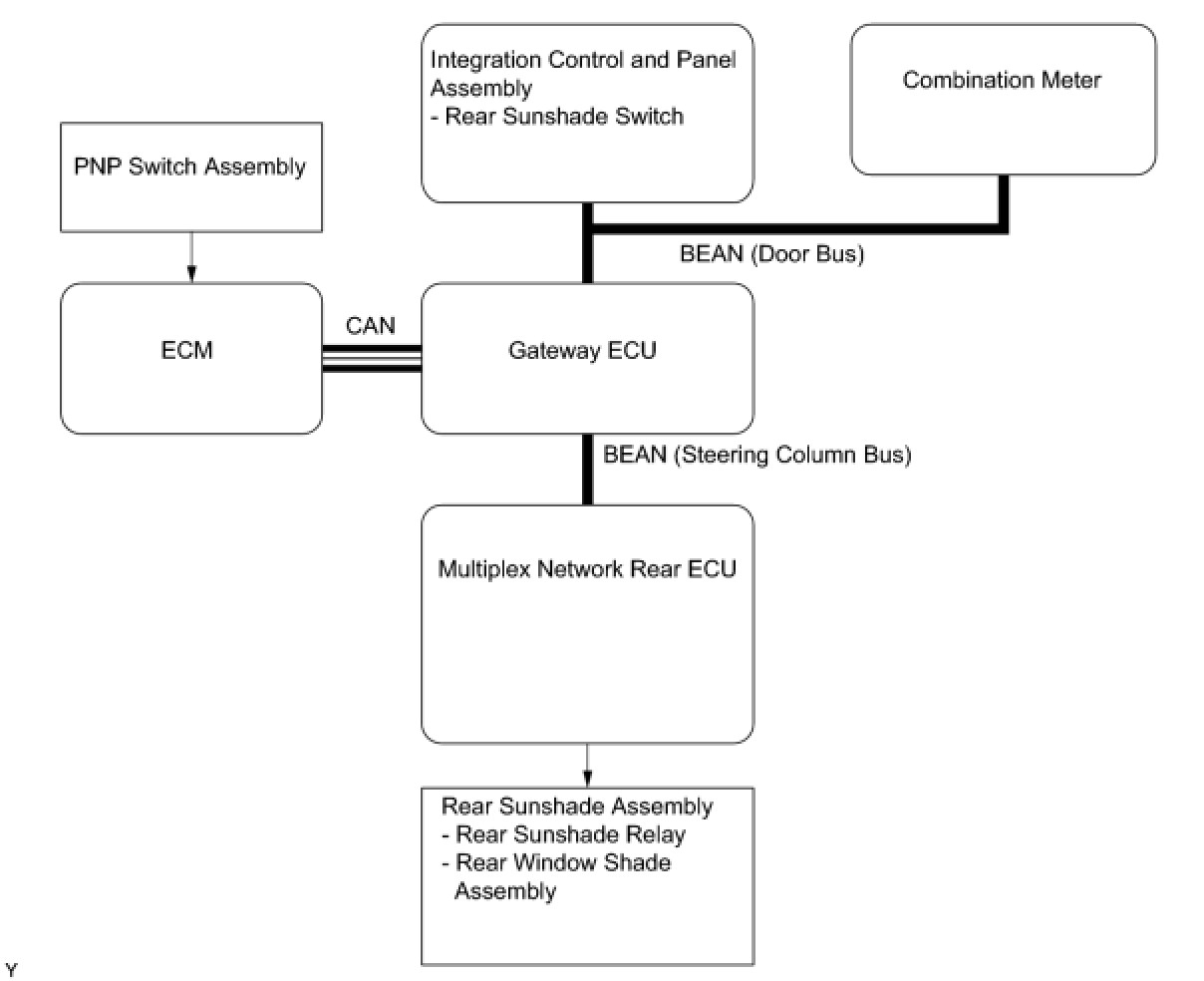

SYSTEM DIAGRAM

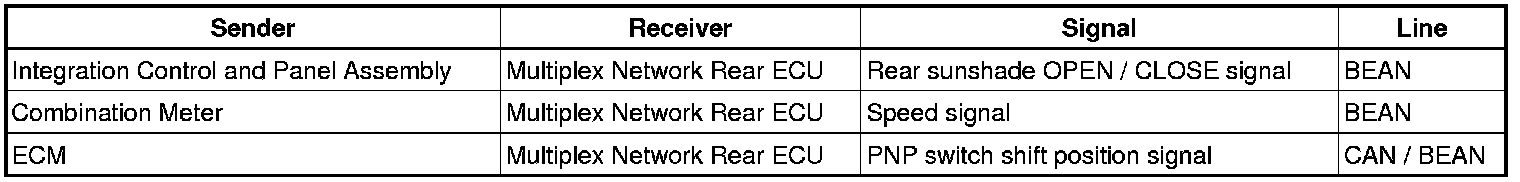

Communication table





INTERIOR: REAR SUNSHADE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. REAR SUNSHADE SYSTEM DESCRIPTION
(a) The rear sunshade is raised or lowered by operating the rear sunshade switch located in the integration switch control and panel assembly.
(b) When the shift lever is on R, the PNP switch sends a reverse-linked signal to the rear sunshade relay, and the rear sunshade lowers.
(c) When the shift lever is moved to P or the vehicle speed is 15 km/h (9.3 mph) or more, the rear sunshade is redeployed.
(d) Using the Techstream, the reverse-linked sunshade lowering function's response time can be customized to one of the following (seconds): 0, 0.7, 0.9, 1.2.
