Front Passenger Side Power Window Switch

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

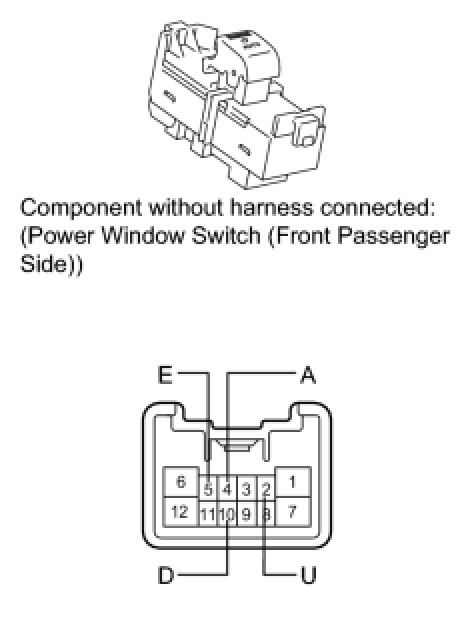

1. INSPECT POWER WINDOW SWITCH





(a) Measure the resistance according to the value(s) in the table below.

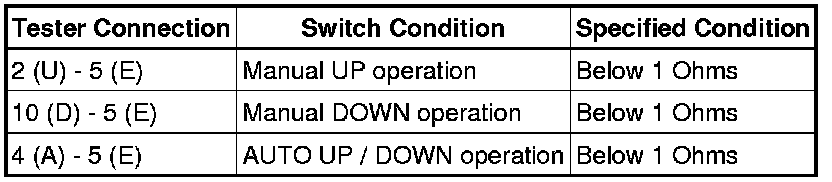

Standard resistance:





If the result is not as specified, replace the power window switch.
