Windshield Deicer System

WINDSHIELD / WINDOWGLASS: WINDSHIELD DEICER SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY

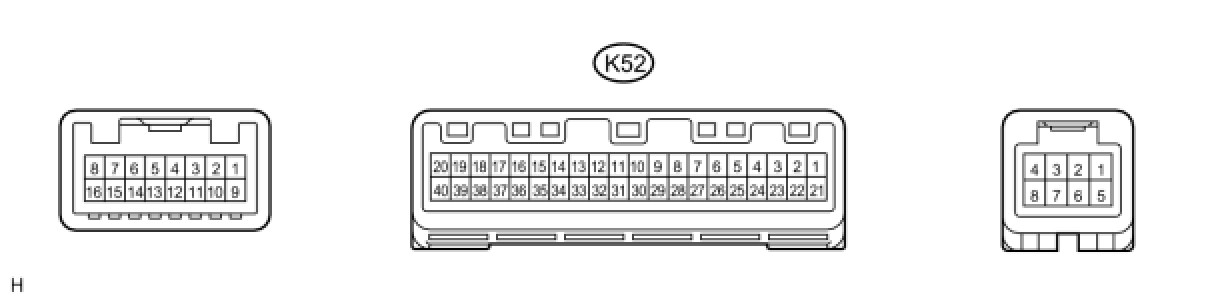

(a) Disconnect the K52 A/C amplifier assembly connector.





(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT: Measure the values on the wire harness side with the connector disconnected.

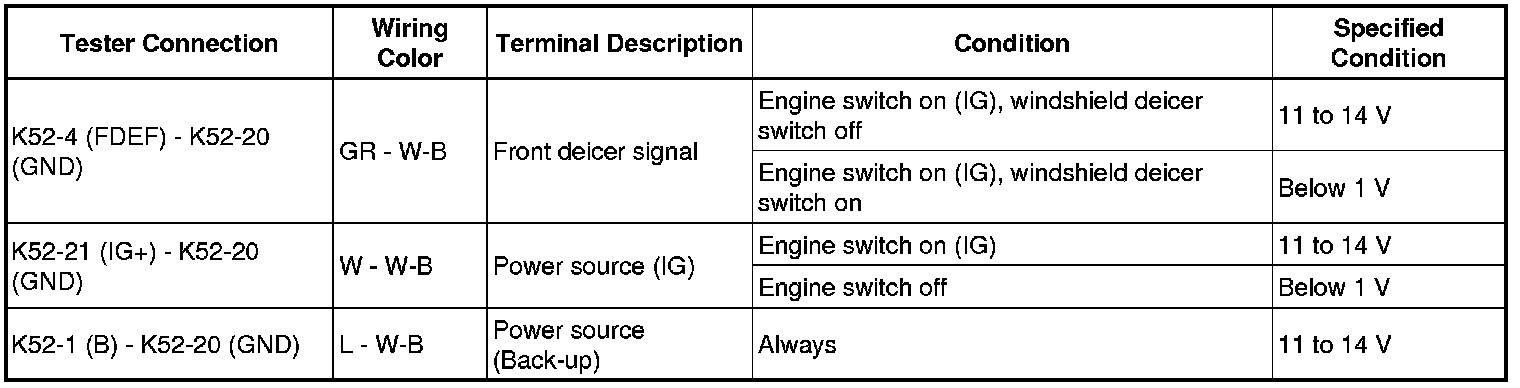

Standard voltage





Standard resistance





If the result is not as specified, there may be a malfunction in the wire harness or amplifier.
