Windshield Deicer System

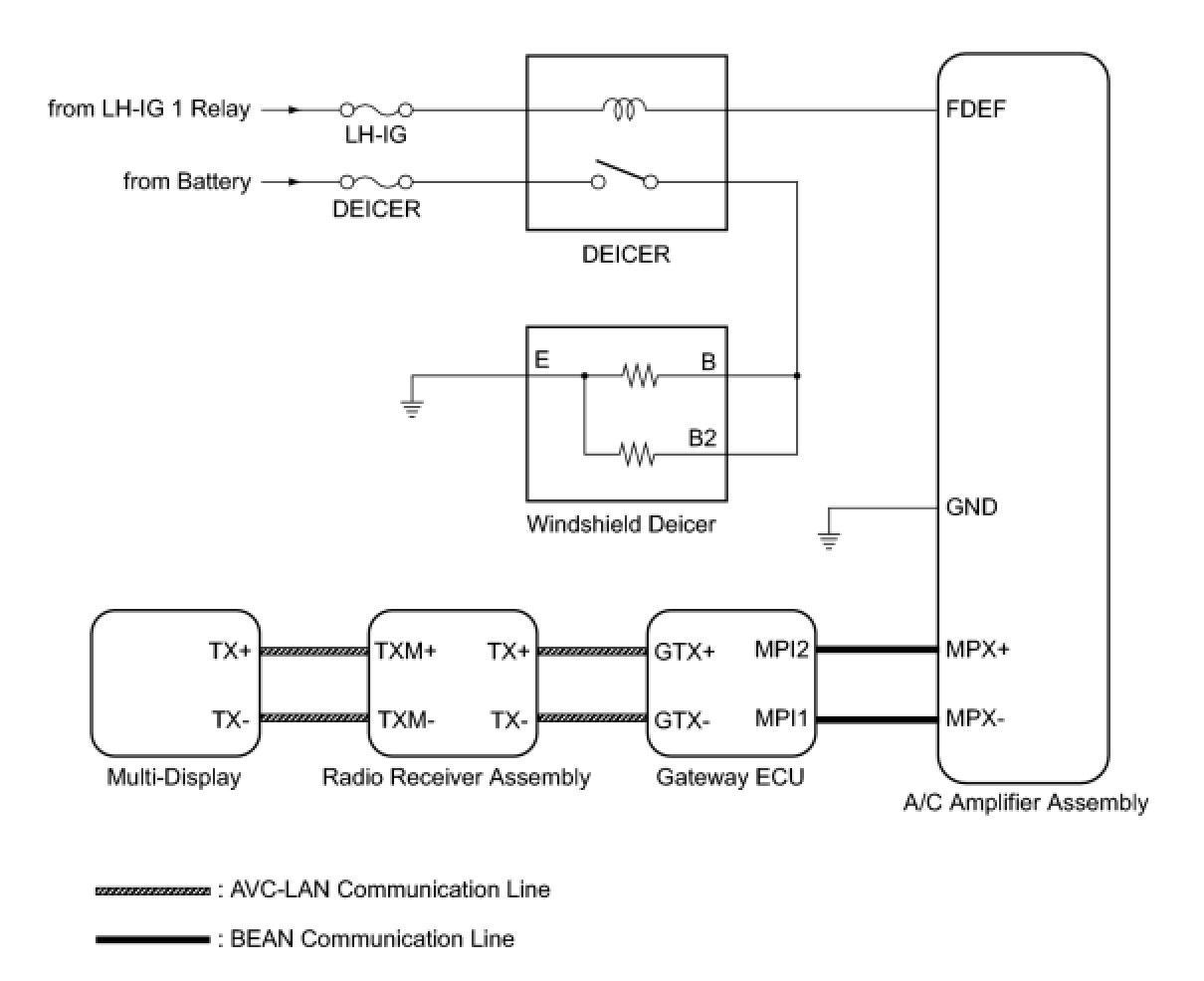

WINDSHIELD / WINDOWGLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM





WINDSHIELD / WINDOWGLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL
The thin heater wires of the windshield deicer system are attached to the inside of the windshield and deice the window surface quickly. The system automatically turns off after approximately 15 minutes.

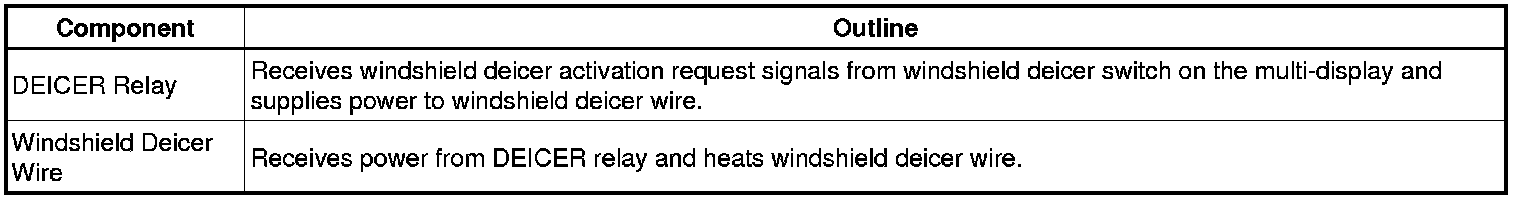

2. FUNCTION OF MAIN COMPONENT
