Removal

A760E AUTOMATIC TRANSMISSION: SPEED SENSOR: REMOVAL

REMOVAL

1. REMOVE NO. 2 ENGINE UNDER COVER

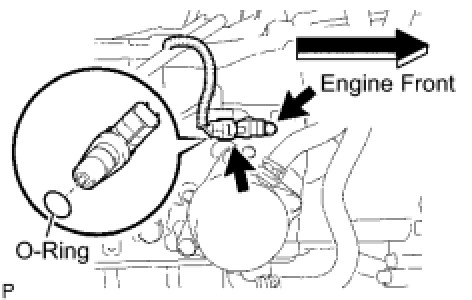

2. REMOVE SPEED SENSOR (NT)





(a) Disconnect the sensor connector.
(b) Remove the bolt and speed sensor.
(c) Remove the O-ring from the speed sensor.

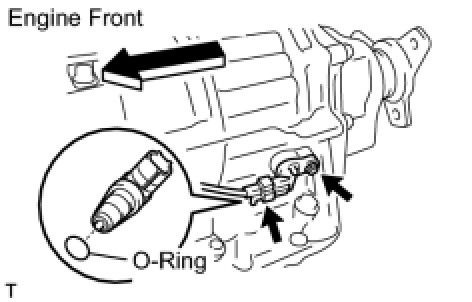

3. REMOVE SPEED SENSOR (SP2)





(a) Disconnect the speed sensor connector.
(b) Remove the bolt and speed sensor.
(c) Remove the O-ring from the speed sensor.
