A760E Automatic Transmission System

A760E AUTOMATIC TRANSMISSION: ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM: PROBLEM SYMPTOMS TABLE

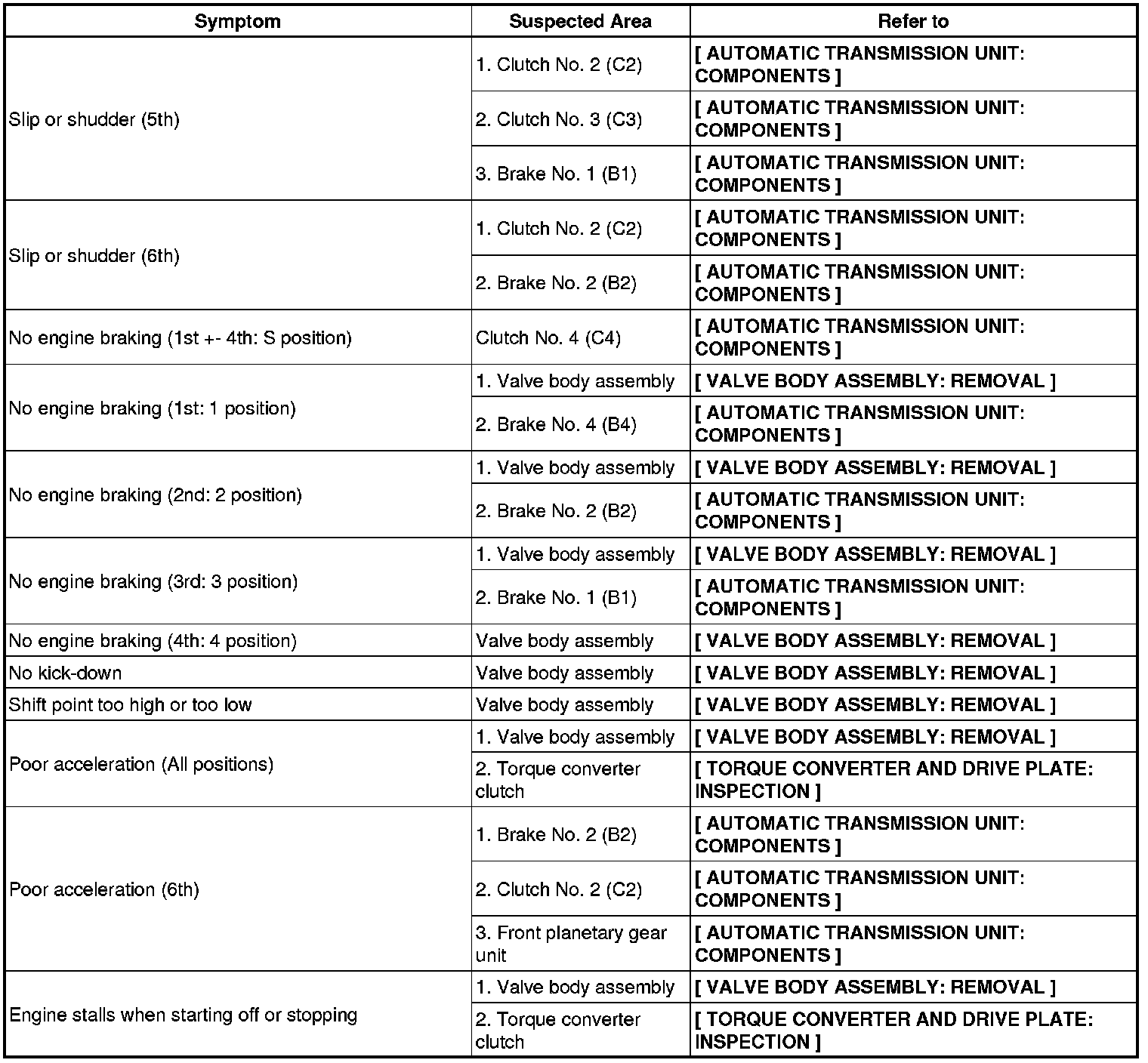

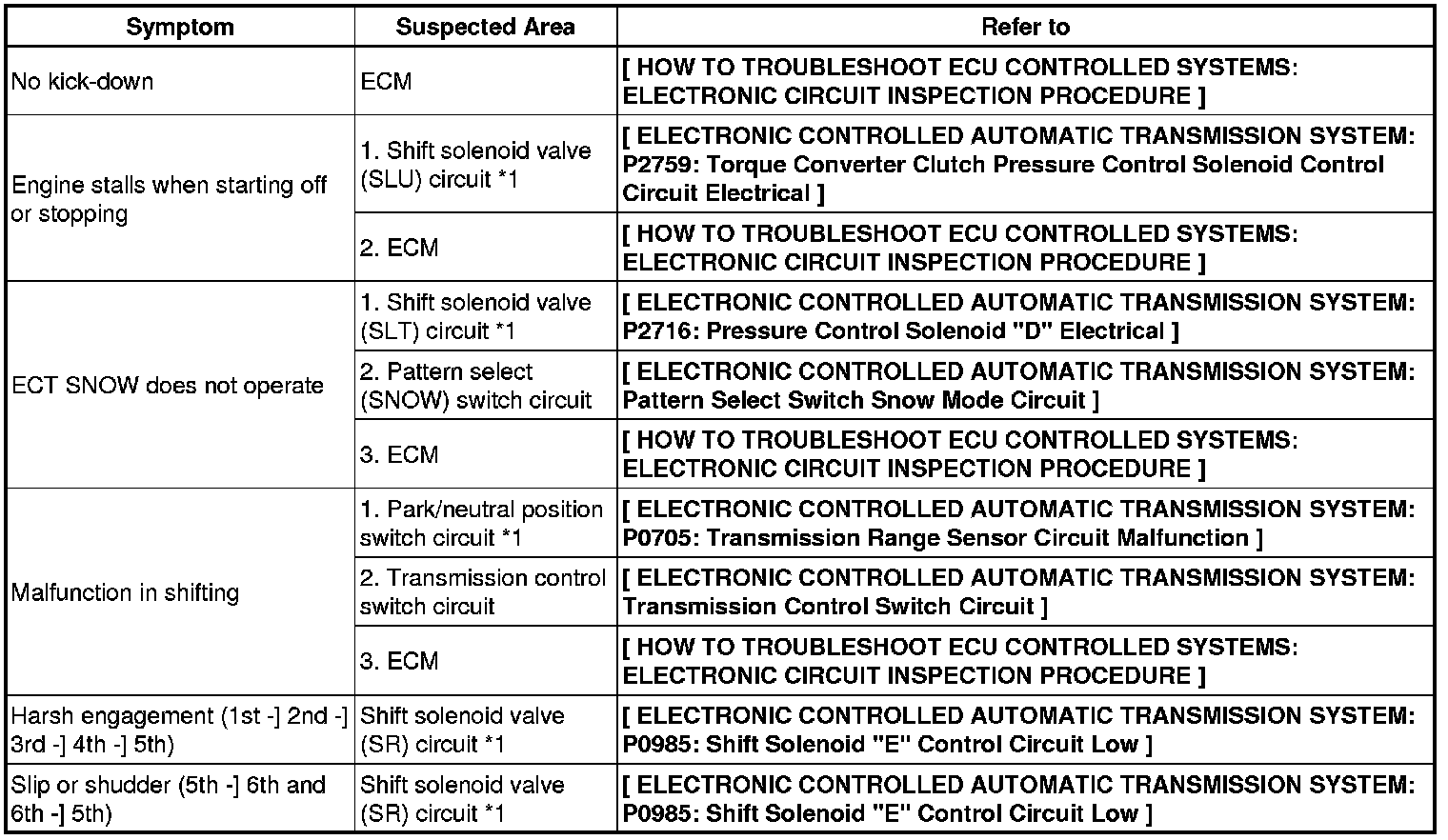

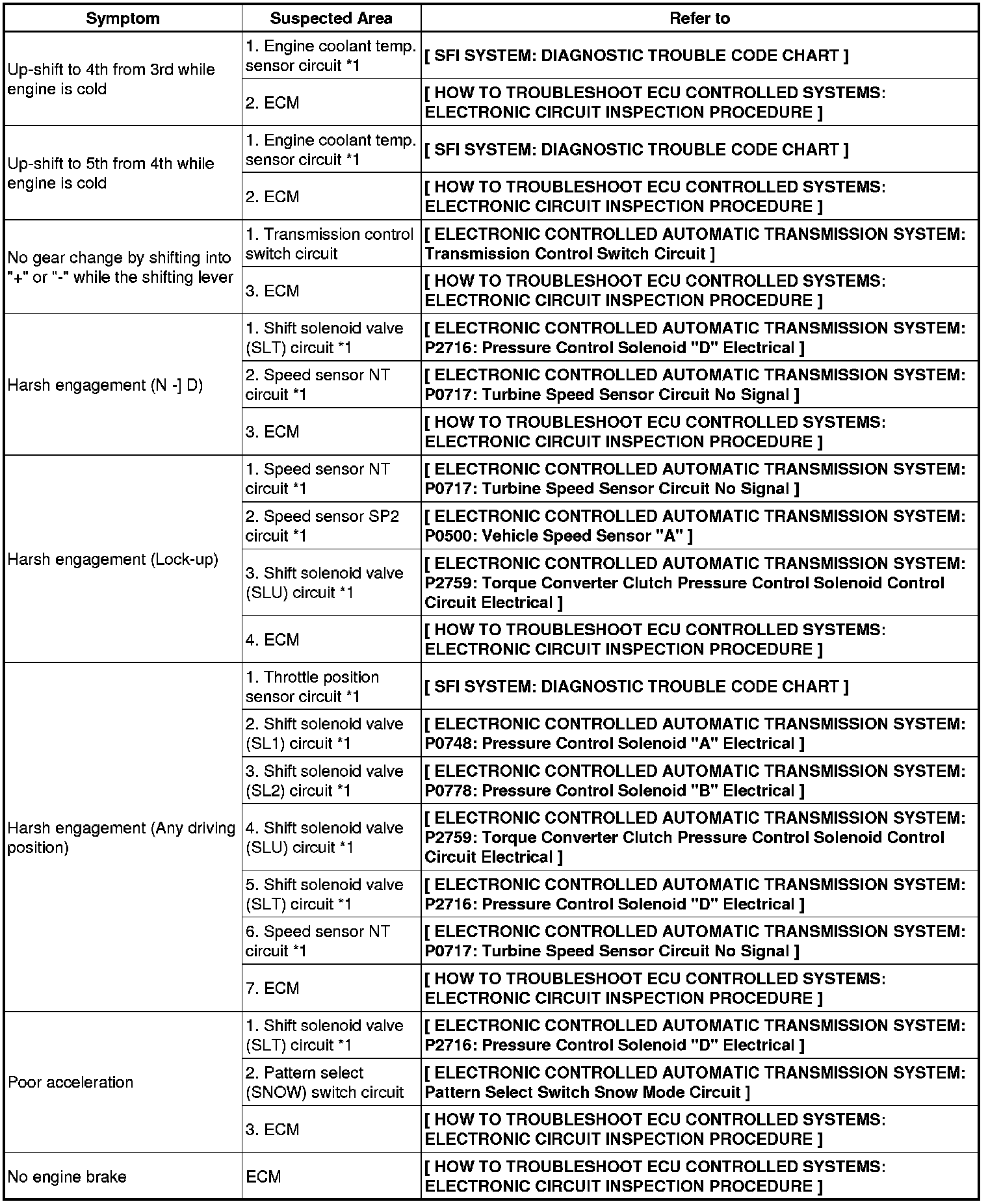

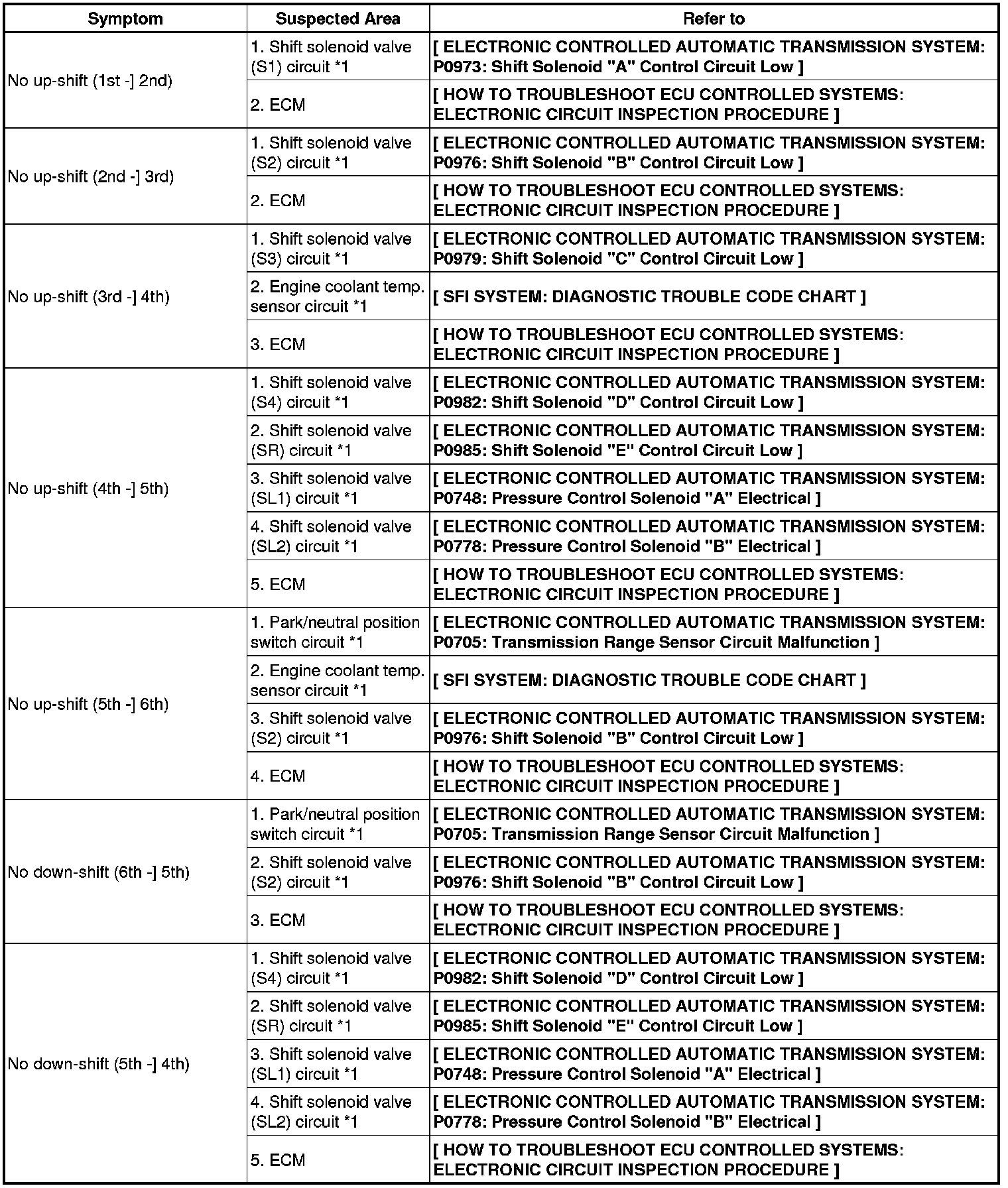

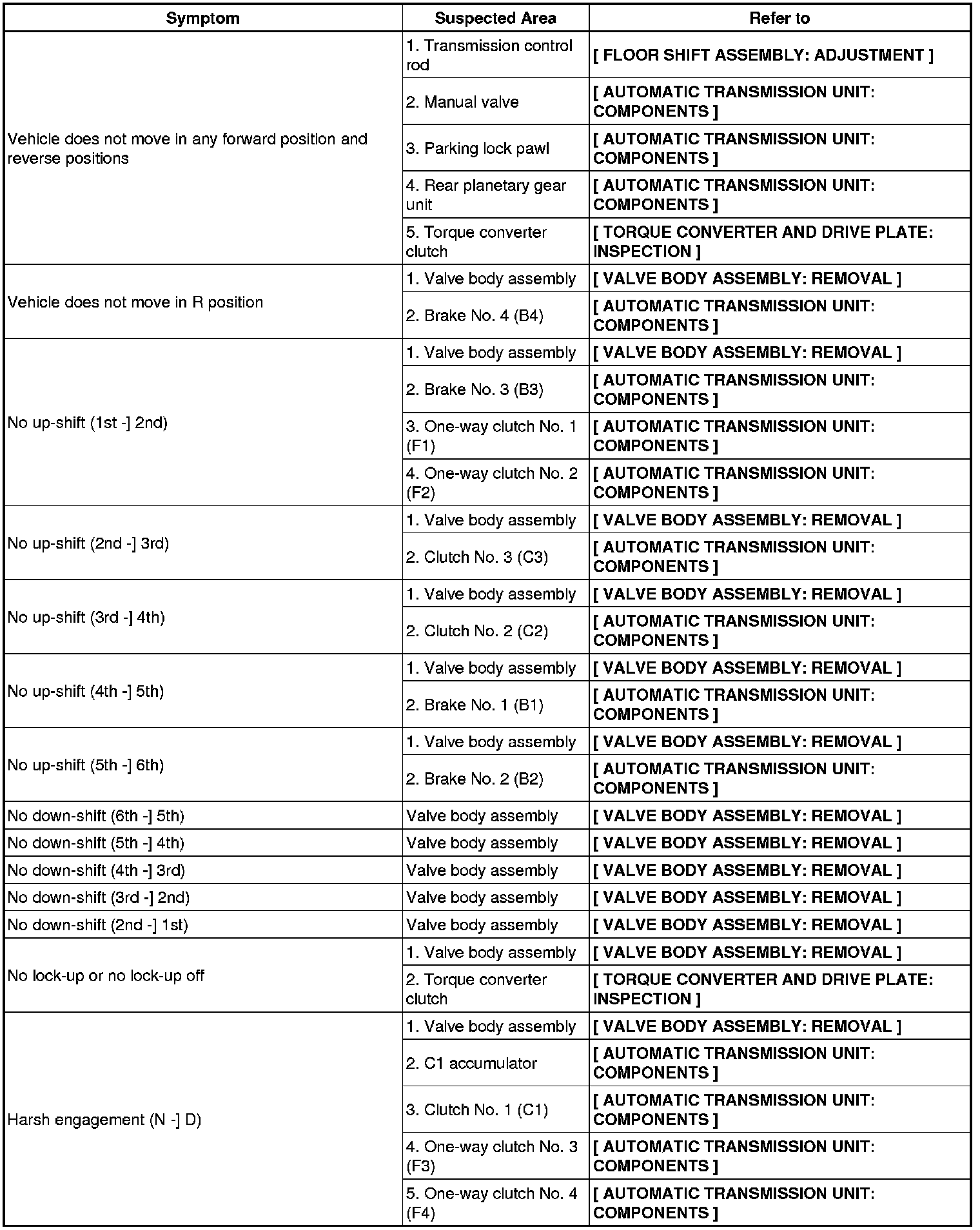

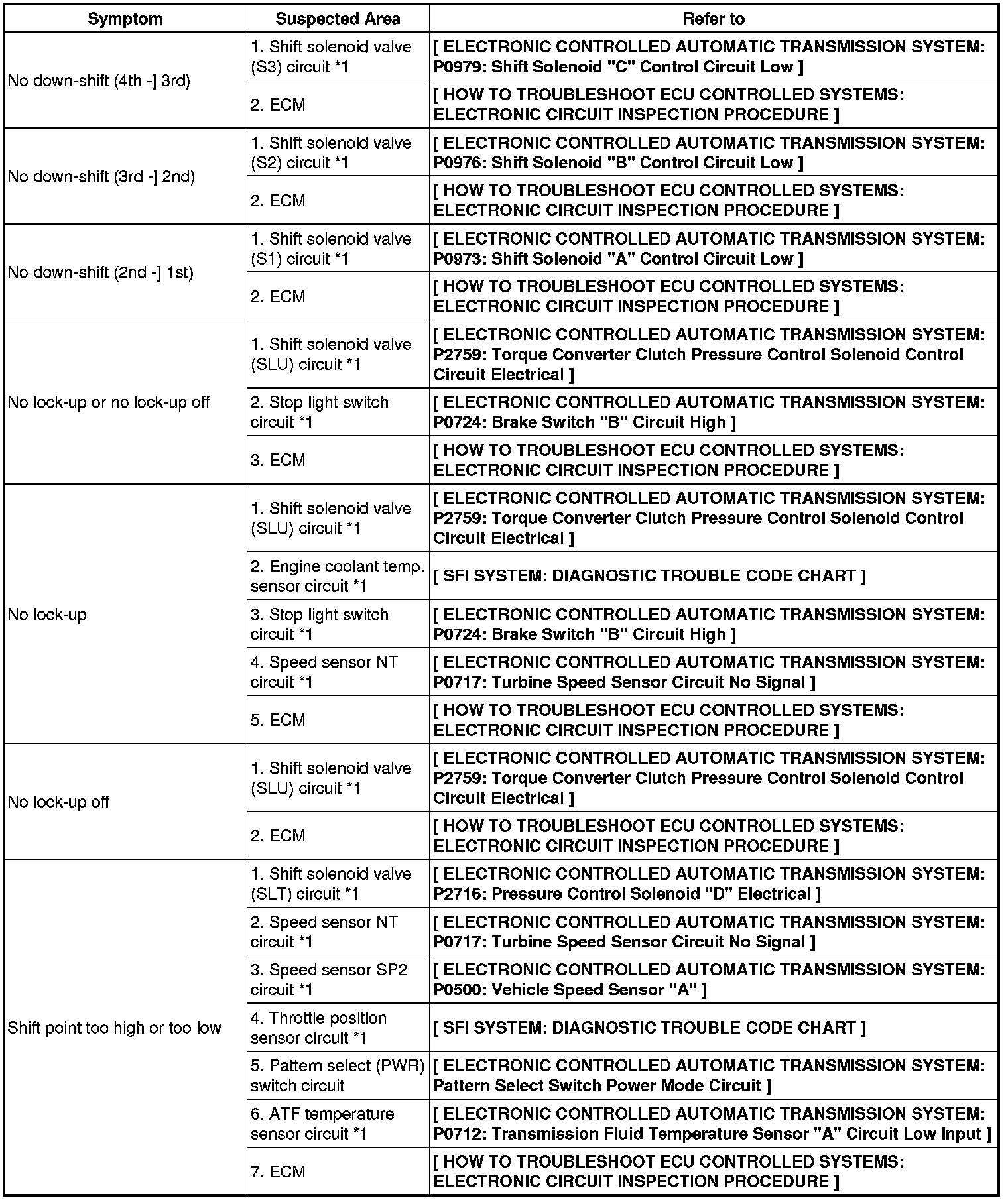

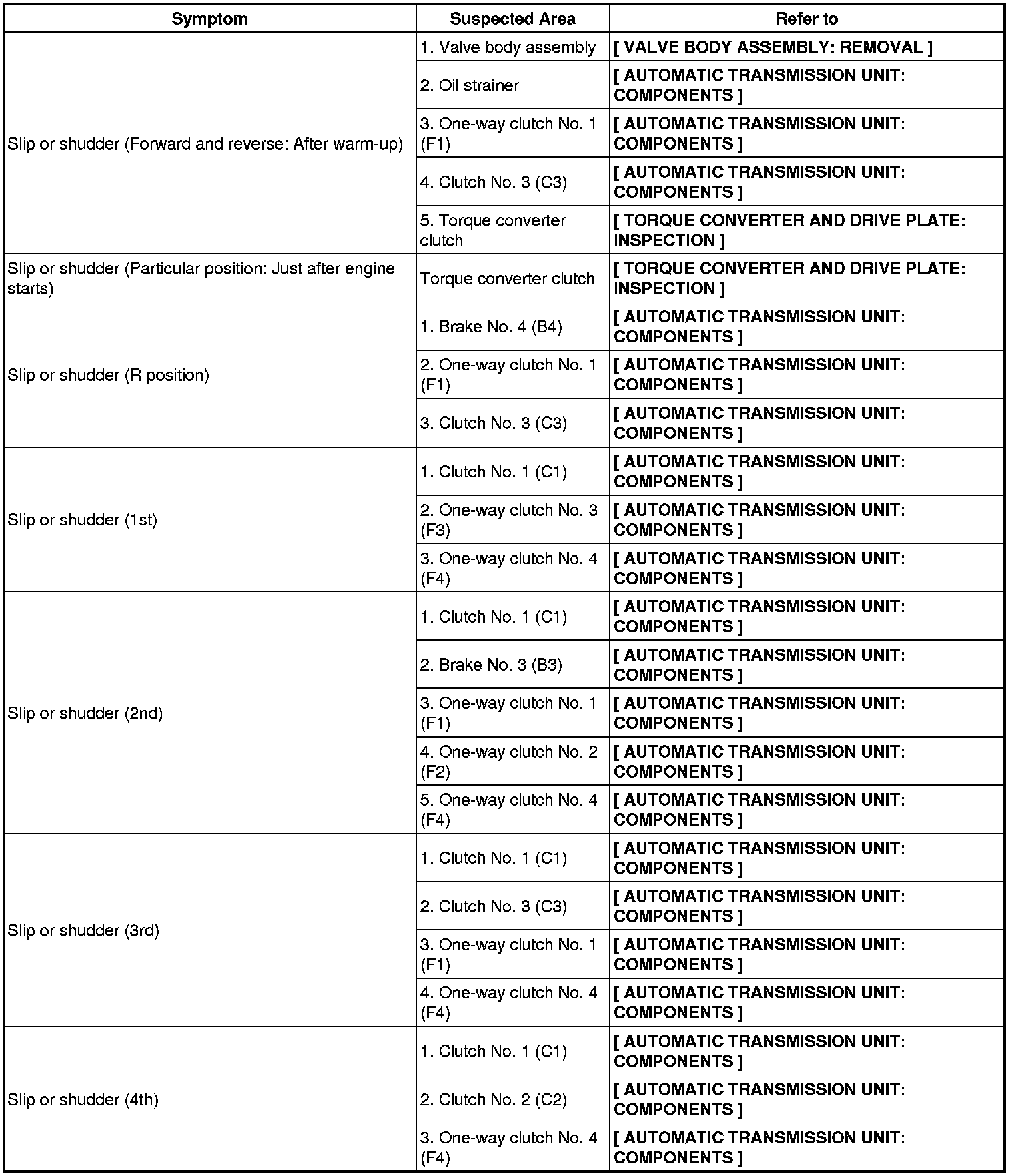

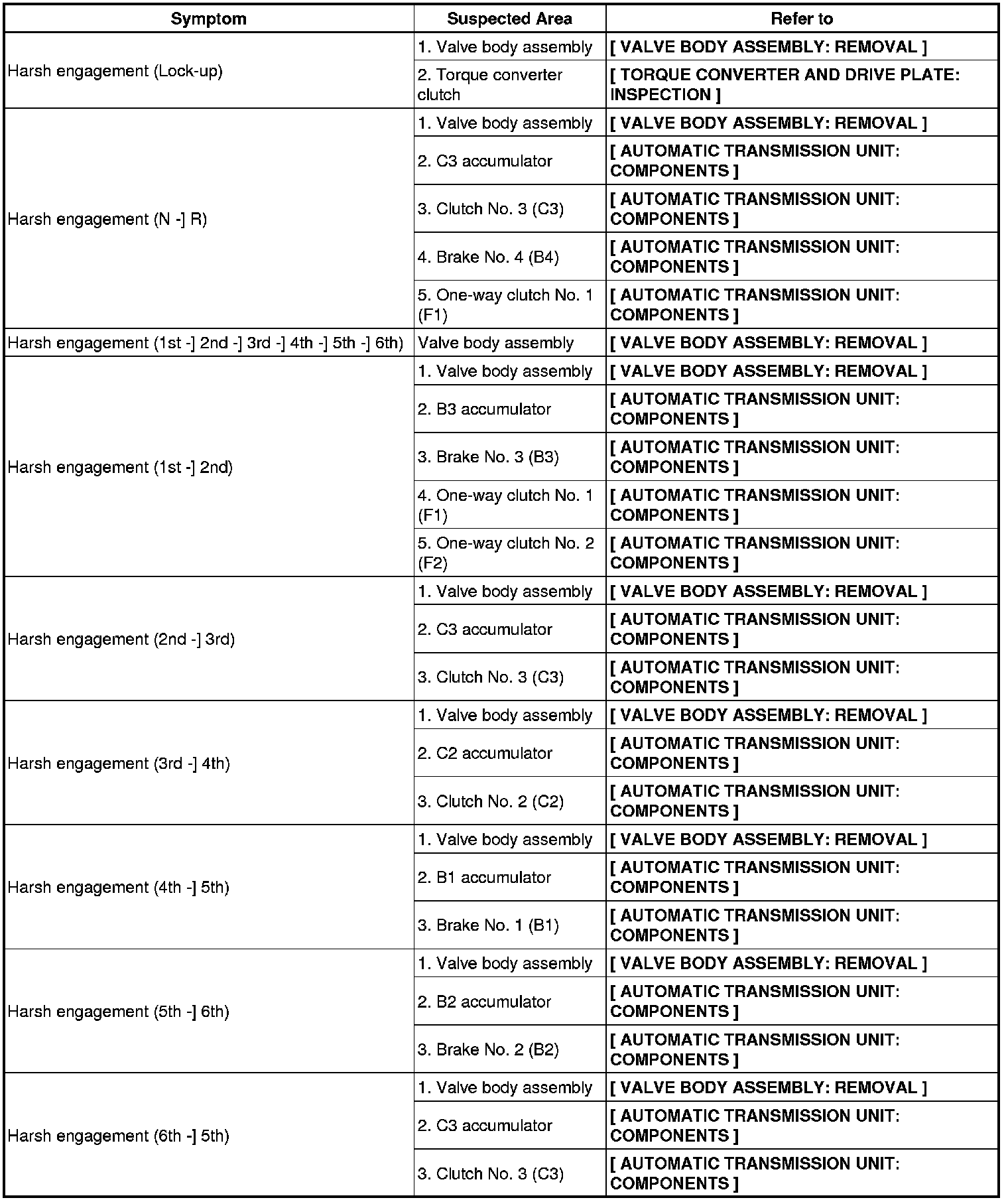

PROBLEM SYMPTOMS TABLE
HINT:
- If a normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts below.
- The Matrix Chart is divided into 2 chapters.
- Refer to the table below when the trouble cause is considered to be electrical.
- If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flowchart of each circuit, proceed to the circuit with the next highest number in the table to continue the check.
- If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the ECM.
- *1: When the circuit is defective, a DTC may be output.

1. Chapter 1: Electronic Circuit Matrix Chart

















Chapter 2: On-Vehicle Repair and Off-Vehicle Repair
