A760H Automatic Transmission System

A760H AUTOMATIC TRANSMISSION: ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM: TERMINALS OF ECM

TERMINALS OF ECM

1. ECM

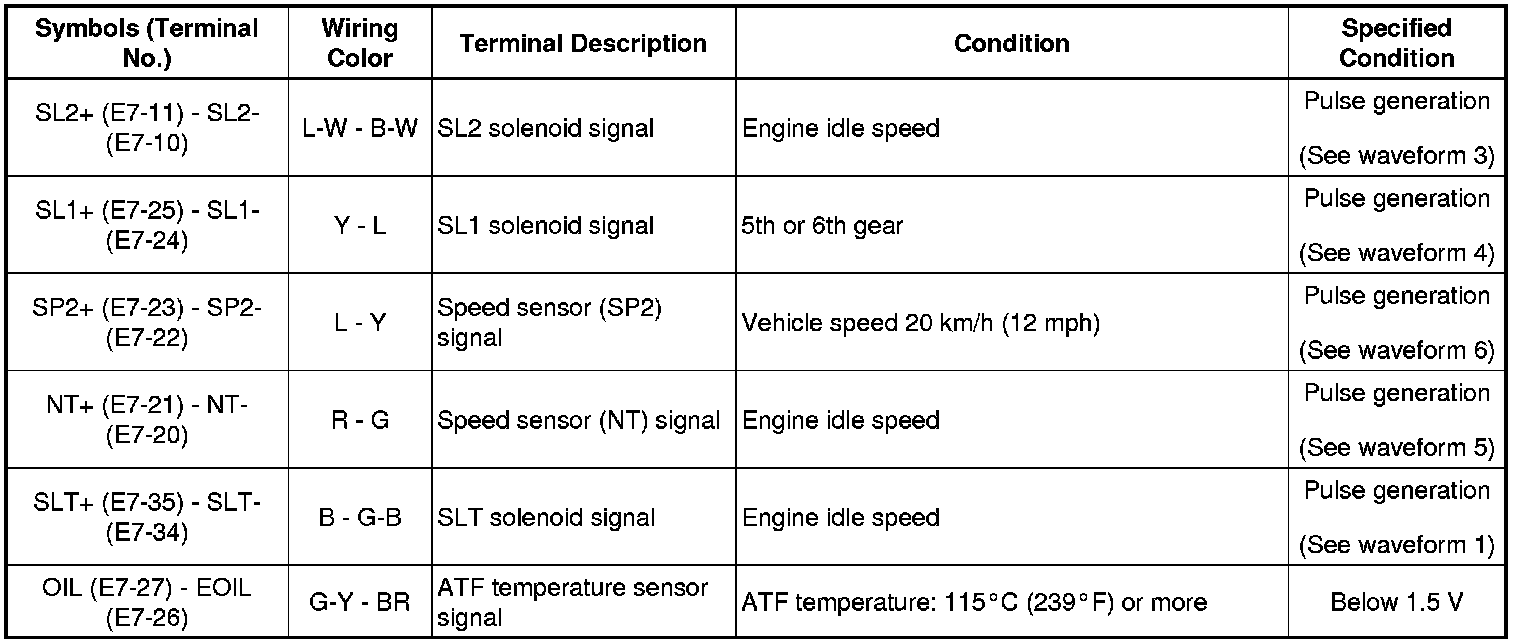

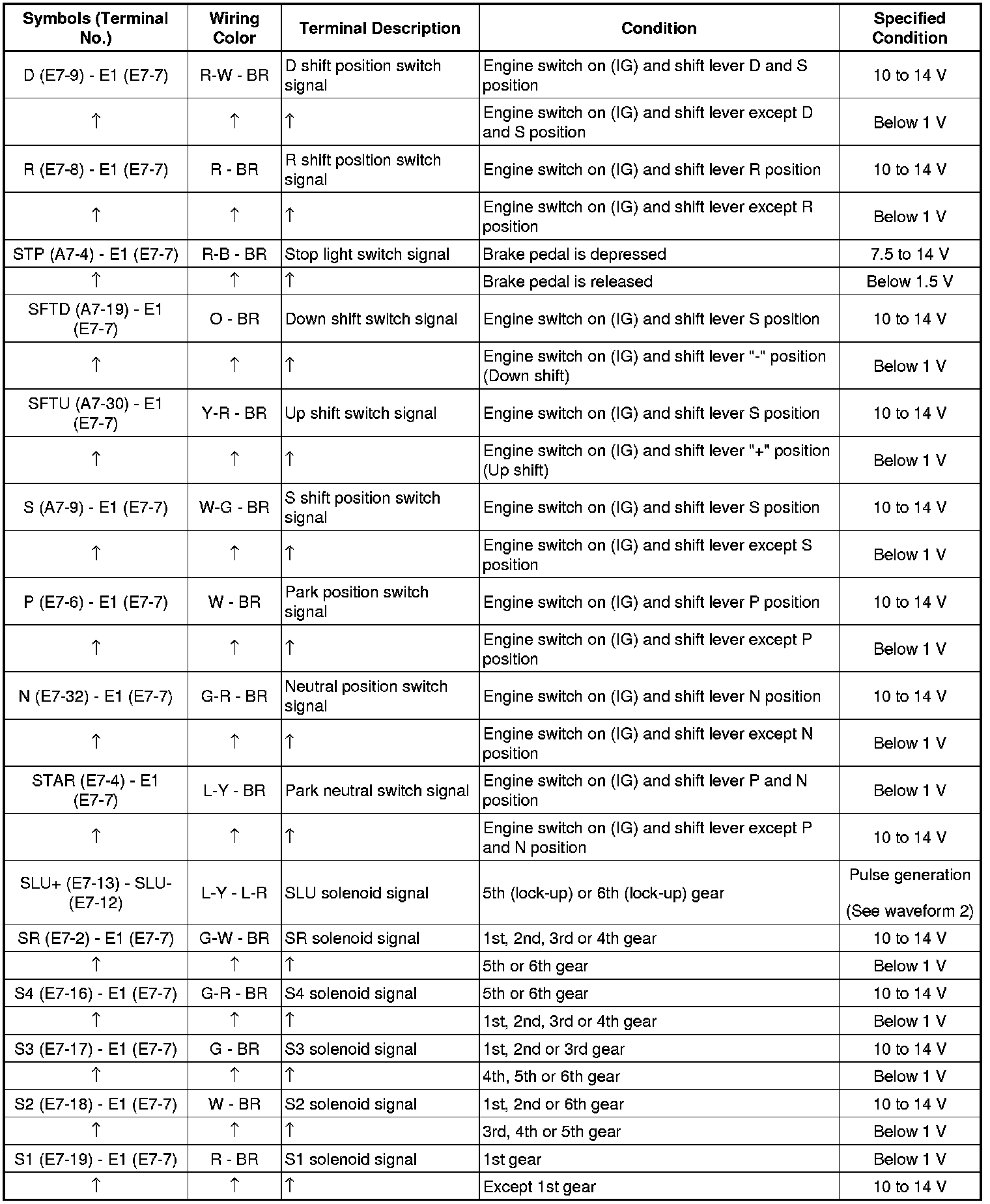

HINT: Each ECM terminal's standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition".
Use the illustration above as a reference for the ECM terminals.

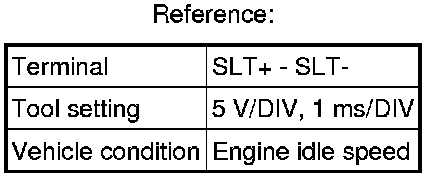

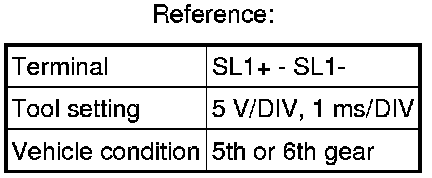

(a) Waveform 1

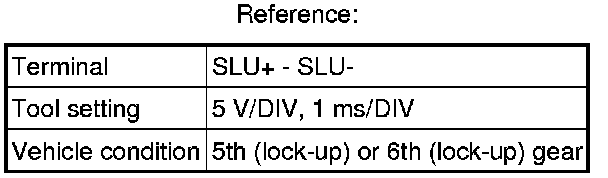

(b) Waveform 2

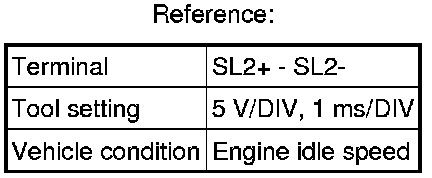

(c) Waveform 3










(d) Waveform 4

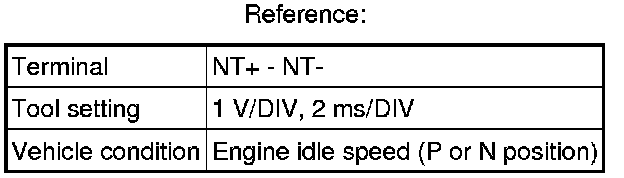

(e) Waveform 5

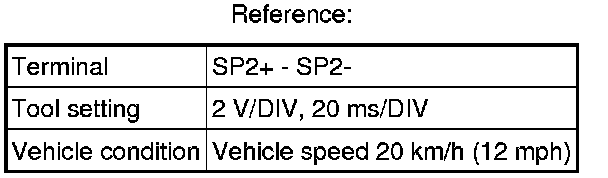

(f) Waveform 6






2. COWL SIDE J/B RH ECU (MAIN BODY ECU)

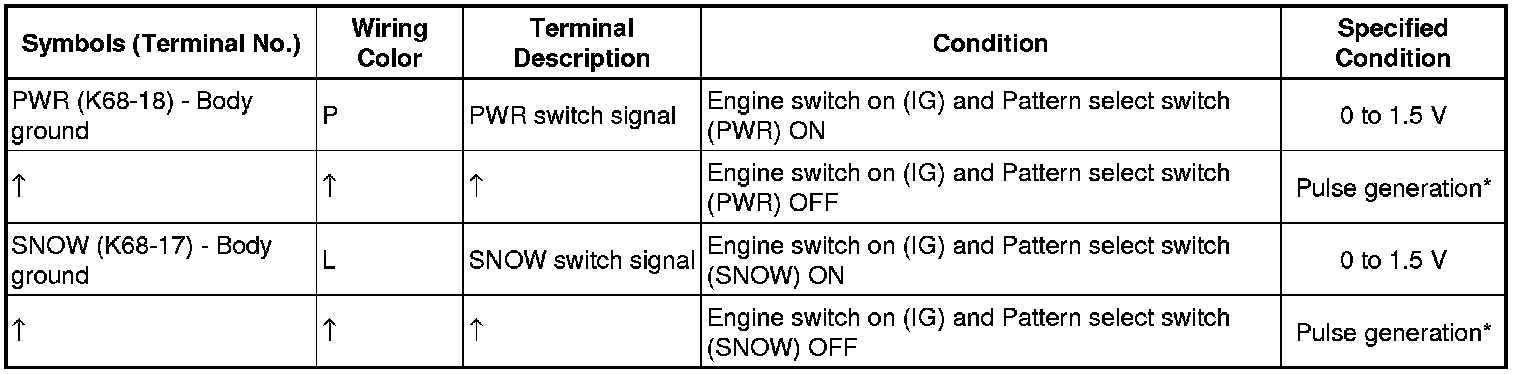

HINT: Each ECU terminal's standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition".
Use the illustration above as a reference for the ECU terminals.





HINT: *: Voltage is input intermittently as this is an intermittent circuit. (Voltage varies between a peak of 7.5 to 14 V and a low of 0 to 1.5 V.)
