Home >> Lexus >> 2009 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> A760H Automatic Transmission System >> Definition of Terms

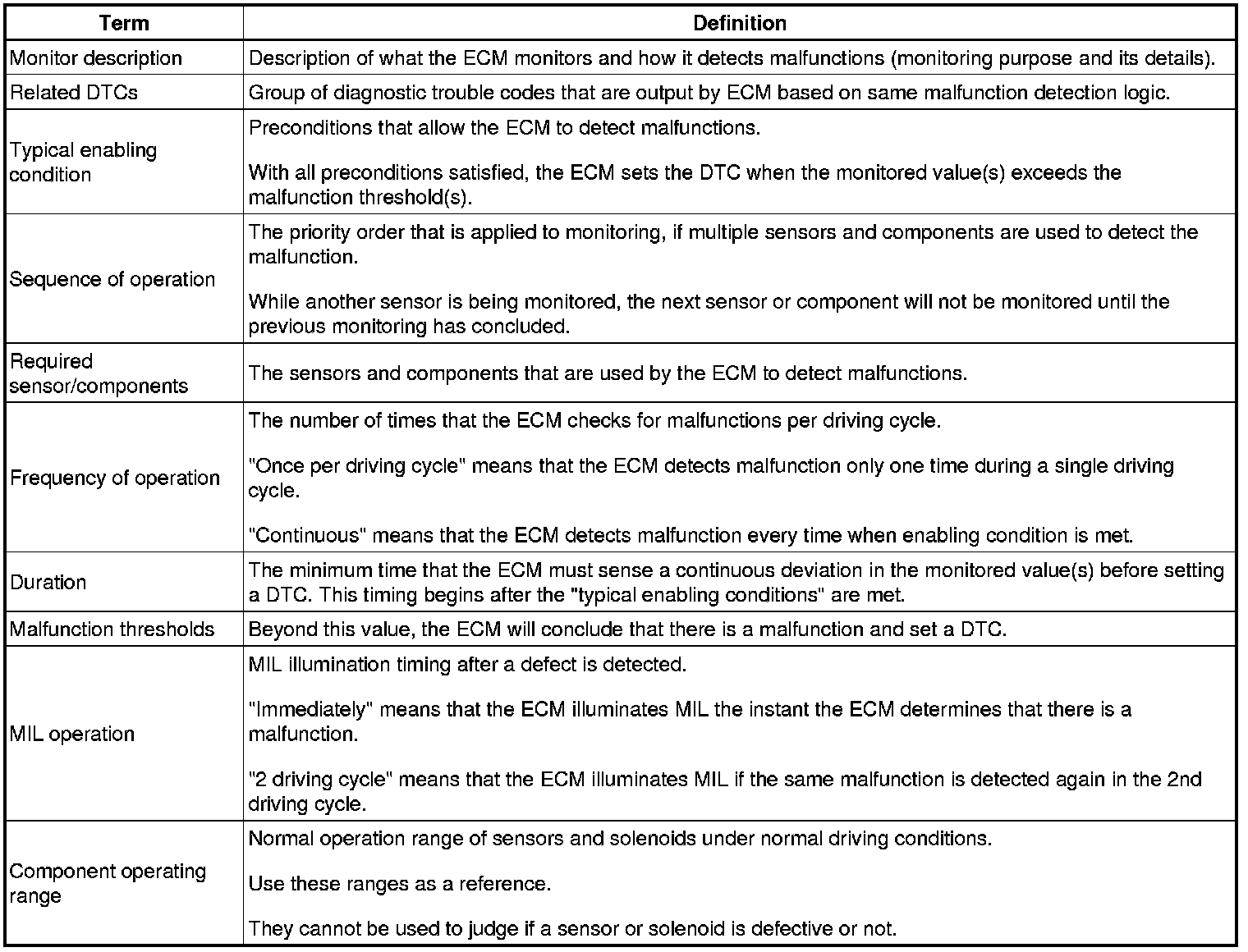

Definition of Terms

A760H AUTOMATIC TRANSMISSION: ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM: DEFINITION OF TERMS

DEFINITION OF TERMS
