Kick Down Switch Circuit

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: Kick Down Switch Circuit

Kick Down Switch Circuit

DESCRIPTION

The kick-down switch is turned ON when the accelerator pedal is fully depressed and a signal is sent to the ECM.
When the kick-down switch is turned ON, the ECM controls gear shifting according to the programmed shift diagrams.
If a short circuit develops in the kick-down switch, the ECM disregards the kick-down signals and controls shifting at the normal shift points.

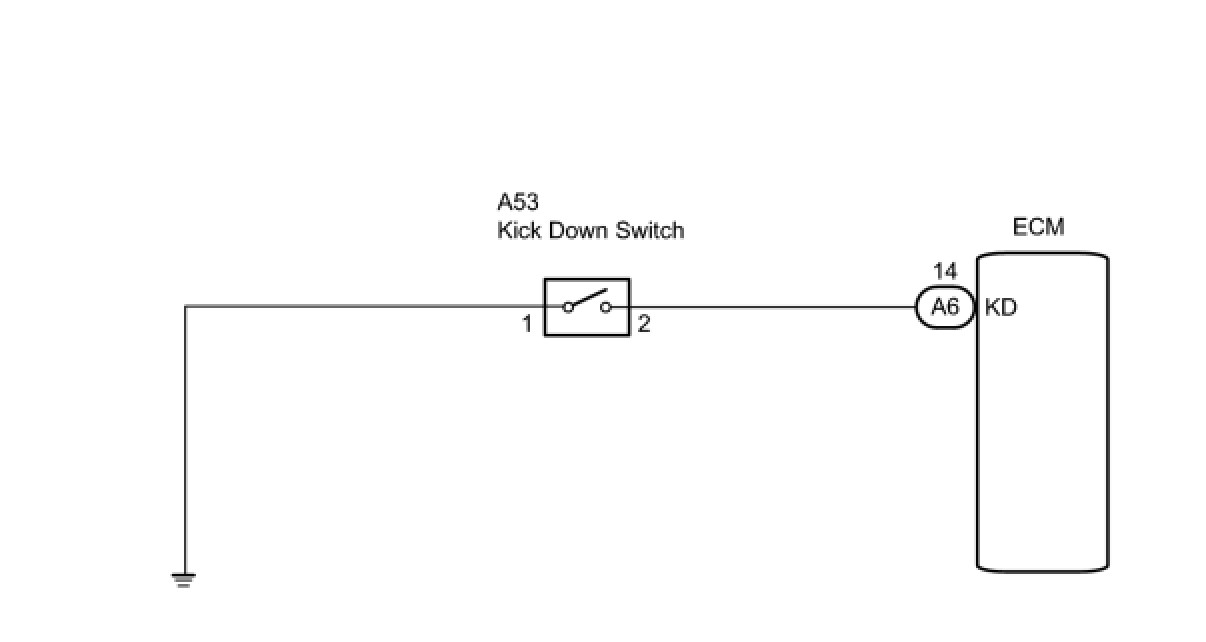

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

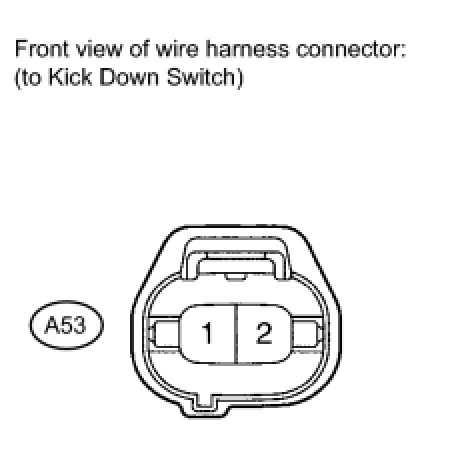

1. CHECK HARNESS AND CONNECTOR (KICK DOWN SWITCH - BODY GROUND)
(a) Disconnect the kick-down switch connector.




(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

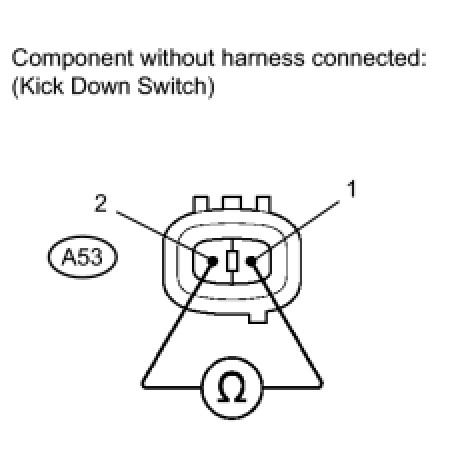

2. INSPECT KICK DOWN SWITCH ASSEMBLY

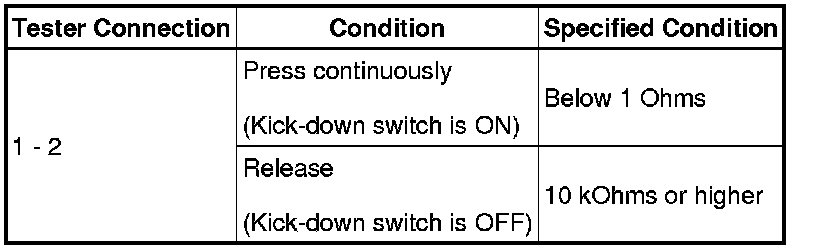

(a) Measure resistance according to the value(s) in the table below when kick-down switch is ON and OFF.
Standard resistance:






NG -- REPLACE KICK DOWN SWITCH ASSEMBLY
OK -- Continue to next step.

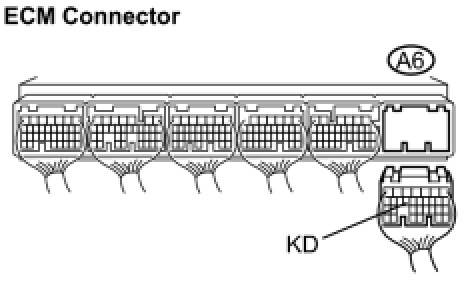

3. CHECK HARNESS AND CONNECTOR (KICK DOWN SWITCH - ECM)




(a) Connect the kick-down switch connector.
(b) Disconnect the ECM connector.

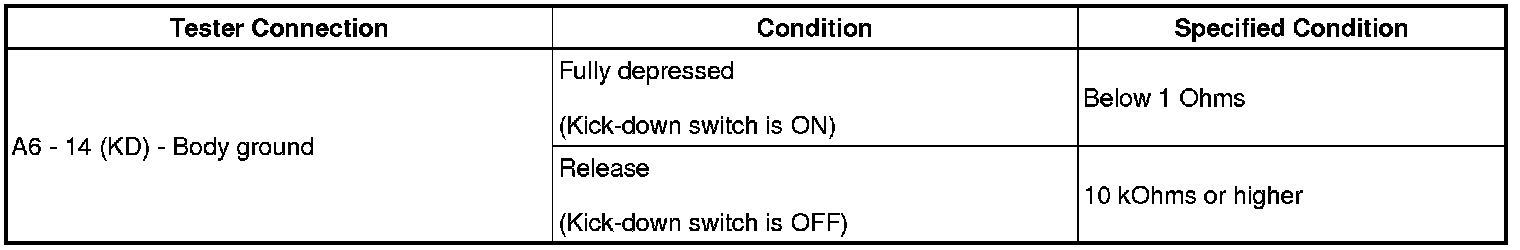

(c) Measure resistance according to the value(s) in the table below when accelerator pedal is fully depressed or not.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
