A760E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

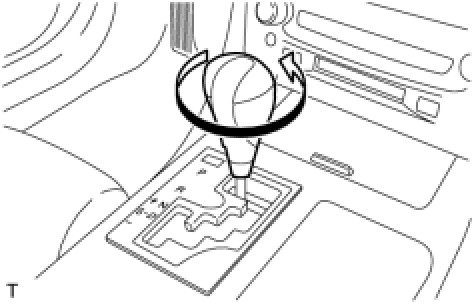

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
3. REMOVE FRONT CONSOLE UPPER PANEL GARNISH Removal
4. REMOVE CONSOLE UPPER PANEL ASSEMBLY Removal
5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
6. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
7. REMOVE CONSOLE BOX PLATE Removal
8. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal
9. REMOVE CONSOLE BOX Removal
10. REMOVE NO. 2 CONSOLE BOX DUCT Removal
11. REMOVE ENGINE NO. 2 UNDER COVER
12. REMOVE FRONT EXHAUST PIPE ASSEMBLY
(a) Remove the front exhaust pipe Removal.
13. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR Removal
14. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
(a) Move the shift lever to the N position.

(b) Remove the nut and disconnect the floor shift gear shifting rod.

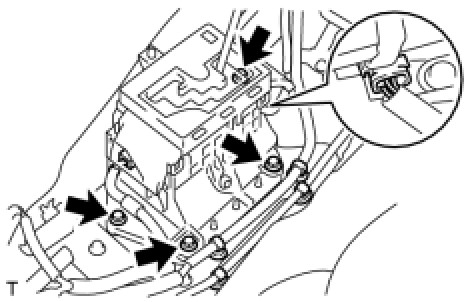

15. REMOVE FLOOR SHIFT ASSEMBLY
(a) Disconnect the 2 connectors.
(b) Disconnect the 6 clamps.
