AA80E Automatic Transmission

AA80E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: ADJUSTMENT

ADJUSTMENT

1. ADJUST SHIFT LEVER POSITION

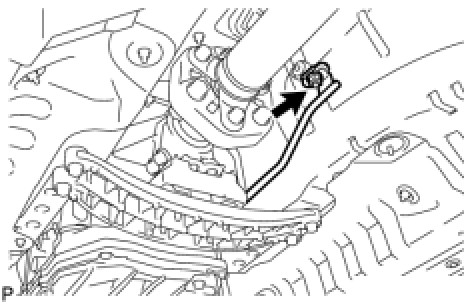

(a) Remove the nut and disconnect the shifting rod.





(b) Turn the control shaft lever of the park/neutral position switch counterclockwise until it stops, and turn it clockwise 2 notches to set it to the N position.
(c) Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the R position.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)
NOTE:
Do not push the shift lever too hard.

(d) Check that the shift lever moves smoothly and the shift lever and gear operate correctly.
