A760E AUTOMATIC TRANSMISSION: OIL PUMP: DISASSEMBLY

DISASSEMBLY

1. REMOVE FRONT OIL PUMP BODY O-RING





(a) Remove the O-ring from the oil pump.
2. FIX OIL PUMP ASSEMBLY

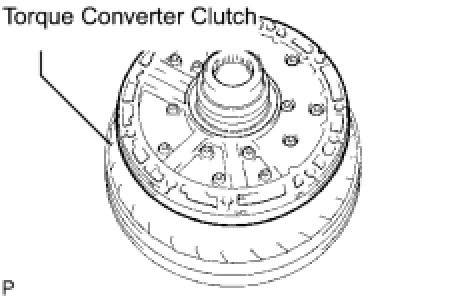

(a) Place the oil pump body on the torque converter clutch.
3. REMOVE CLUTCH DRUM OIL SEAL RING





(a) Remove the 3 oil seal rings.
4. REMOVE STATOR SHAFT ASSEMBLY





(a) Remove the 14 bolts and the stator shaft from the oil pump body.
5. REMOVE FRONT OIL PUMP BODY O-RING





(a) Remove the O-ring from the oil pump body.
(b) Remove the oil pump body from the torque converter clutch.
6. INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY Oil Pump
7. INSPECT STATOR SHAFT ASSEMBLY Oil Pump
8. INSPECT CLEARANCE OF OIL PUMP ASSEMBLY Oil Pump
9. REMOVE FRONT OIL PUMP DRIVE GEAR





(a) Remove the front oil pump drive gear.
10. REMOVE FRONT OIL PUMP DRIVEN GEAR





(a) Remove the front oil pump driven gear.
11. REMOVE FRONT OIL PUMP OIL SEAL

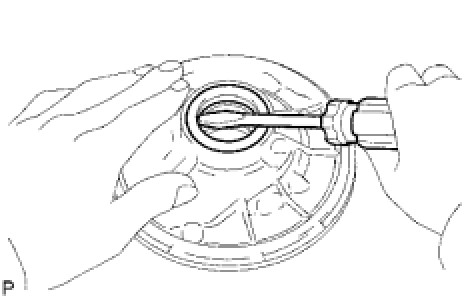

(a) Using a screwdriver, pry out the oil seal.
NOTE:
Do not damage the bushing and the oil pump body.
