AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION REAR OIL SEAL: REPLACEMENT

REPLACEMENT

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal
2. REMOVE REAR NO. 1 FLOOR PANEL BRACE Removal
3. REMOVE FRONT CENTER FLOOR BRACE Removal
4. REMOVE FRONT FLOOR COVER CENTER LH
5. REMOVE FRONT FLOOR COVER CENTER RH
6. CONNECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2) Removal
7. CONNECT HEATED OXYGEN SENSOR (for Bank 2 Sensor 2) Removal
8. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal
9. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR Removal
10. REMOVE AIR GUIDE PLATE OUTSIDE RH Removal
11. REMOVE REAR PROPELLER SHAFT ASSEMBLY Removal
12. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

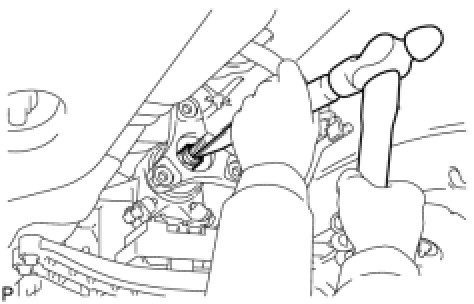

(a) Using SST and a hammer, loosen the staked part of the nut.
SST: 09930-00010
- Set SST onto the groove with the flat surface facing upward.
- Do not grind the tip of SST with a grinder or other similar tool.
- Be sure to unstake the lock nut completely to remove it.
- Do not damage the threads of the output shaft.
HINT: Move the shift lever to P.

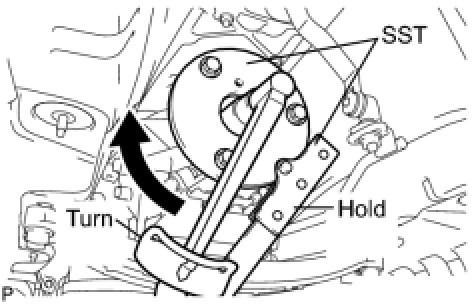

(b) Using SST and a 30 mm socket wrench, remove the nut.
SST: 09330-00021
SST: 09950-30012
09955-03040
HINT: Use an M8 x 1.25 bolt with an under head length of 45 mm to secure SST.

(c) Tap out the flange yoke with a plastic hammer to remove it.

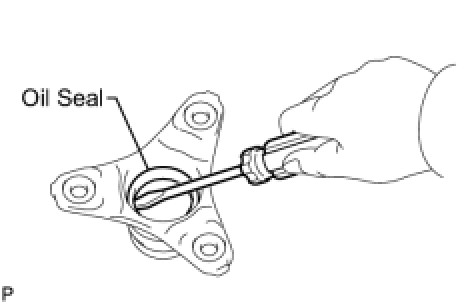

(d) Using a screwdriver, pry out the oil seal from the automatic transmission flange yoke.
13. REMOVE AUTOMATIC TRANSMISSION REAR OIL SEAL





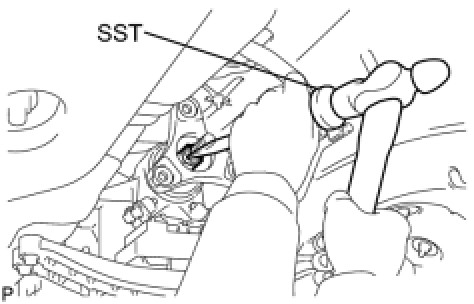

(a) Using SST, tap out the oil seal.
SST: 09308-00010
14. INSTALL AUTOMATIC TRANSMISSION REAR OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

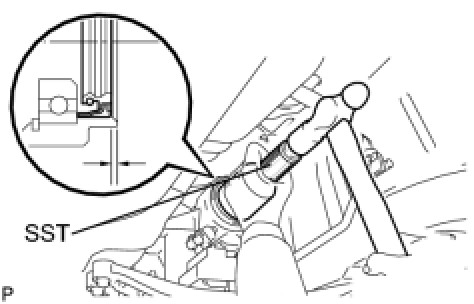

(b) Using SST and a hammer, tap in the oil seal.
SST: 09214-76011
Standard depth:
3.3 to 3.7 mm (0.130 to 0.146 in.)
15. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY





(a) Using SST and a hammer, tap in a new oil seal.
SST: 09950-60010
09951-00410
SST: 09950-70010
09951-07100
Standard depth:
0 to 0.3 mm (0 to 0.012 in.)
(b) Install the automatic transmission flange yoke.

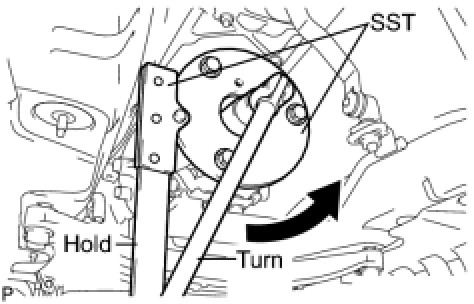

(c) Using SST and a 30 mm socket wrench, install and tighten a new nut.
SST: 09330-00021
SST: 09950-30012
09955-03040
Torque: 135 Nm (1376 kgf-cm, 99 ft-lbf)





(d) Using a chisel and hammer, securely stake the nut.
16. INSTALL REAR PROPELLER SHAFT ASSEMBLY Installation
17. FULLY TIGHTEN NO. 1 CENTER SUPPORT BEARING ASSEMBLY Installation
18. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE Installation
19. INSTALL AIR GUIDE PLATE OUTSIDE RH Installation
20. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR Installation
21. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation
22. CONNECT HEATED OXYGEN SENSOR (for Bank 2 Sensor 2) Installation
23. CONNECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2) Installation
24. INSTALL FRONT FLOOR COVER CENTER LH
25. INSTALL FRONT FLOOR COVER CENTER RH
26. INSTALL FRONT CENTER FLOOR BRACE Installation
27. INSTALL REAR NO. 1 FLOOR PANEL BRACE Installation
28. INSPECT FOR EXHAUST GAS LEAK
29. ADJUST AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid AA80E Automatic Transmission.
