Front Shock Absorber

SUSPENSION: FRONT SHOCK ABSORBER (for 2WD): INSPECTION

INSPECTION

1. INSPECT FRONT SHOCK ABSORBER

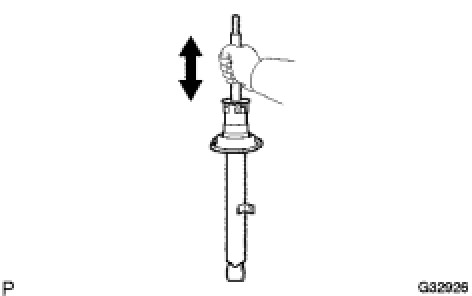

(a) Compress and extend the front shock absorber rod 4 or more times. Check that there is no abnormal resistance or sound.
If there is any abnormality, replace the front shock absorber with a new one.
NOTE:
When disposing of the front shock absorber, see DISPOSAL on page Disposal.





(b) Check that there is a difference in the damping force when the rod is positioned as shown (for AVS).
NOTE:
When disposing of the front shock absorber, see DISPOSAL on page Disposal.
