Electronic Power Steering System

POWER STEERING: ELECTRONIC POWER STEERING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

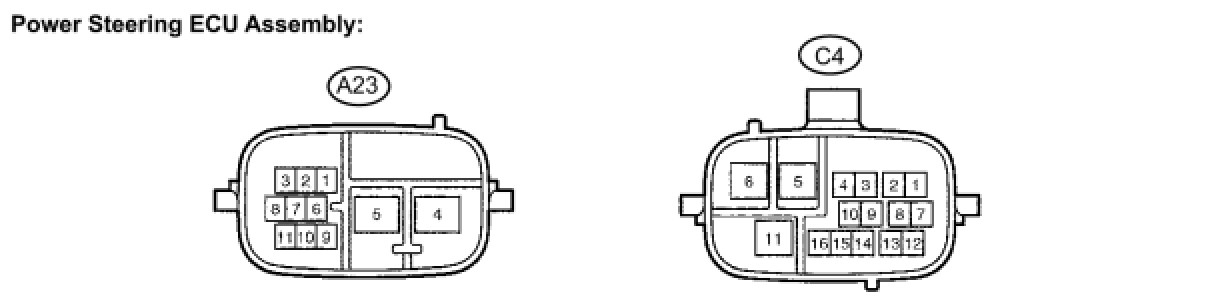

1. TERMINALS OF ECU




HINT: The power steering ECU assembly uses waterproof connectors. Therefore, voltage or waveforms cannot be checked with the connectors connected to the vehicle.





*1: 1UR-FSE

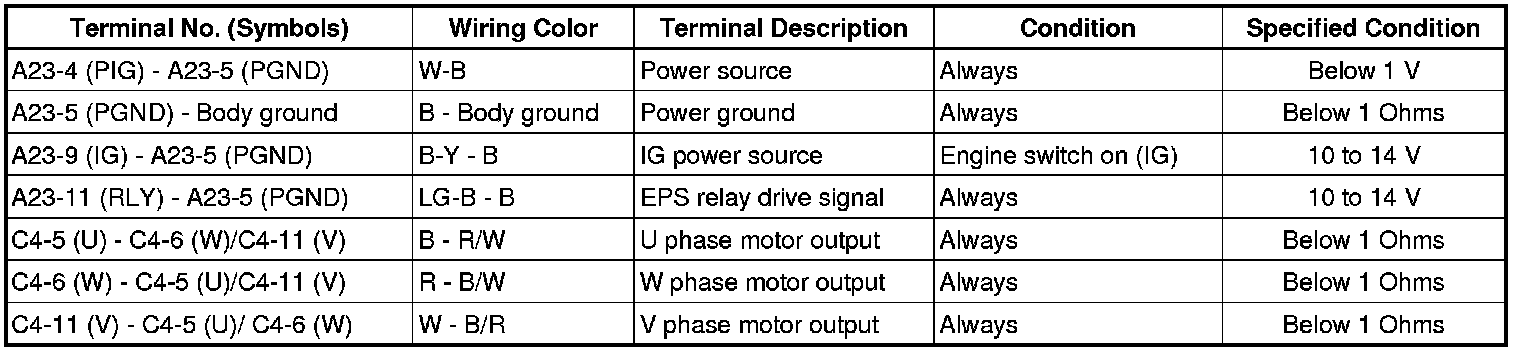

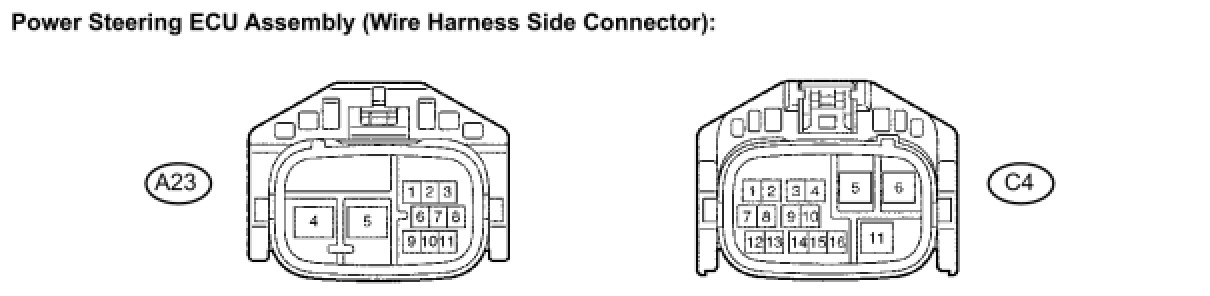

2. INSPECT WIRE HARNESS SIDE CONNECTOR
