Home >> Lexus >> 2009 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Service and Repair >> Removal and Replacement >> Components

Components

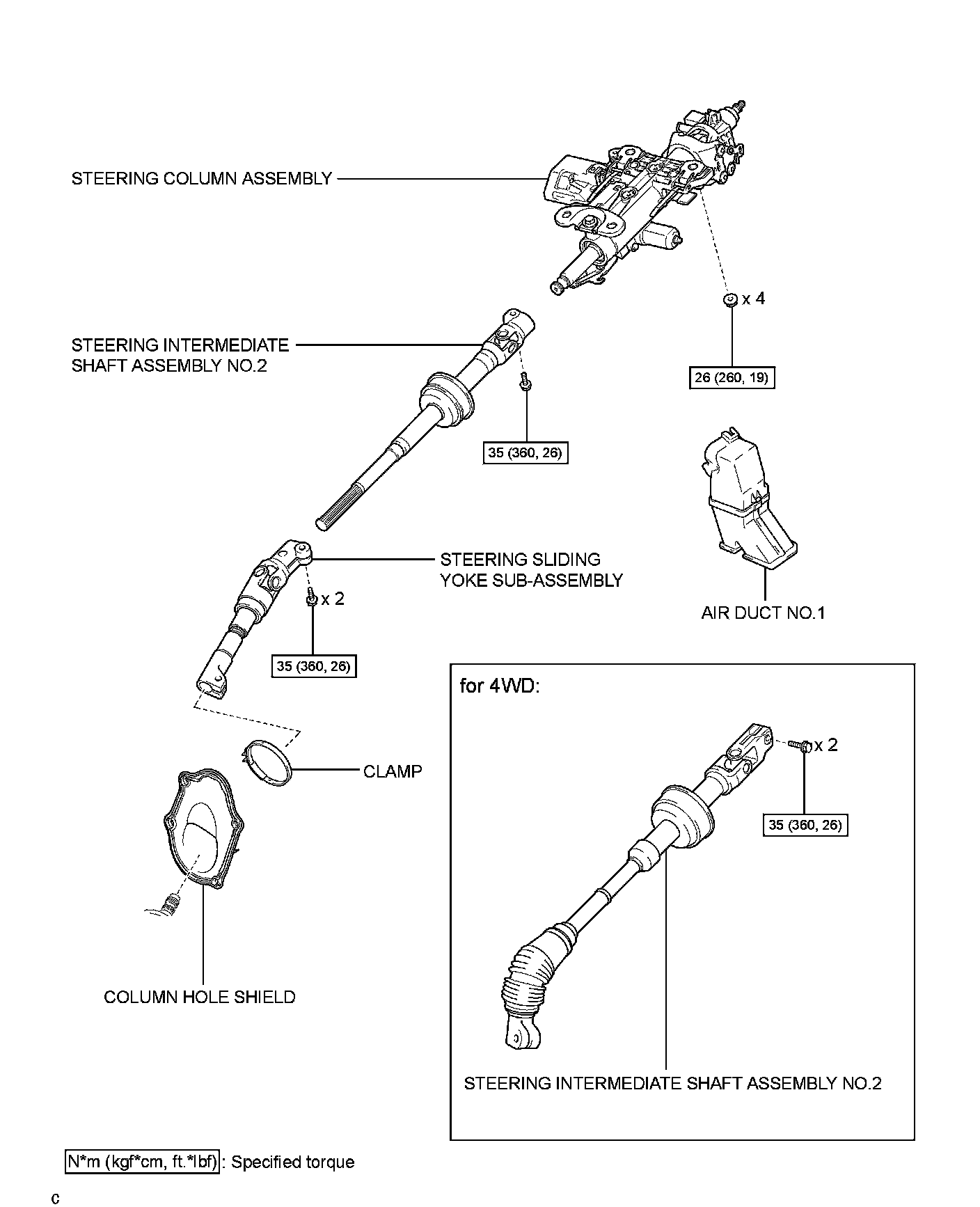

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for 2GR-FSE): COMPONENTS

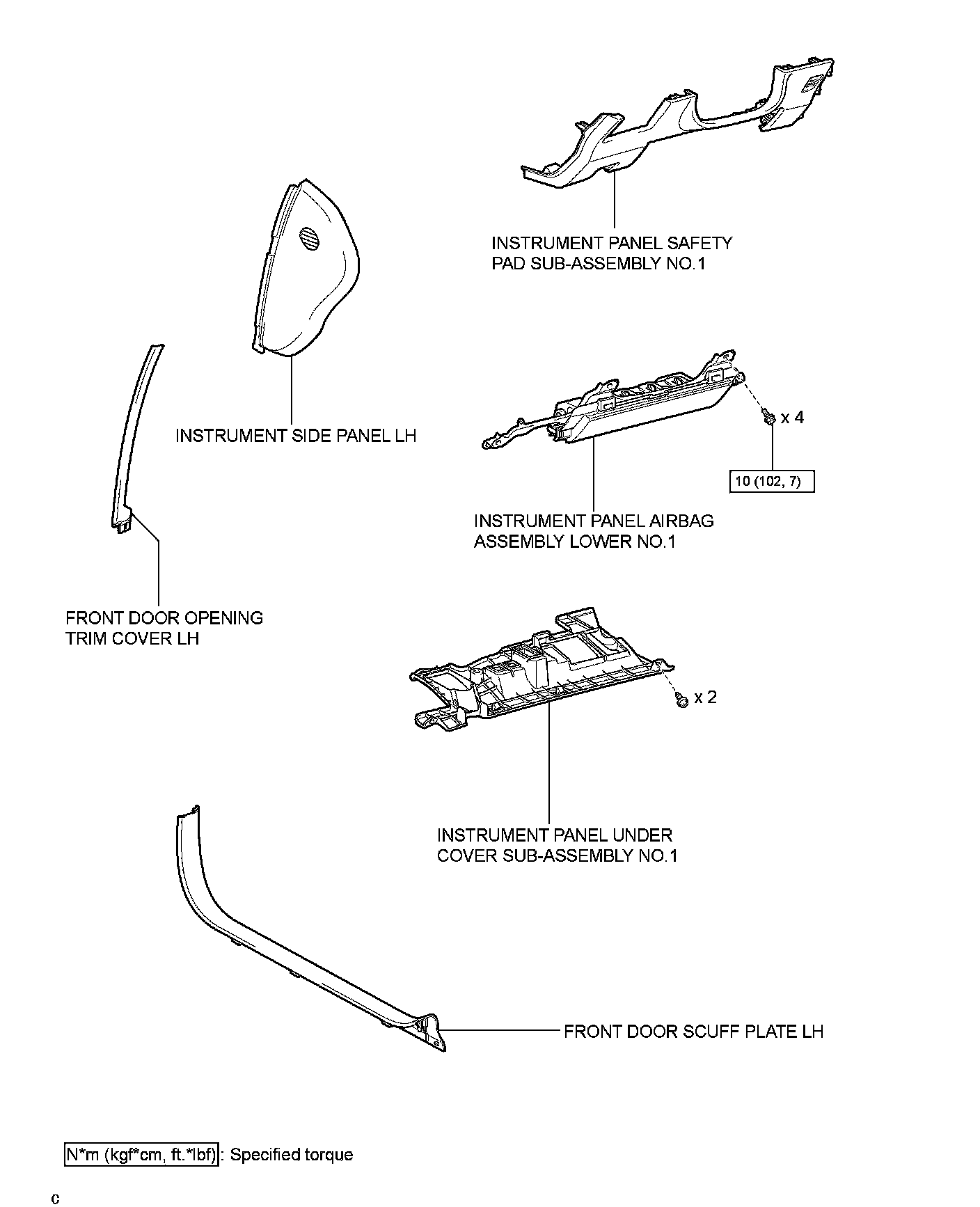

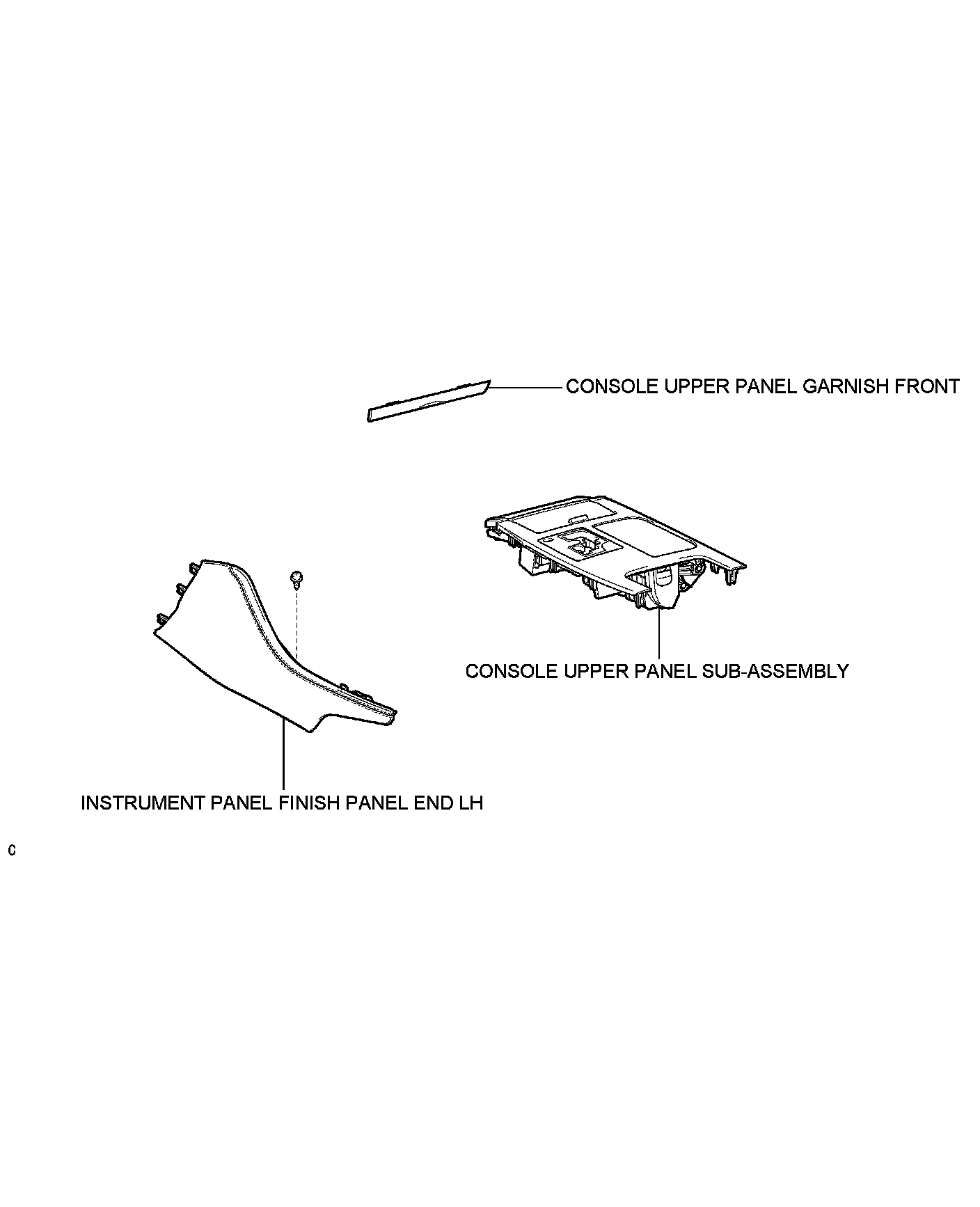

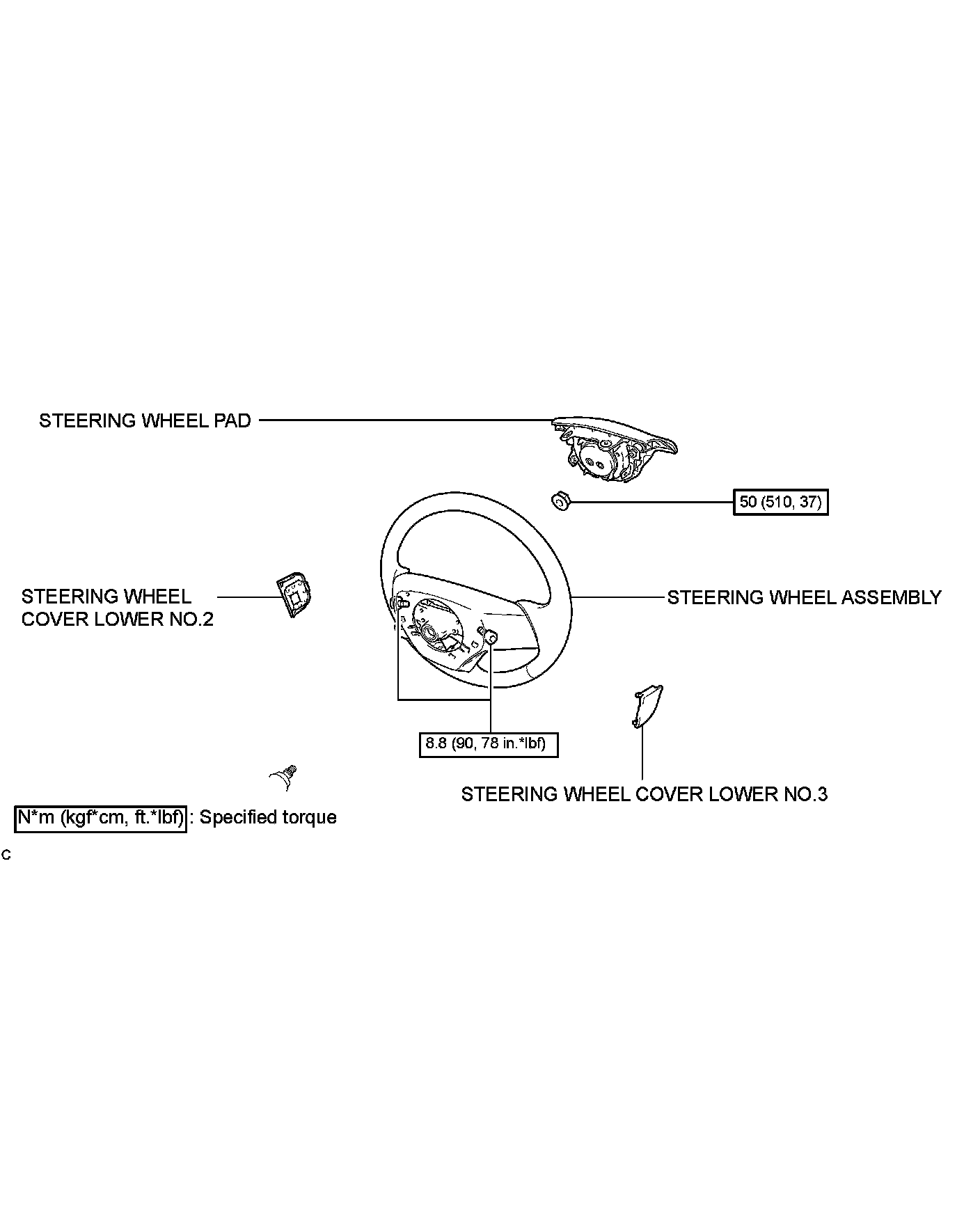

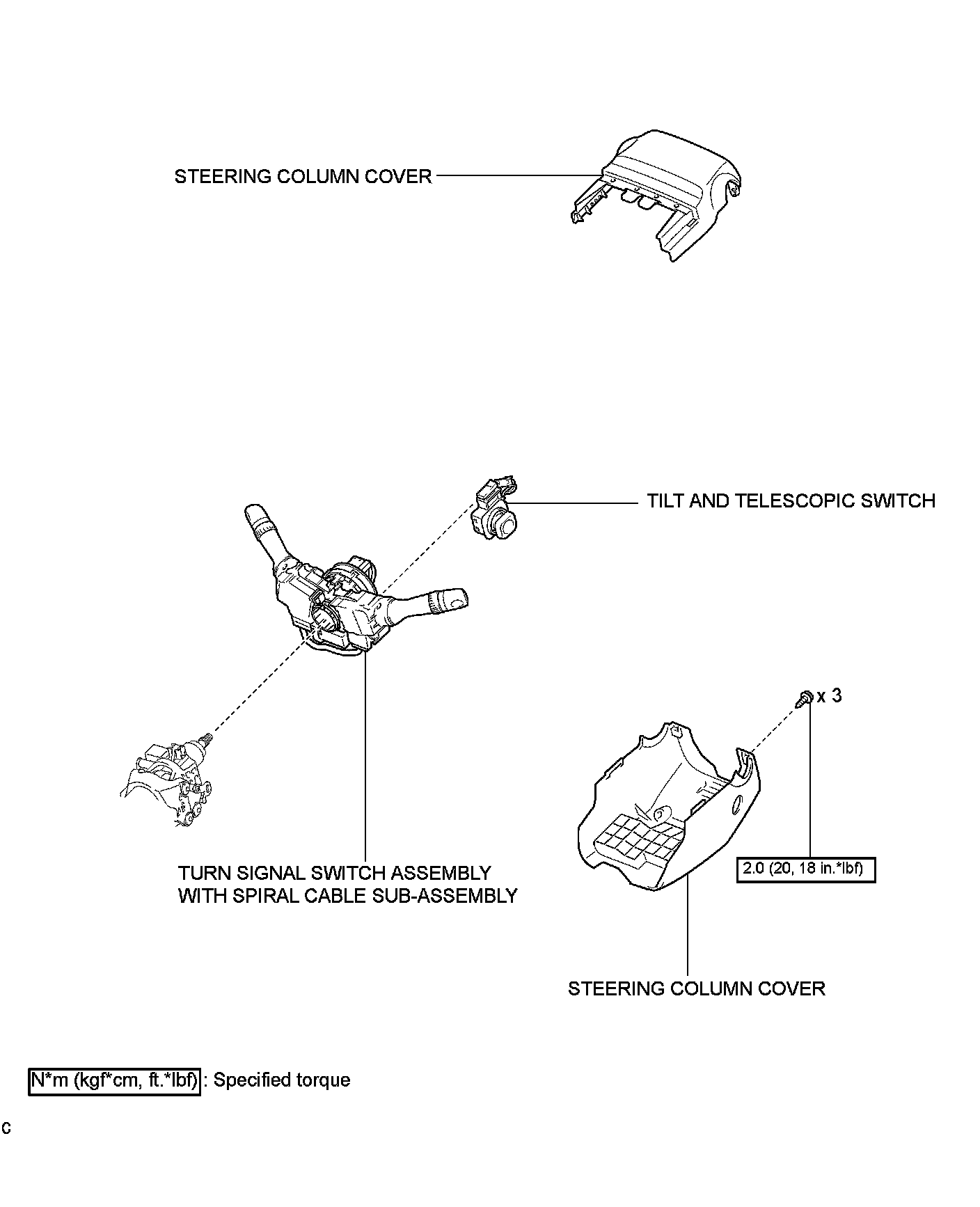

COMPONENTS

ILLUSTRATION
