Electrical Diagrams

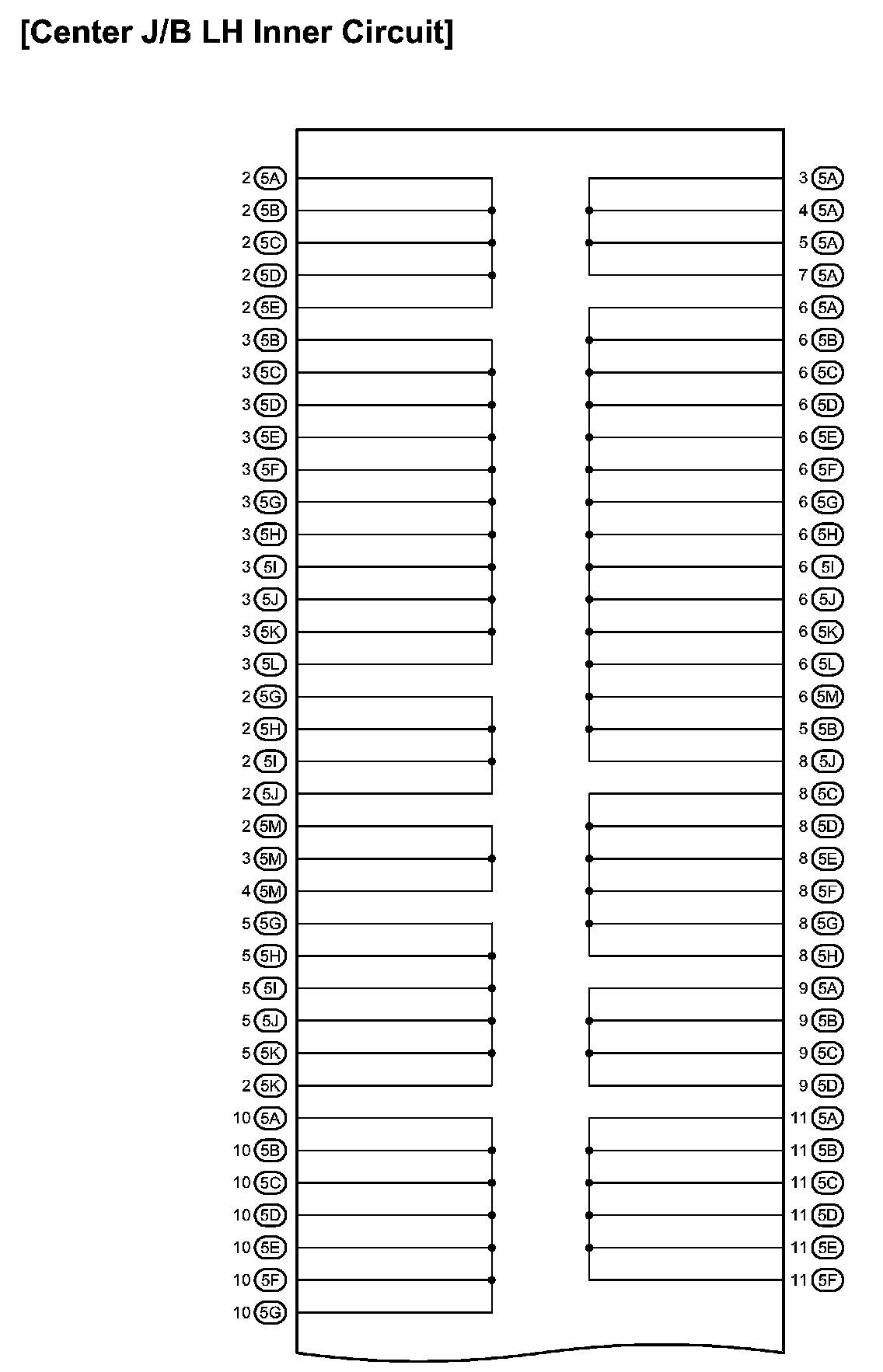

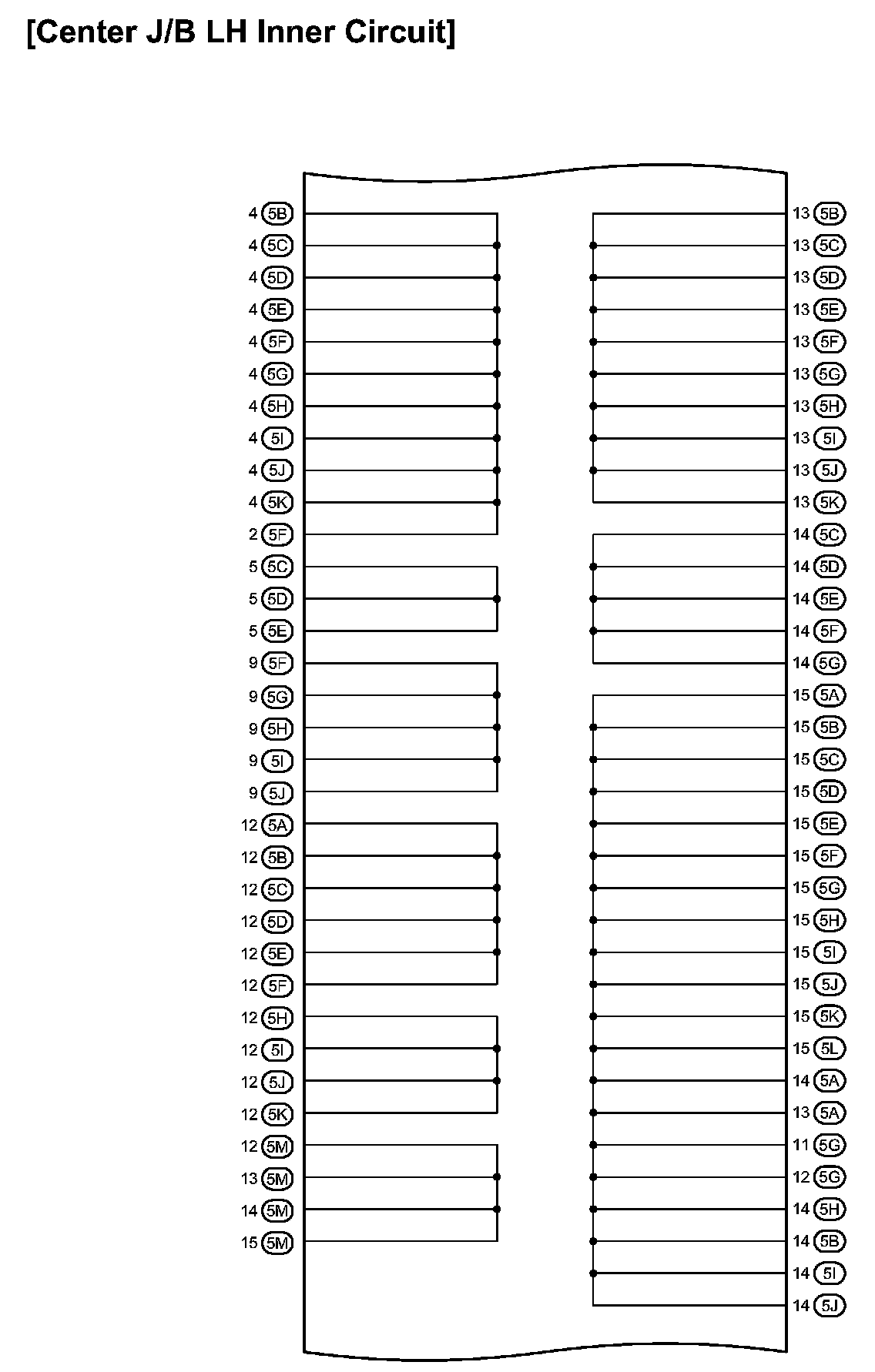

Center J/B LH Inner Circuit:

Center J/B LH Inner Circuit:

Center J/B LH Inner Circuit:

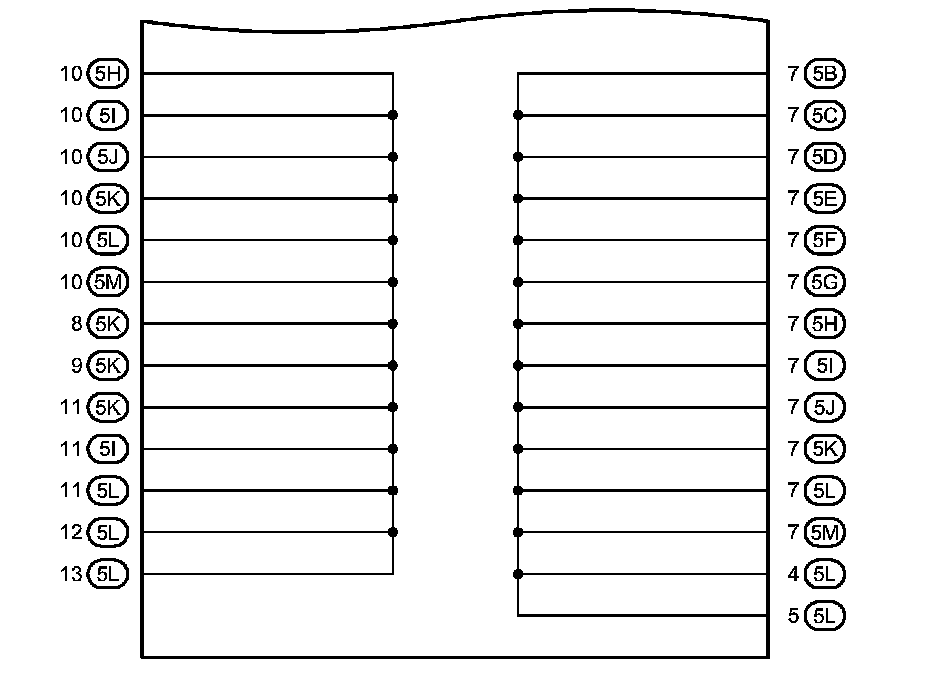

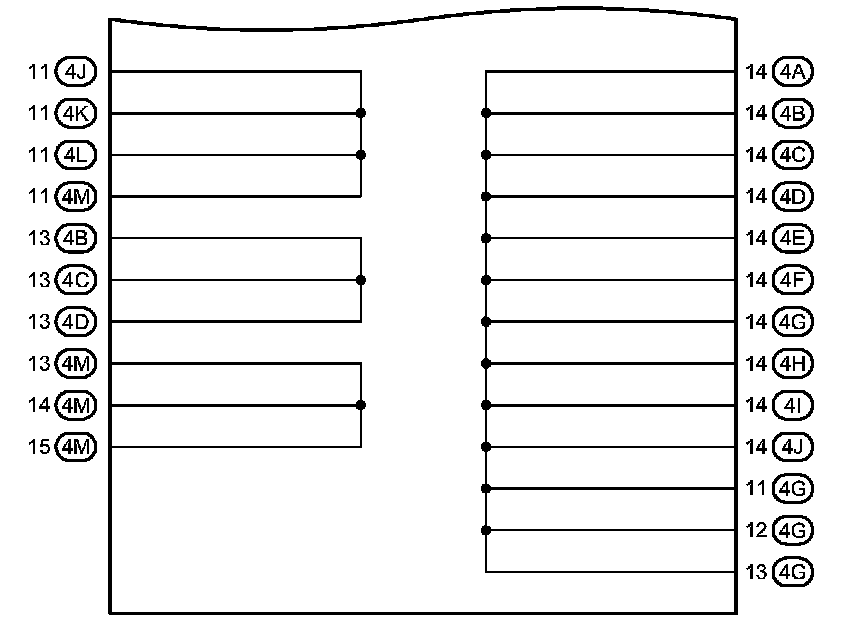

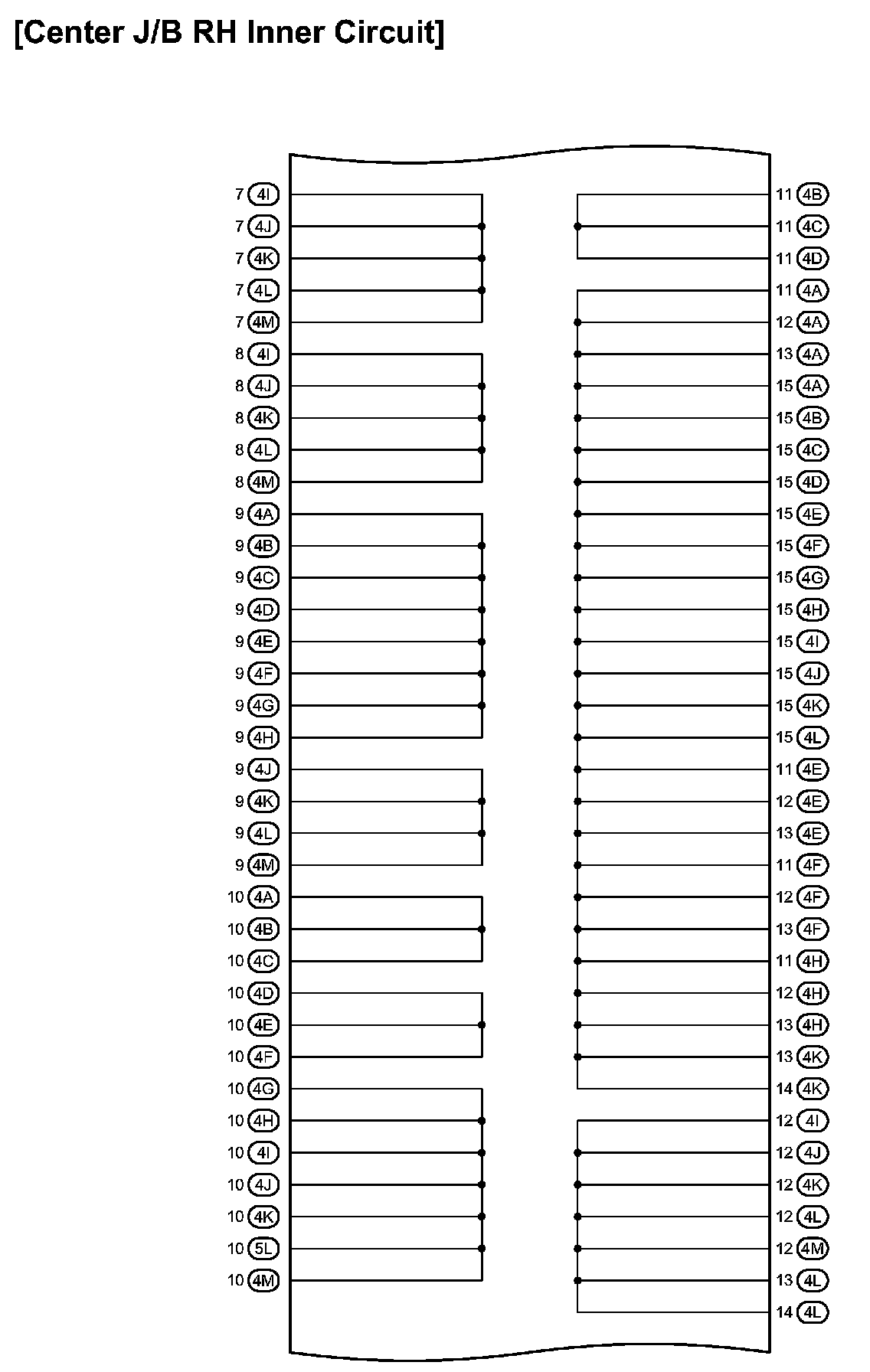

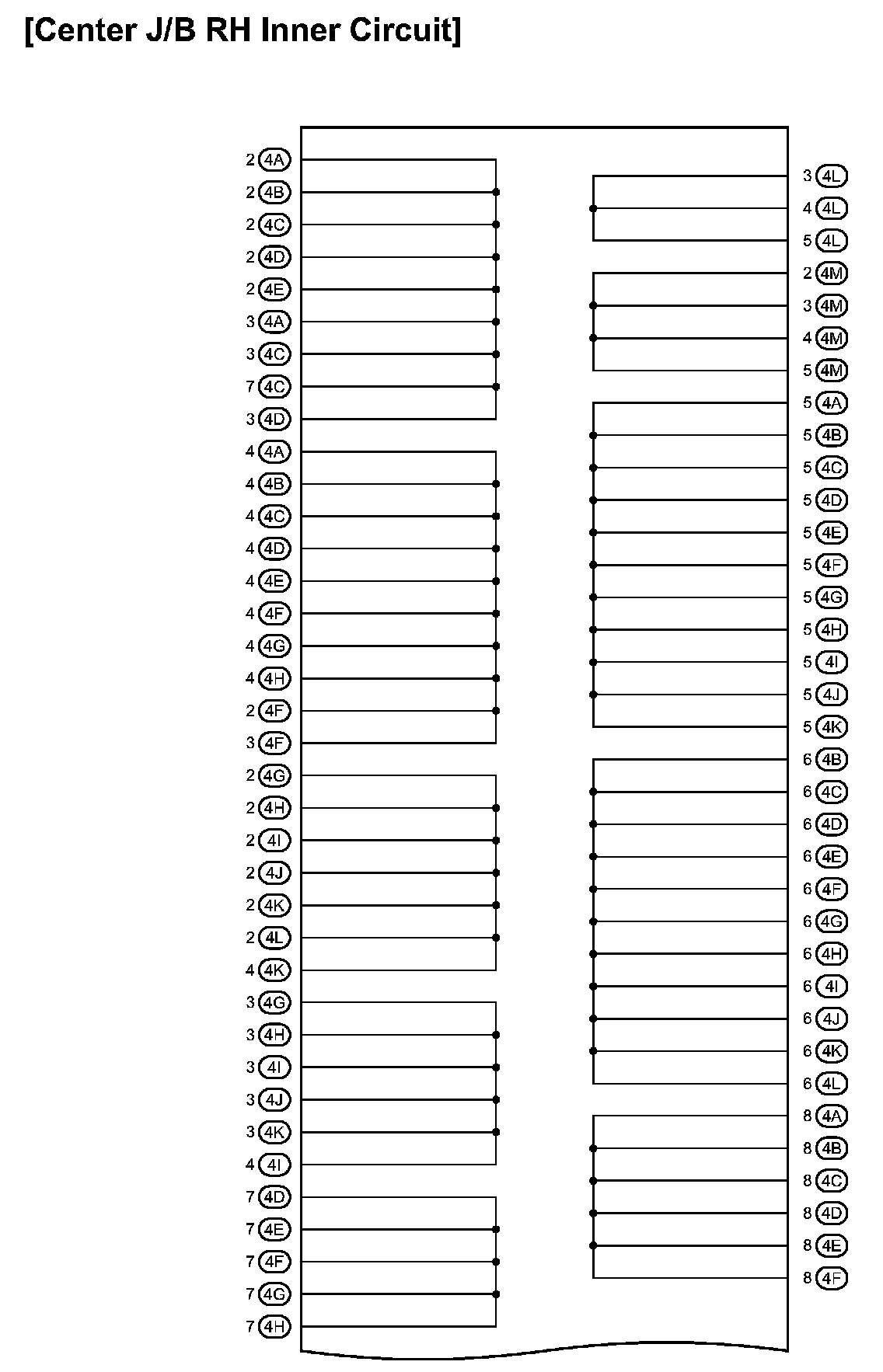

Center J/B RH Inner Circuit:

Center J/B RH Inner Circuit:

Center J/B RH Inner Circuit:

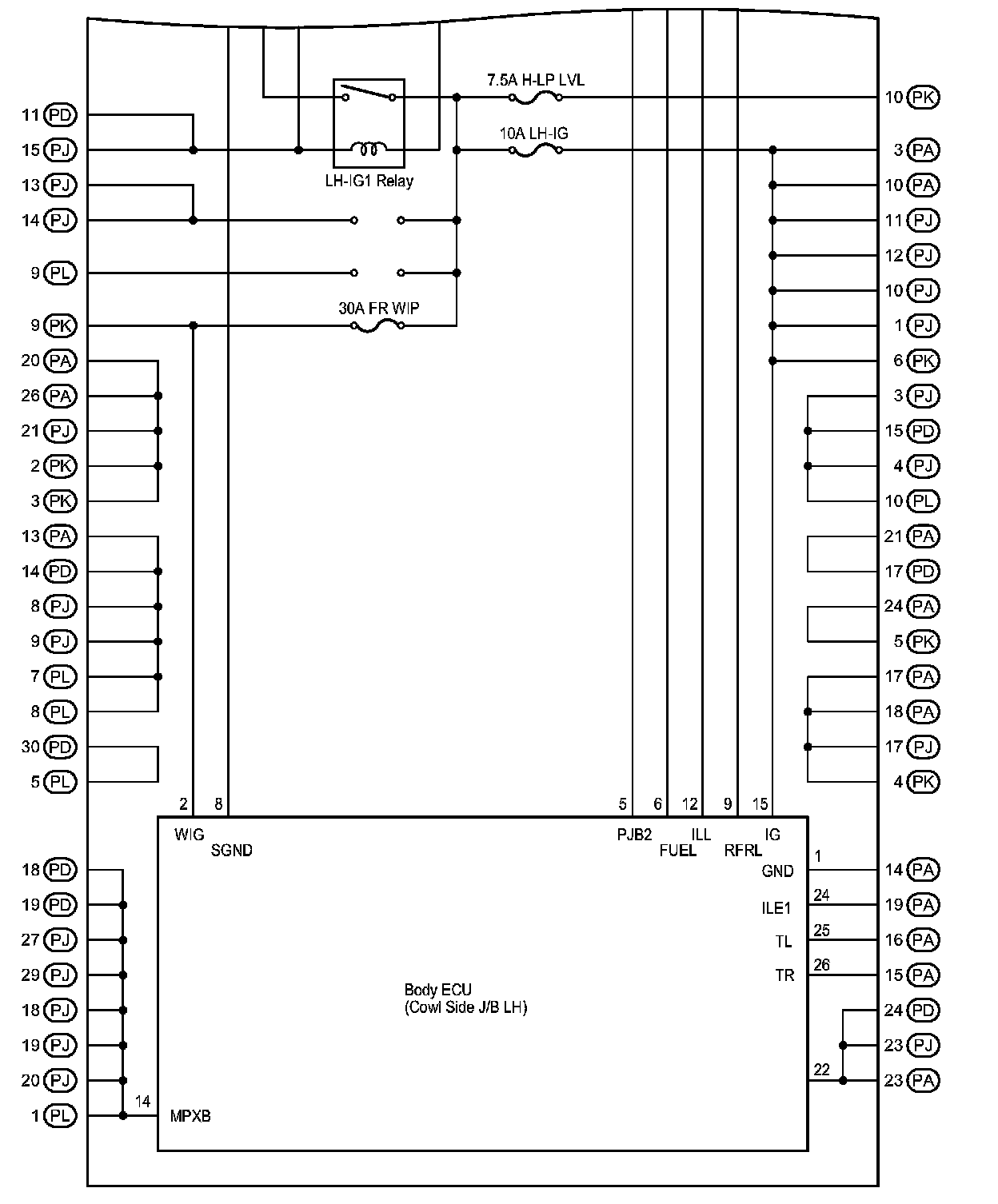

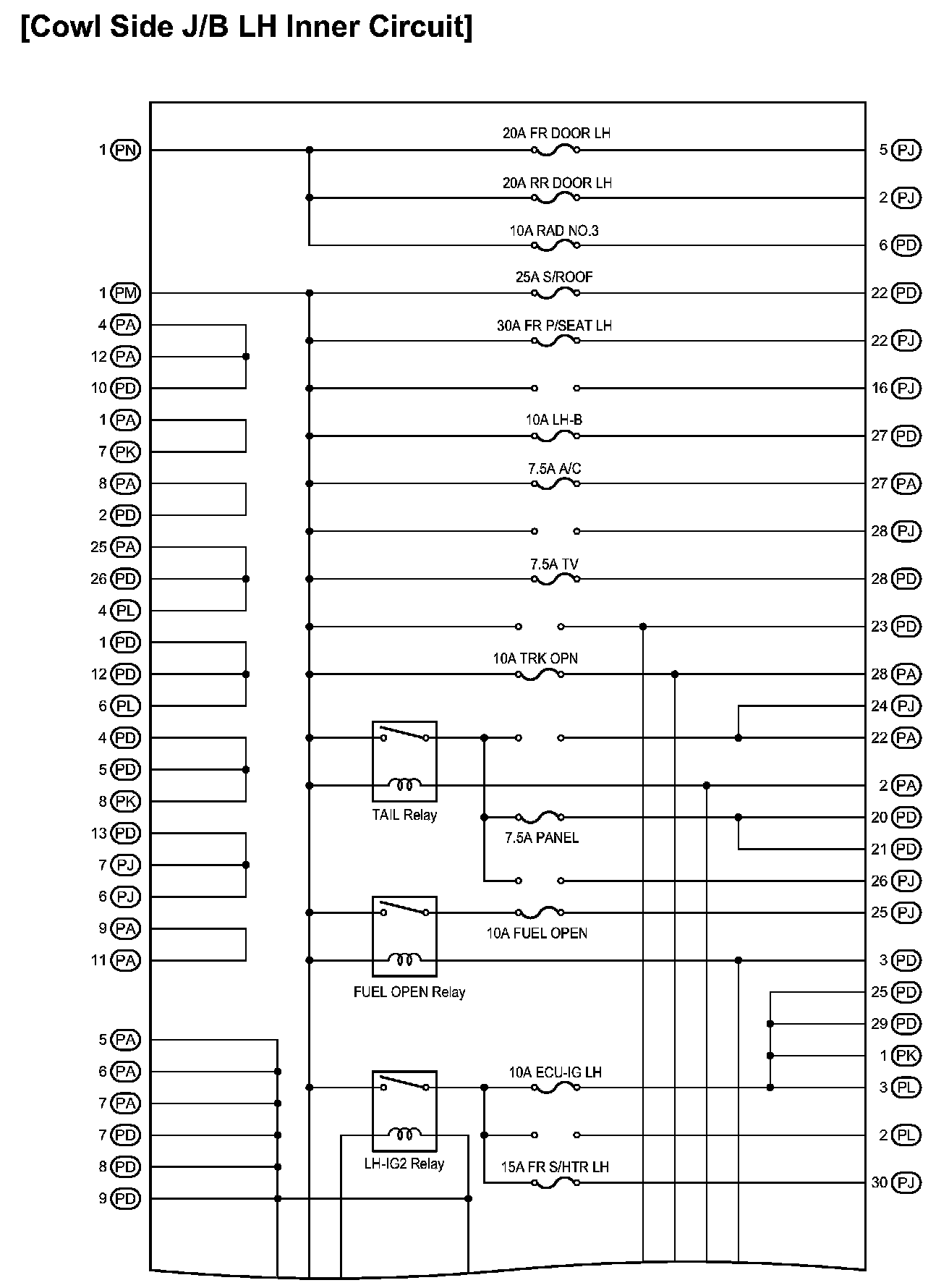

Cowl Side J/B LH Inner Circuit:

Cowl Side J/B LH Inner Circuit:

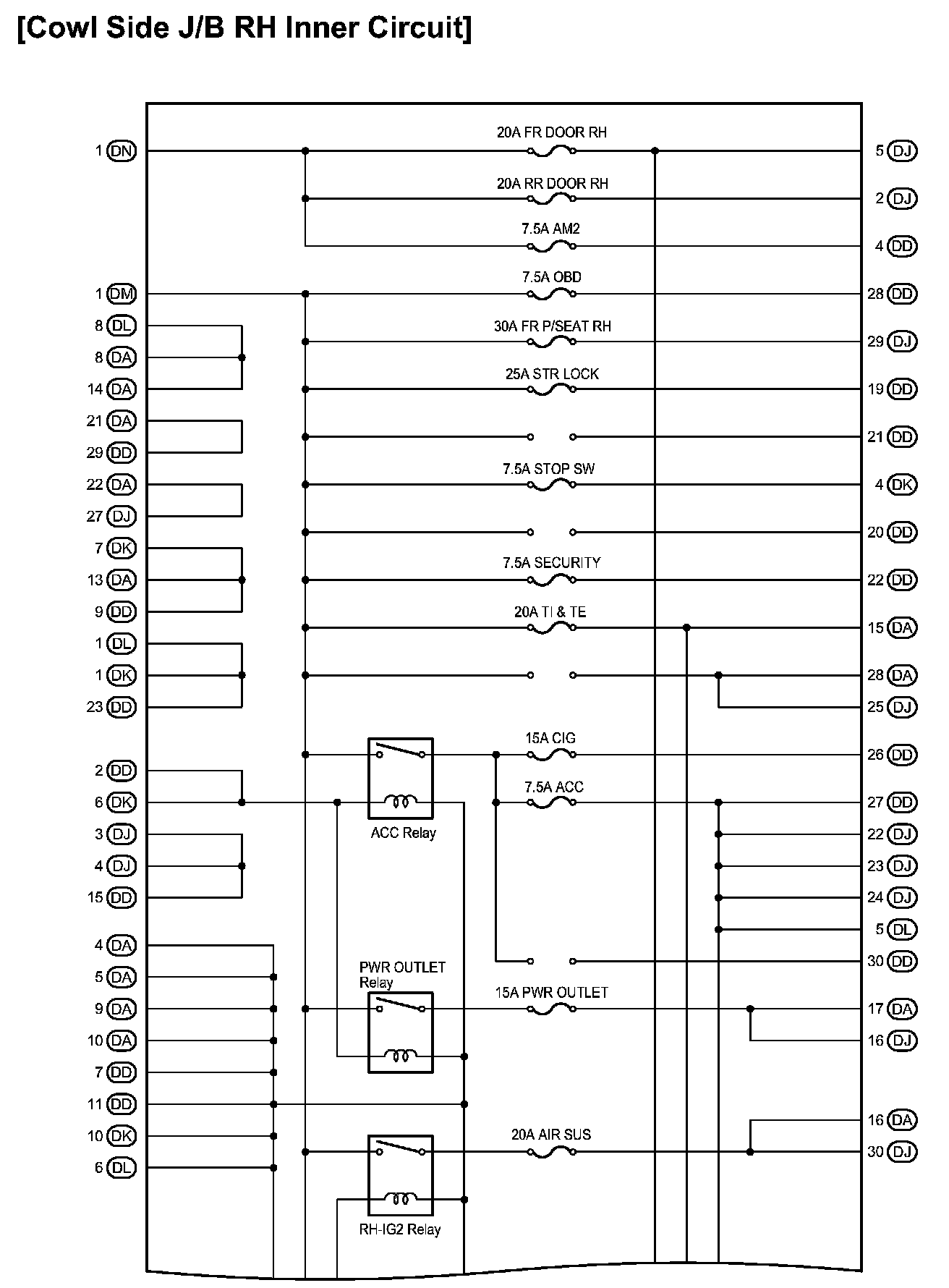

Cowl Side J/B RH Inner Circuit:

Cowl Side J/B RH Inner Circuit:

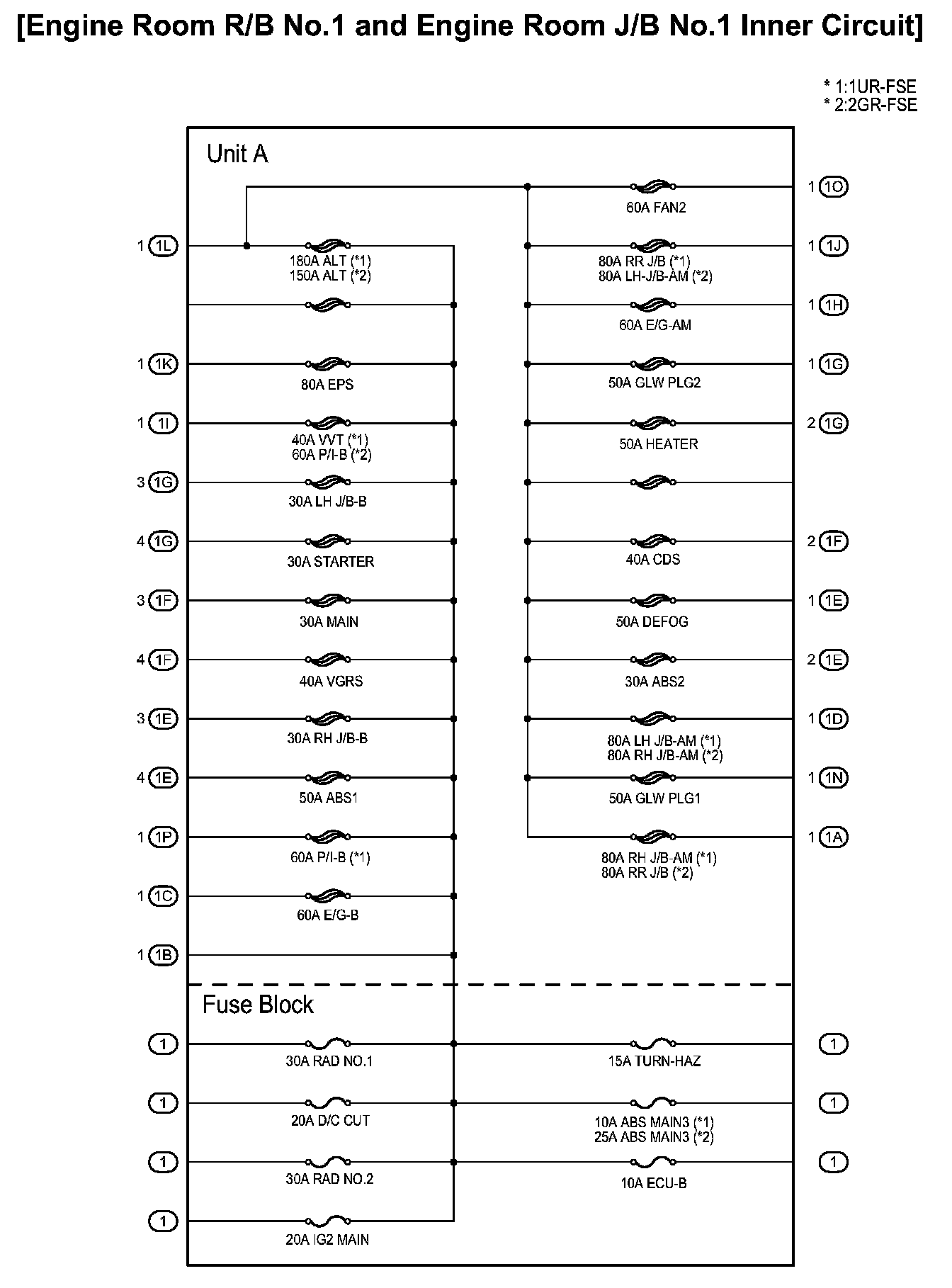

Engine Room R/B No.1 And Engine Room J/B No.1 Inner Circuit:

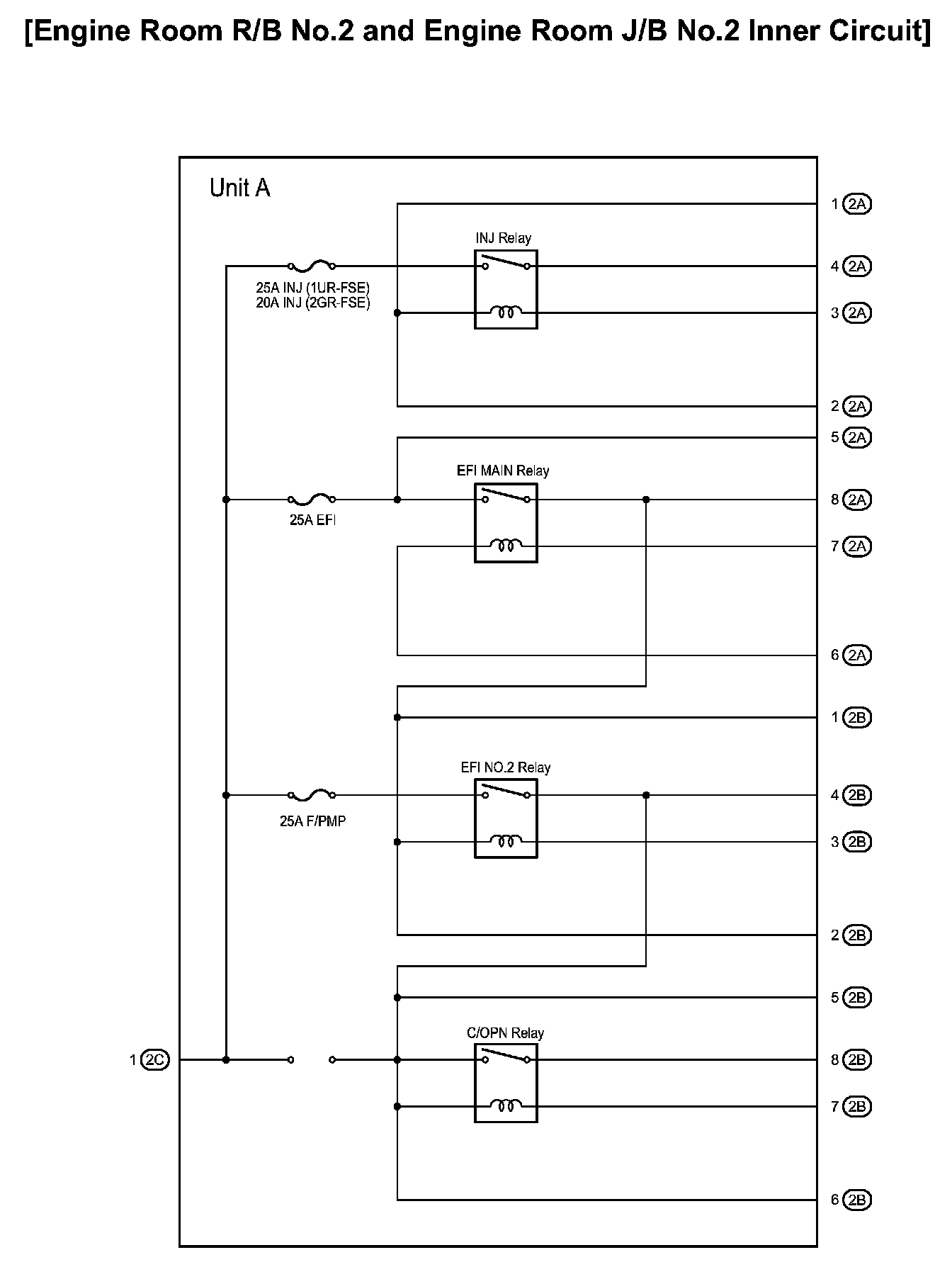

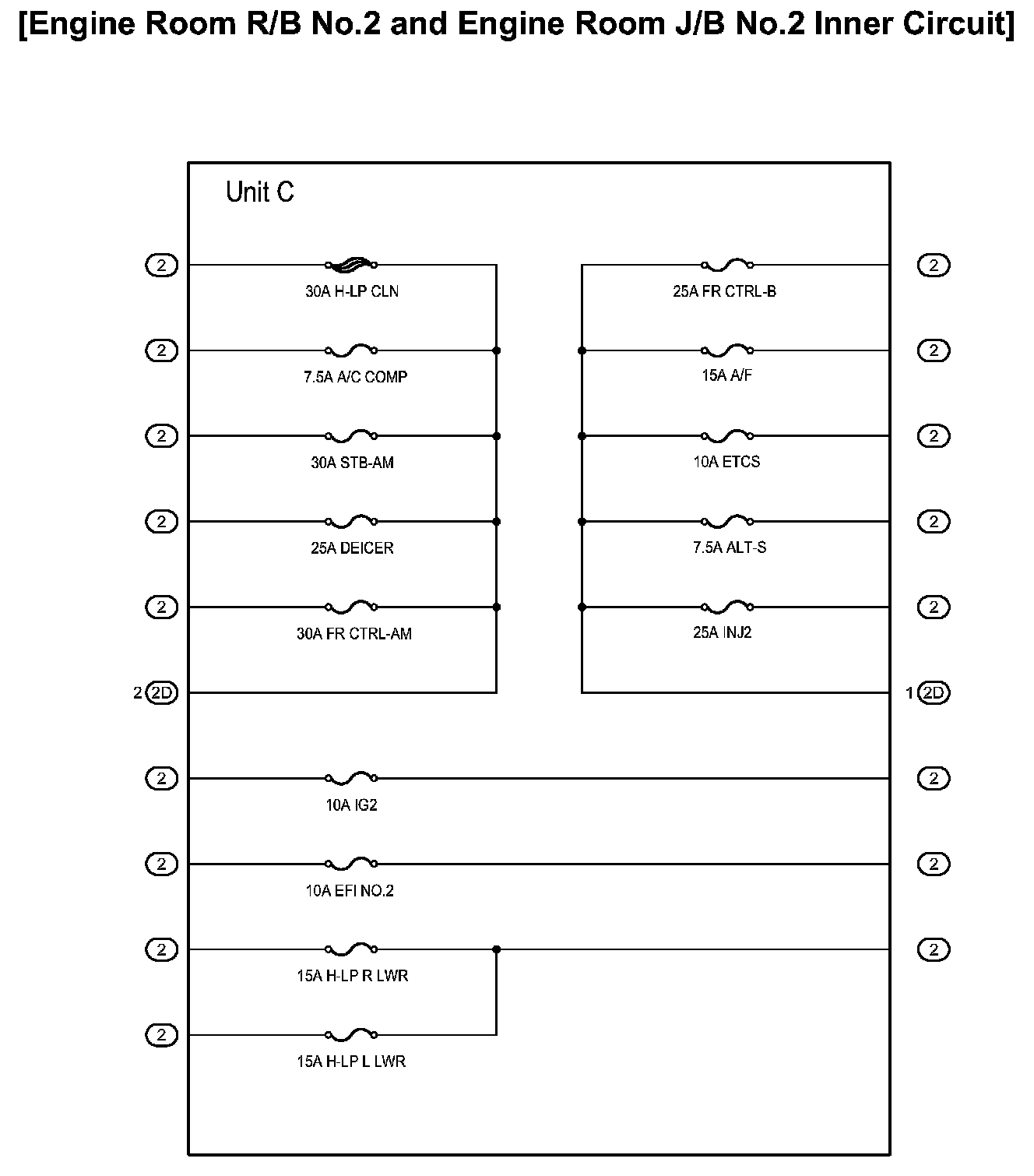

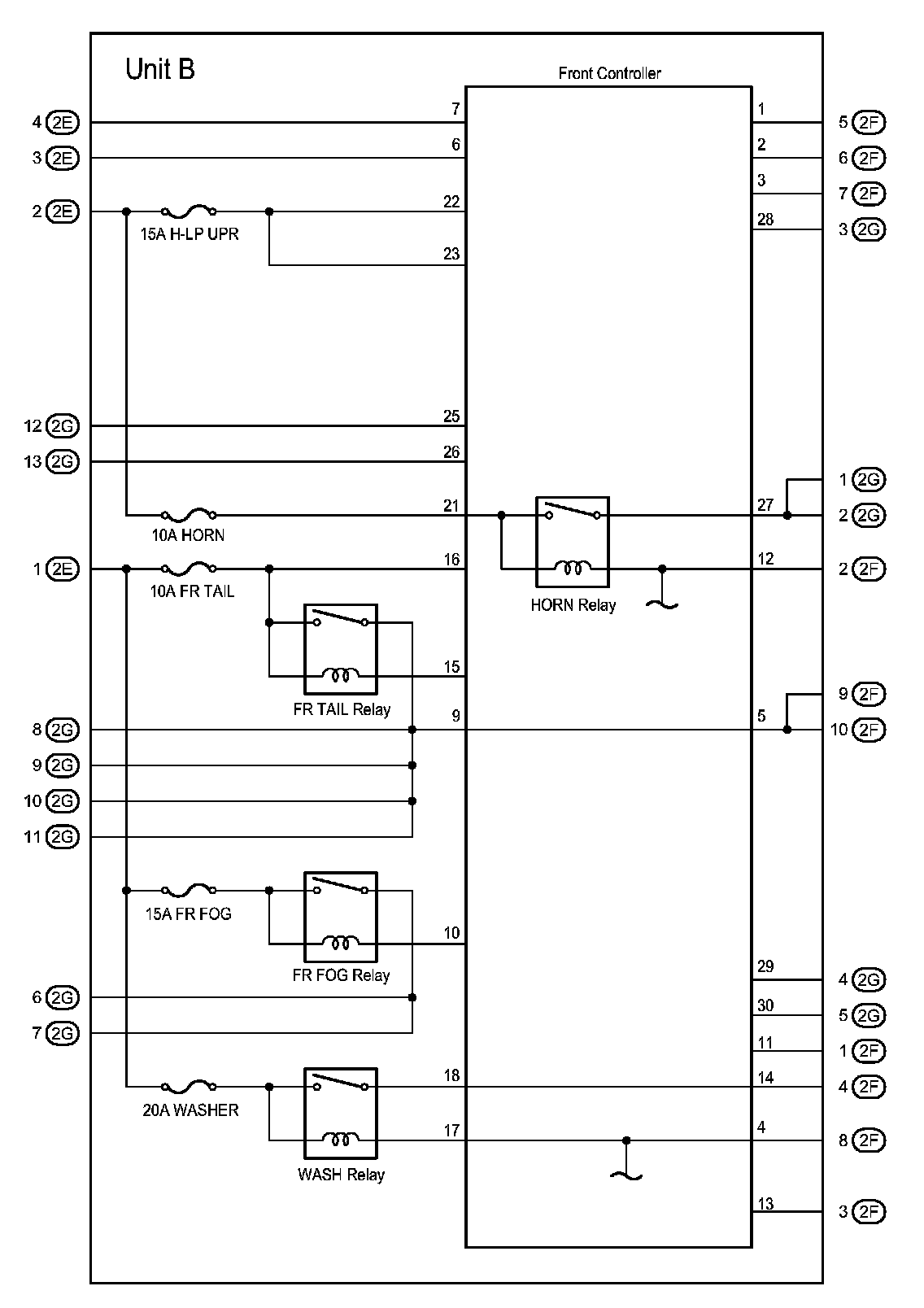

Engine Room R/B No.2 And Engine Room J/B No.2 Inner Circuit:

Engine Room R/B No.2 And Engine Room J/B No.2 Inner Circuit:

Engine Room R/B No.2 And Engine Room J/B No.2 Inner Circuit:

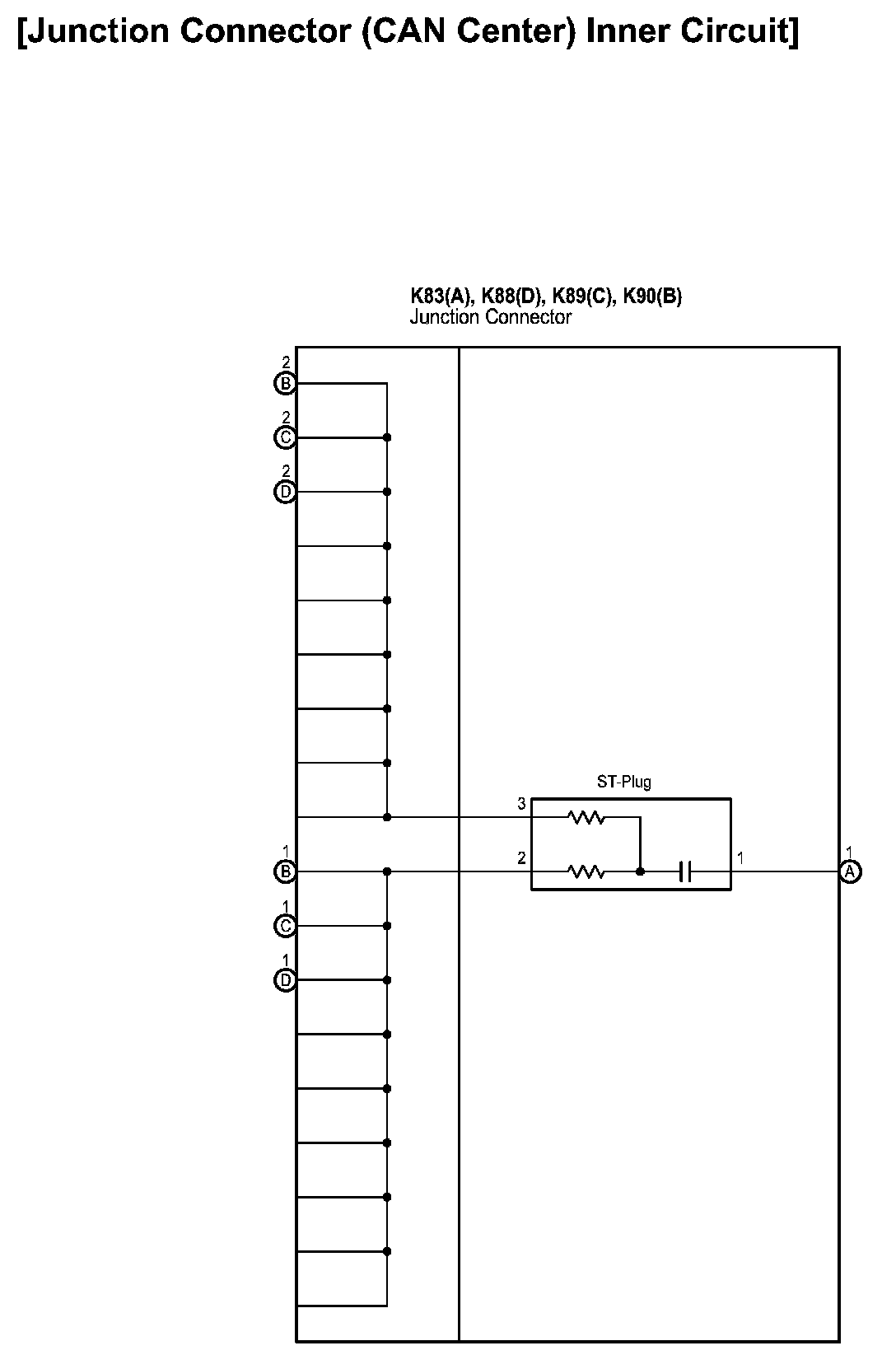

Junction Connector (CAN Center) Inner Circuit:

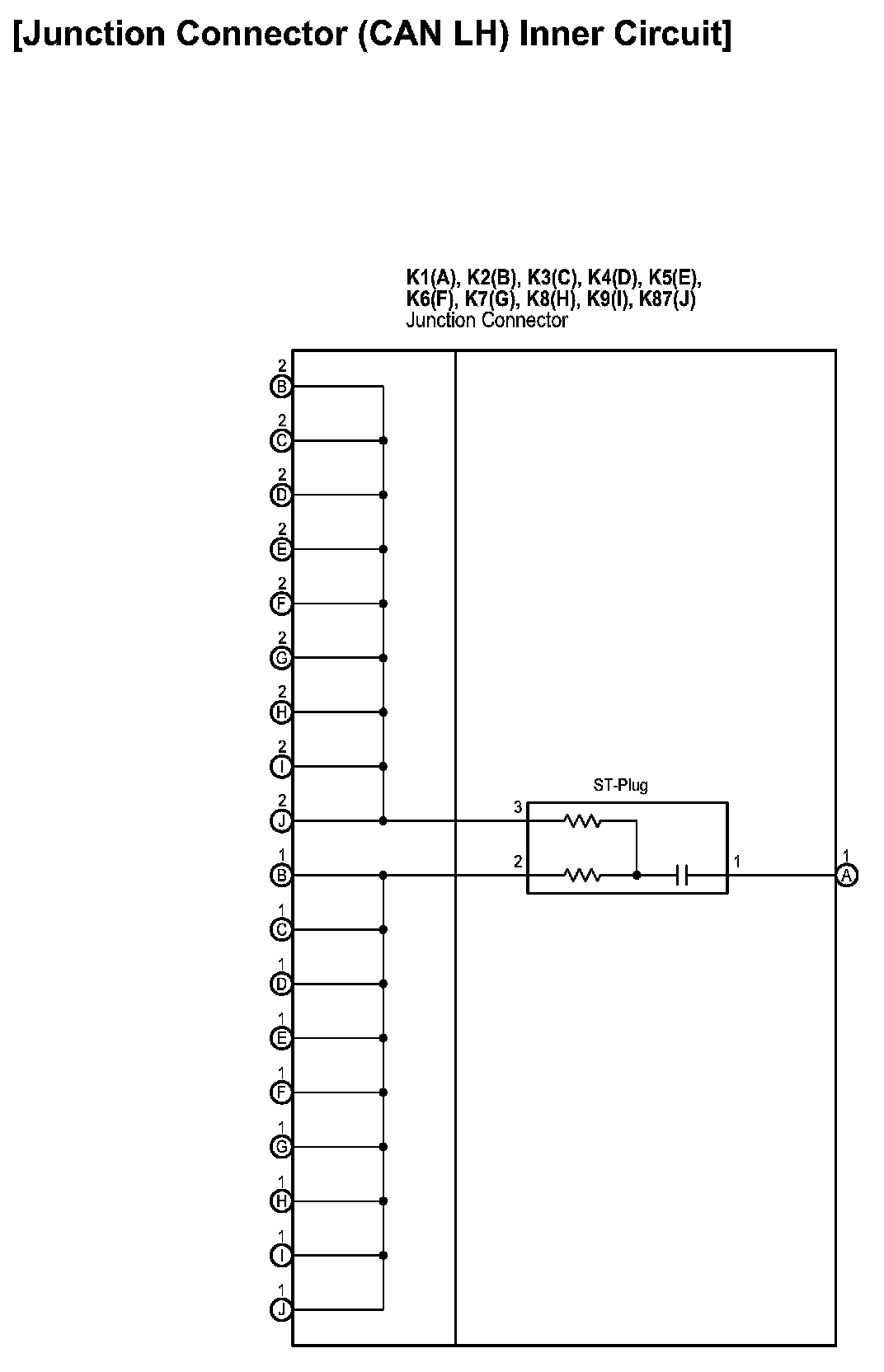

Junction Connector (CAN LH) Inner Circuit:

Junction Connector (CAN Luggage LH) Inner Circuit:

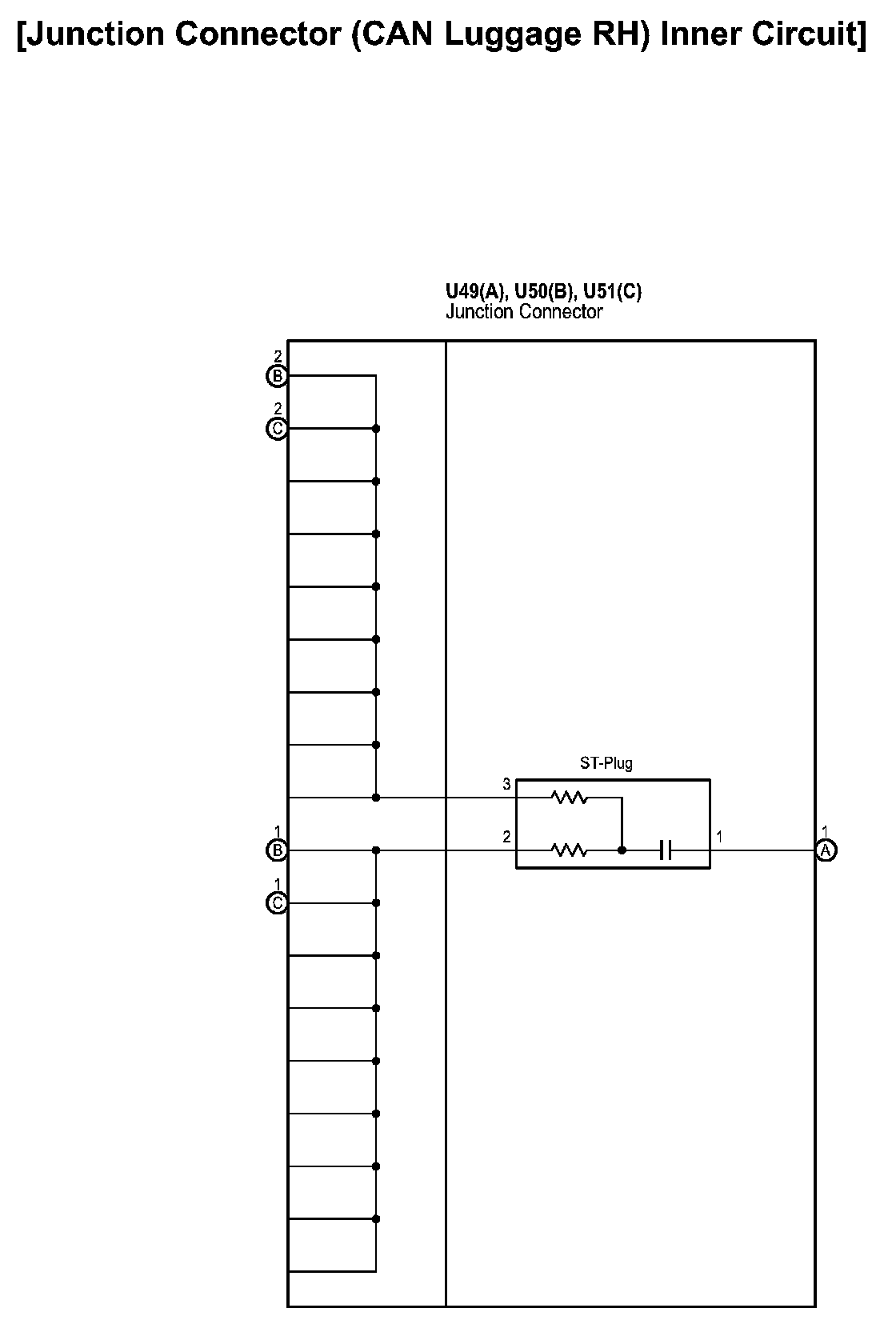

Junction Connector (CAN Luggage RH) Inner Circuit:

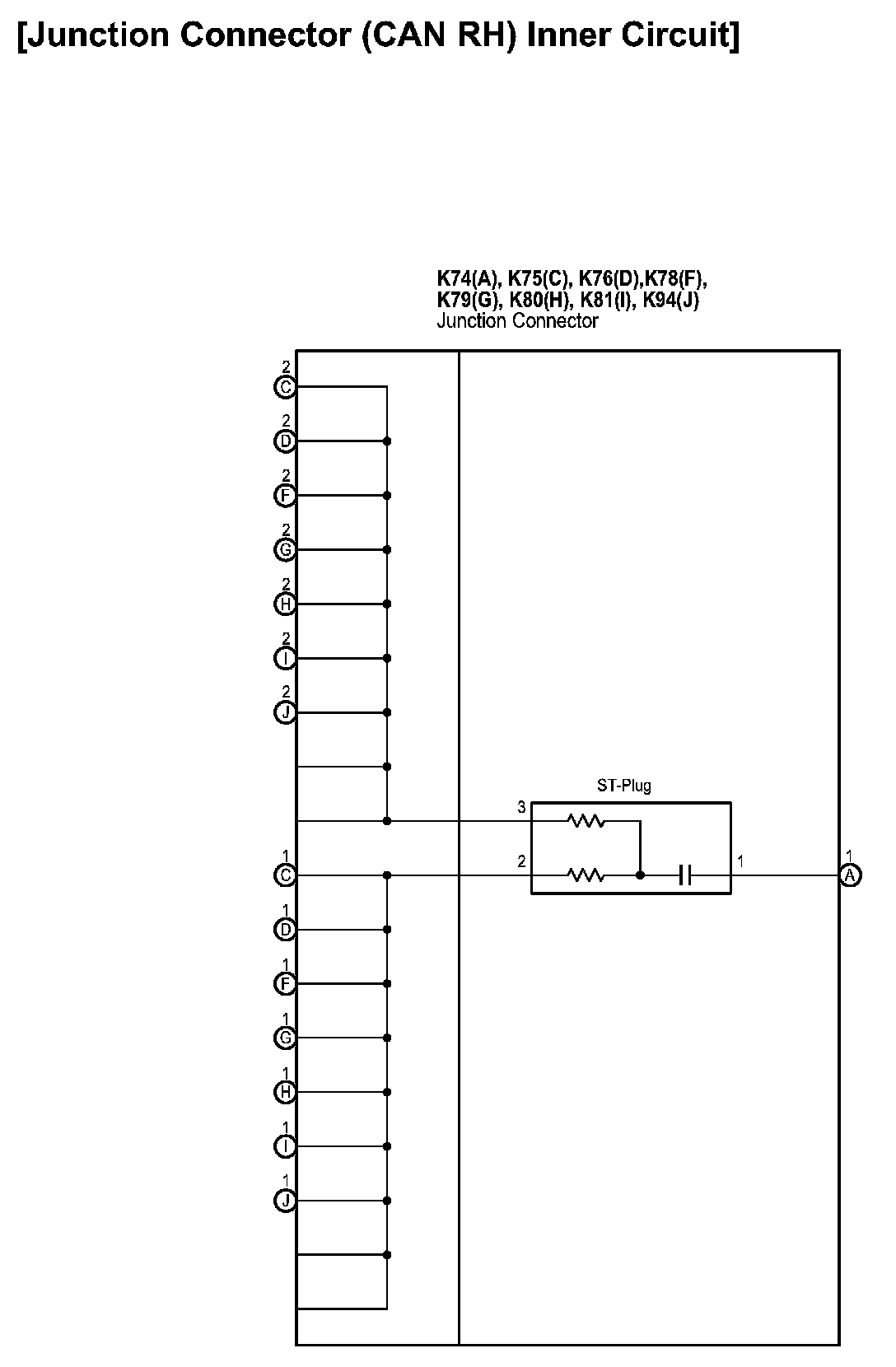

Junction Connector (CAN RH) Inner circuit:

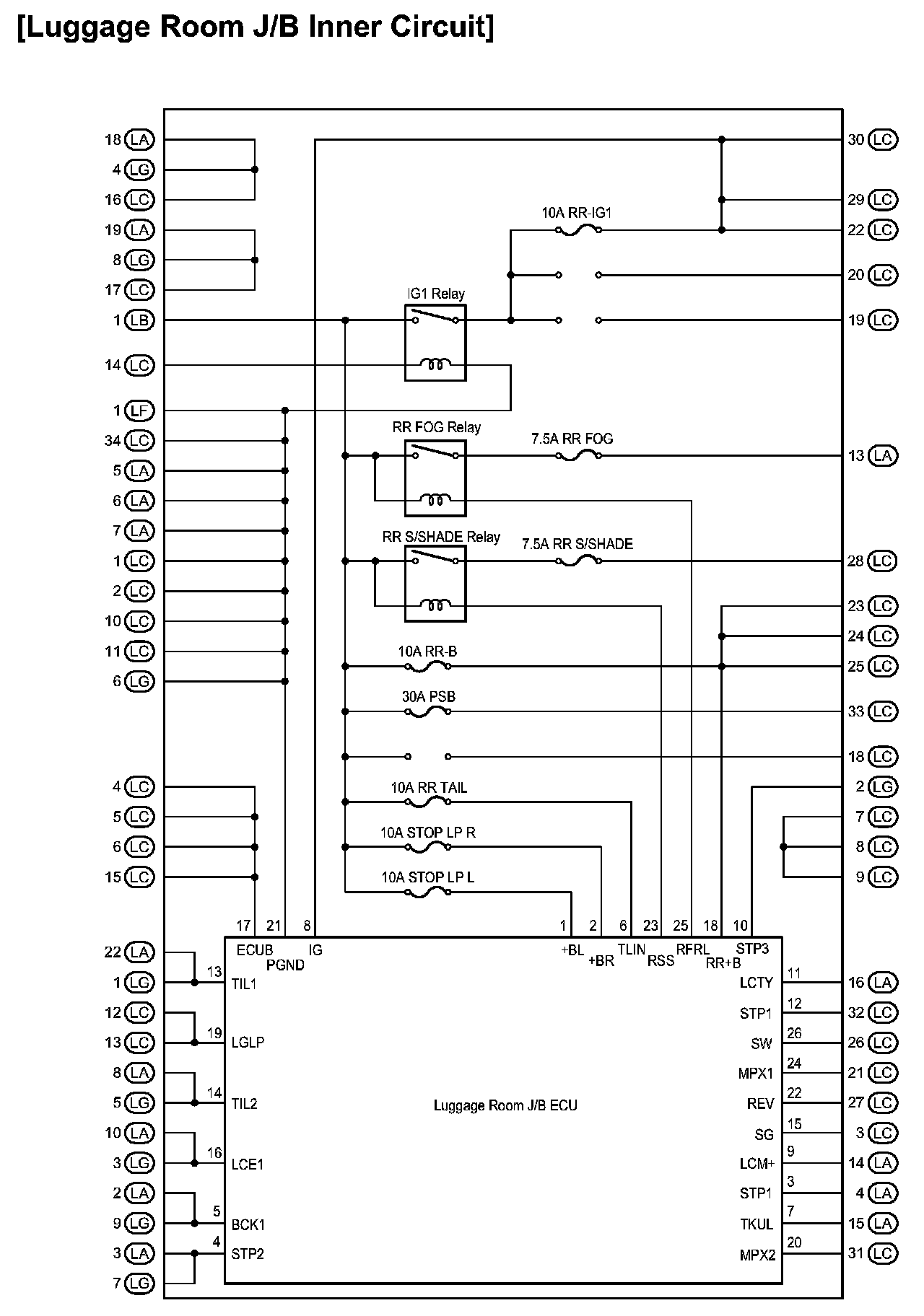

Luggage Room J/B Inner Circuit:
