Connector Views

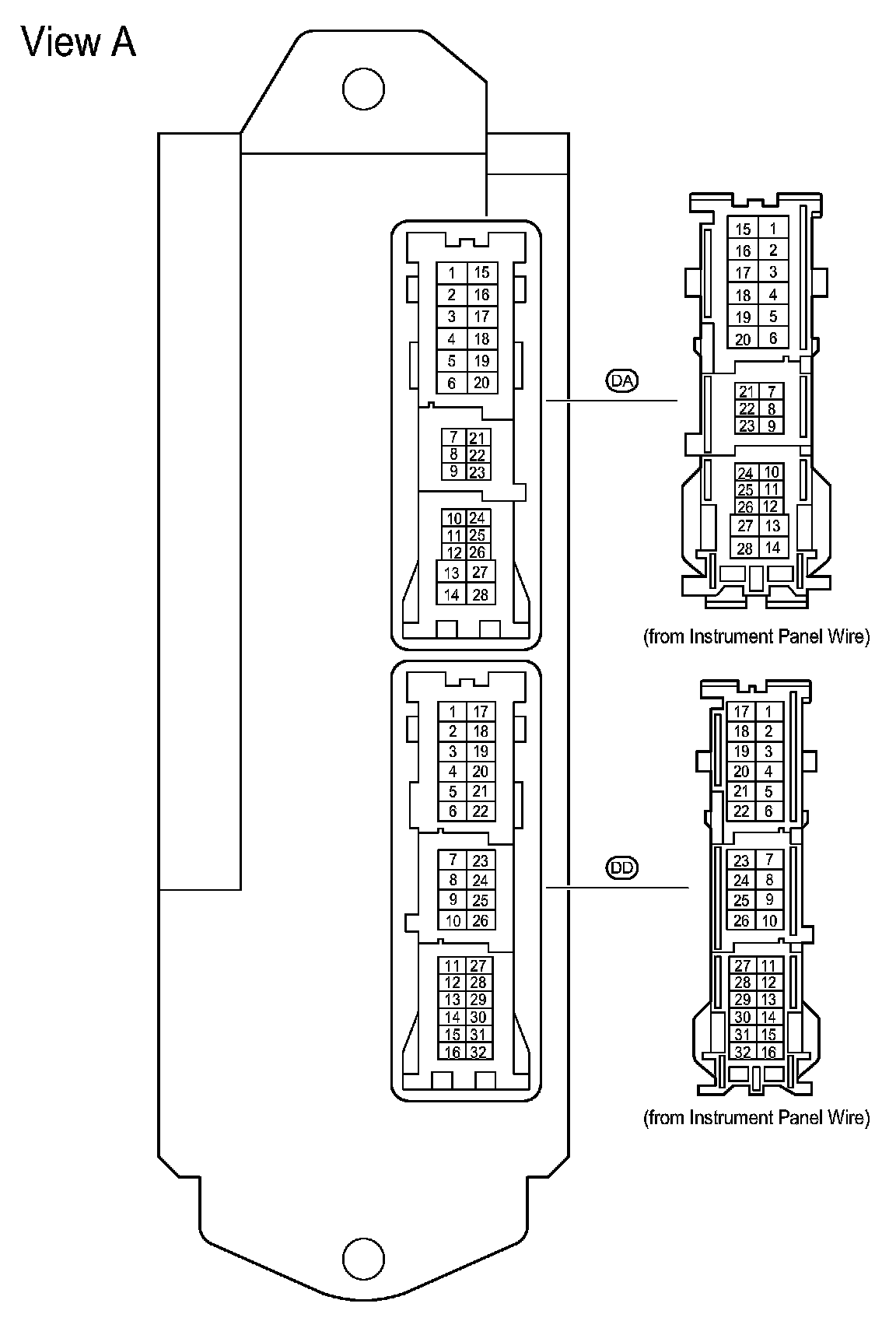

Center J/B LH - Upper the Glove Box:

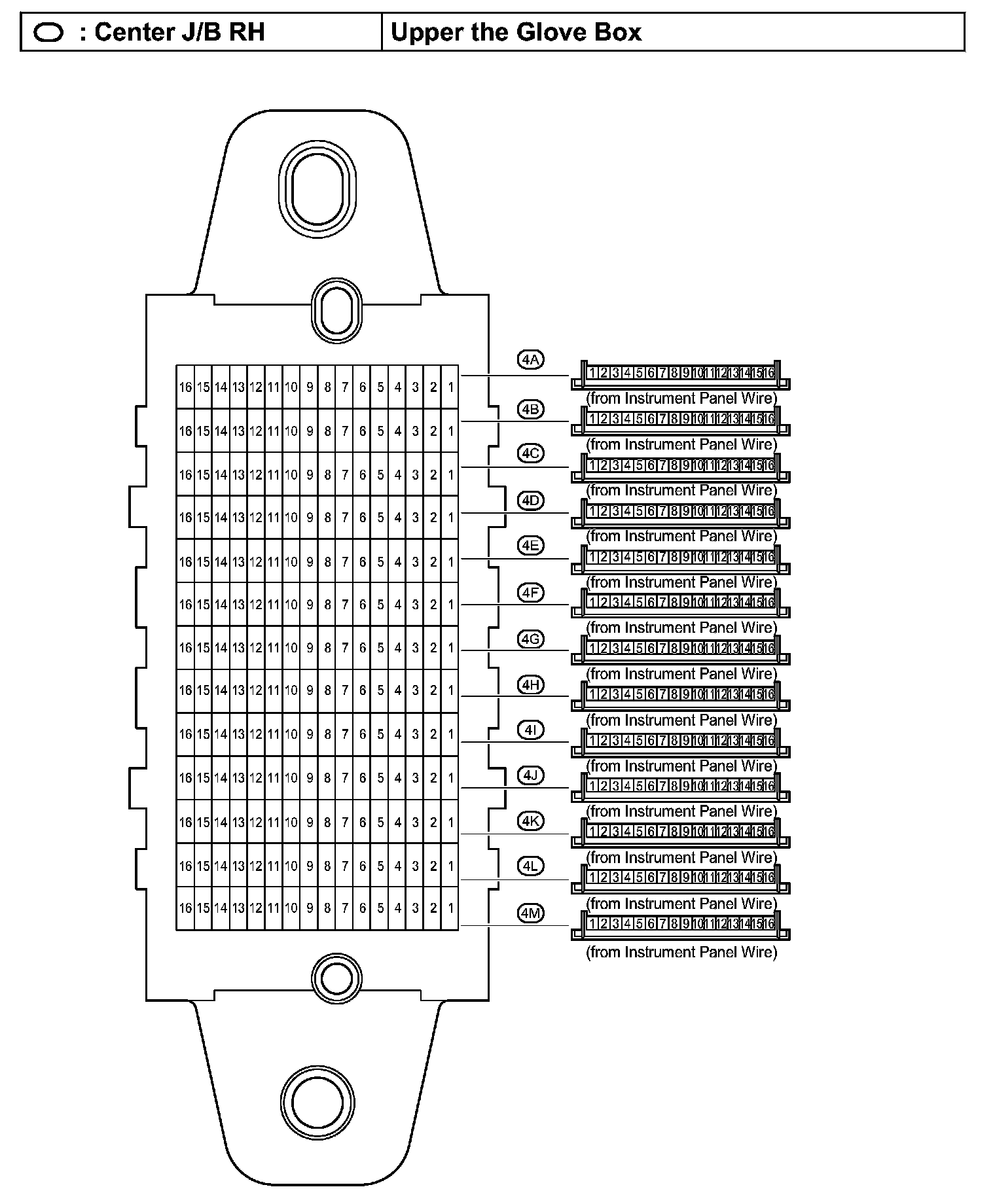

Center J/B RH - Upper the Glove Box:

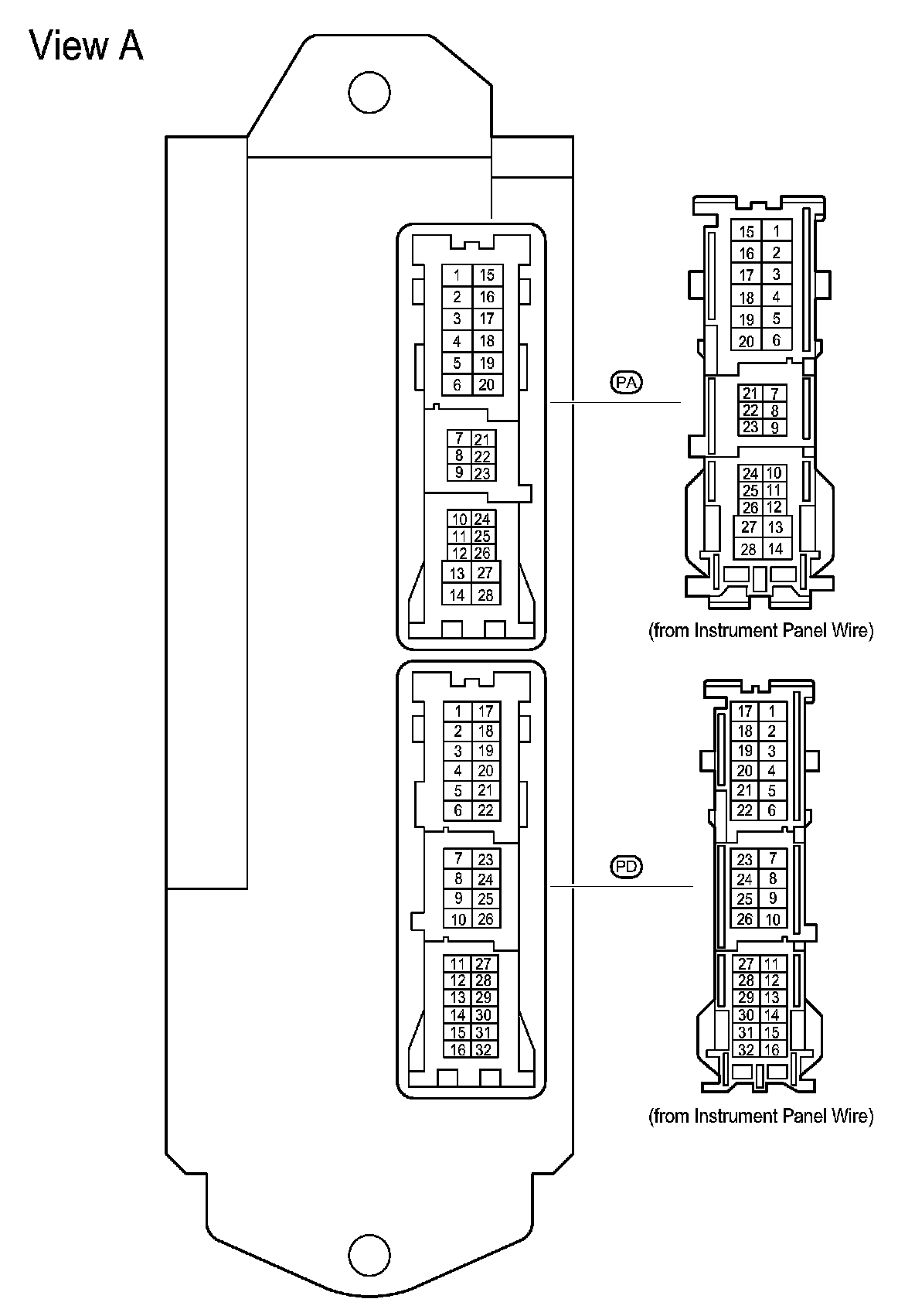

Cowl Side J/B LH - Cowl Side Left:

Cowl Side J/B LH - Cowl Side Left:

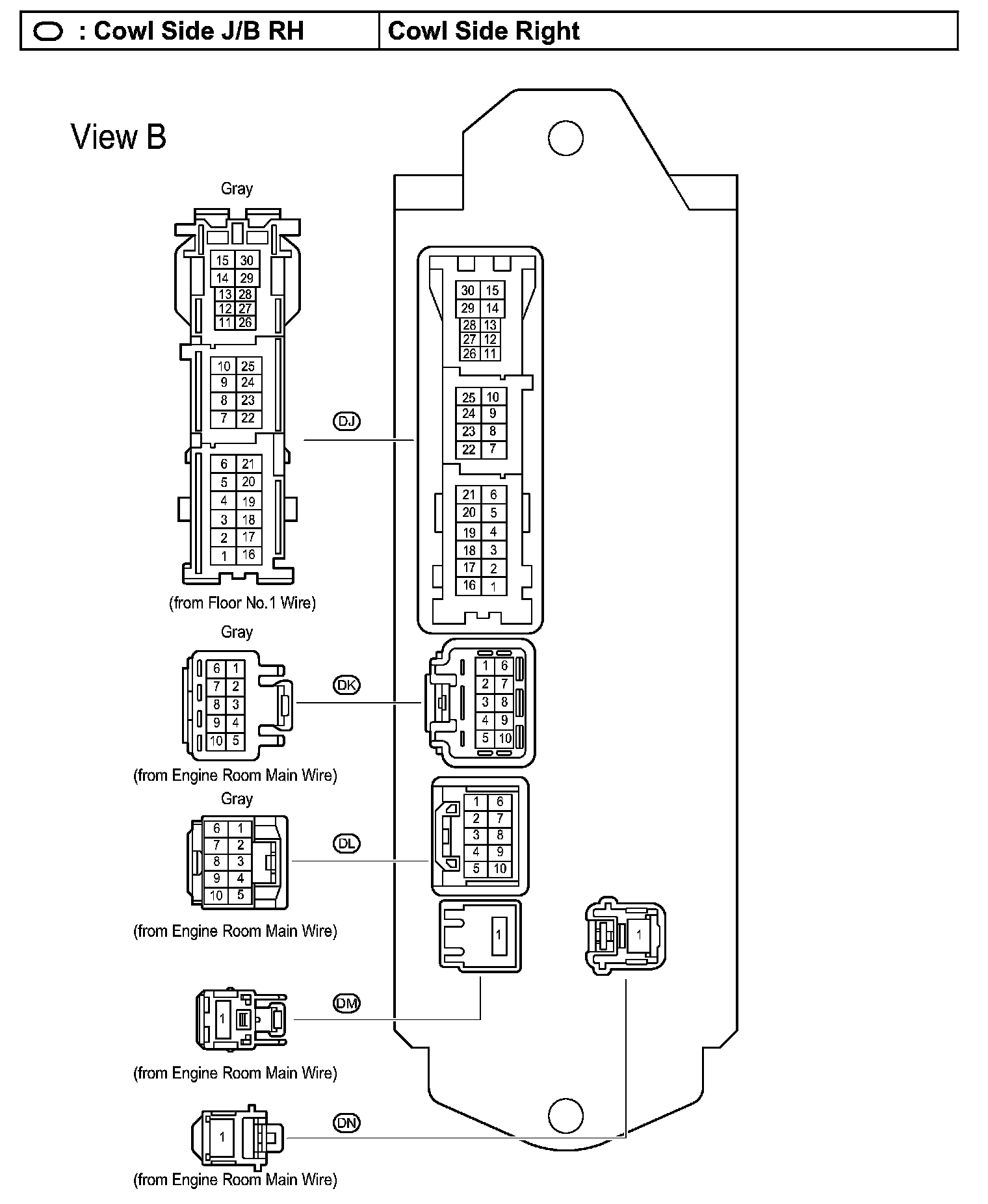

Cowl Side J/B RH - Cowl Side Right:

Cowl Side J/B RH - Cowl Side Right:

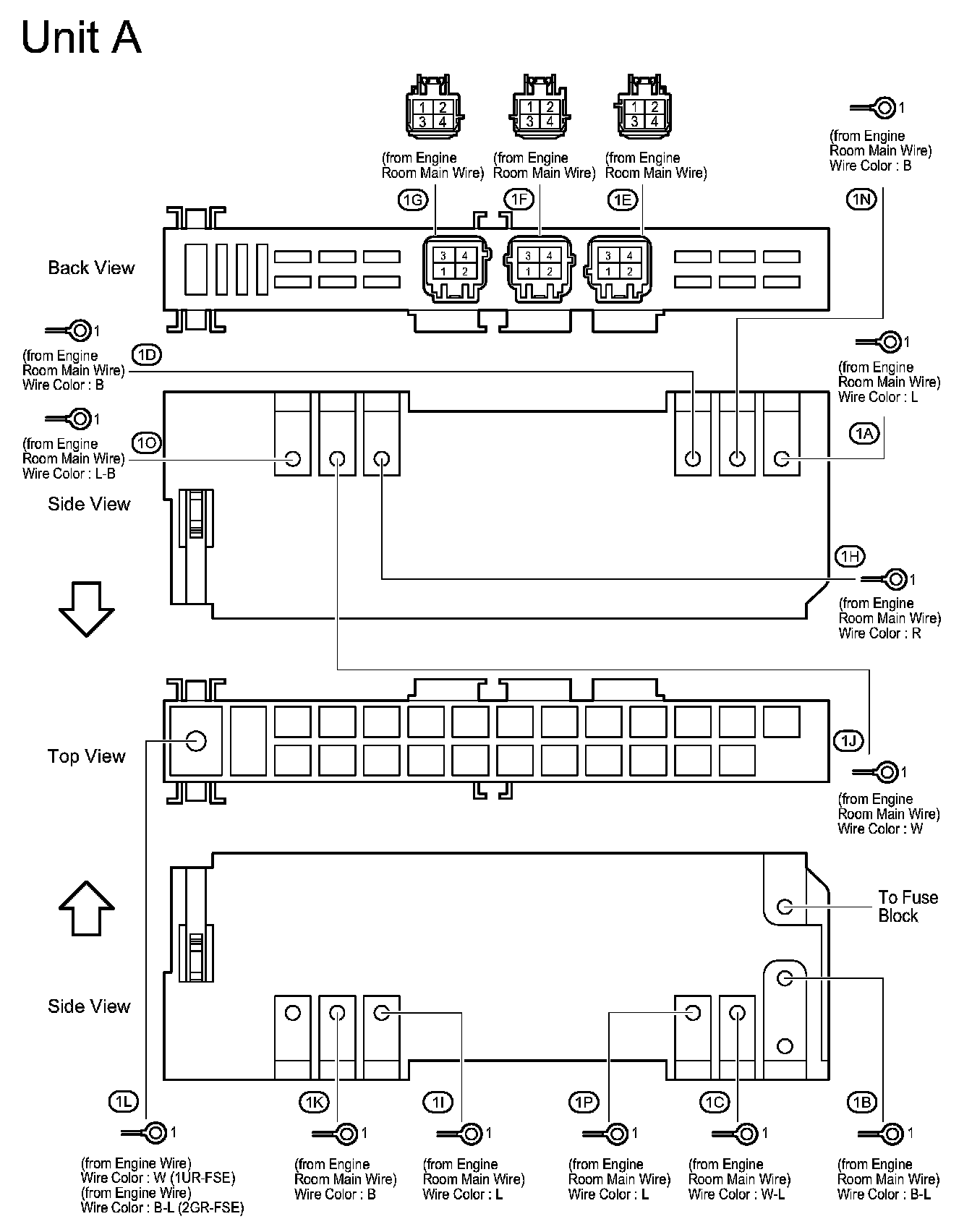

Engine Room R/B No.1, J/B No.1 - Near The Battery:

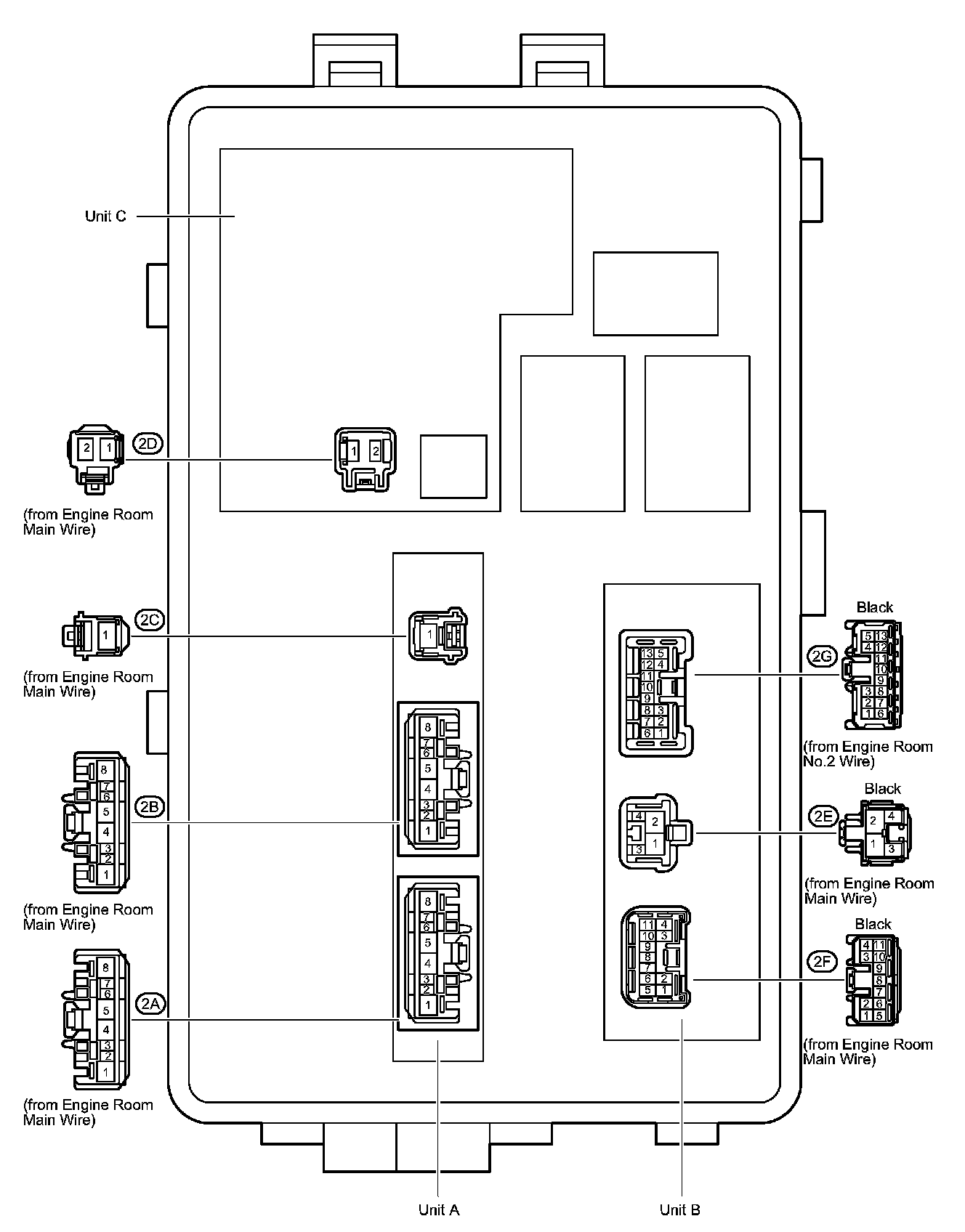

Engine Room R/B No.2, J/B No.2 - Engine Compartment Left:

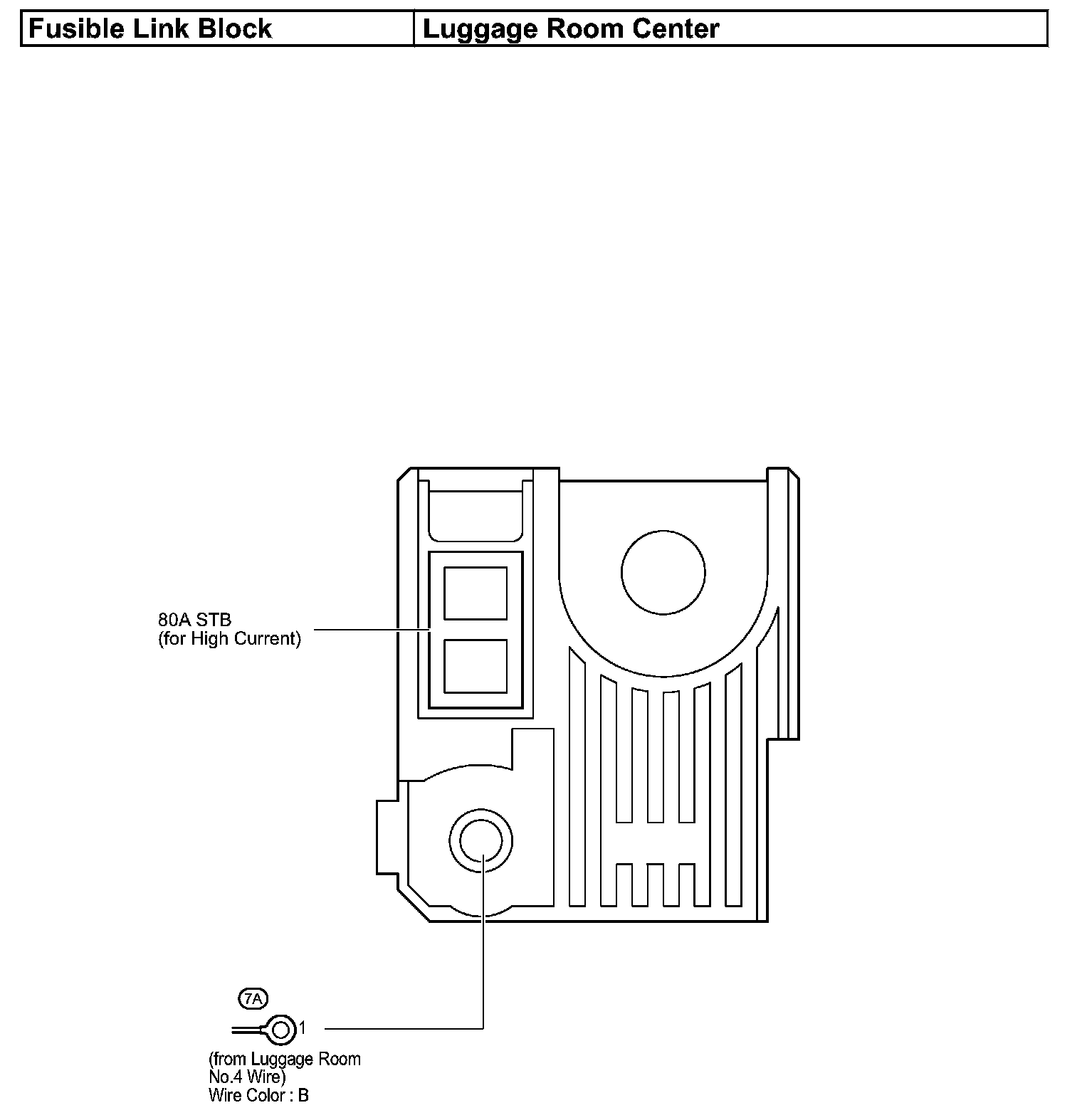

Fusible Link Block - Luggage Room Center:

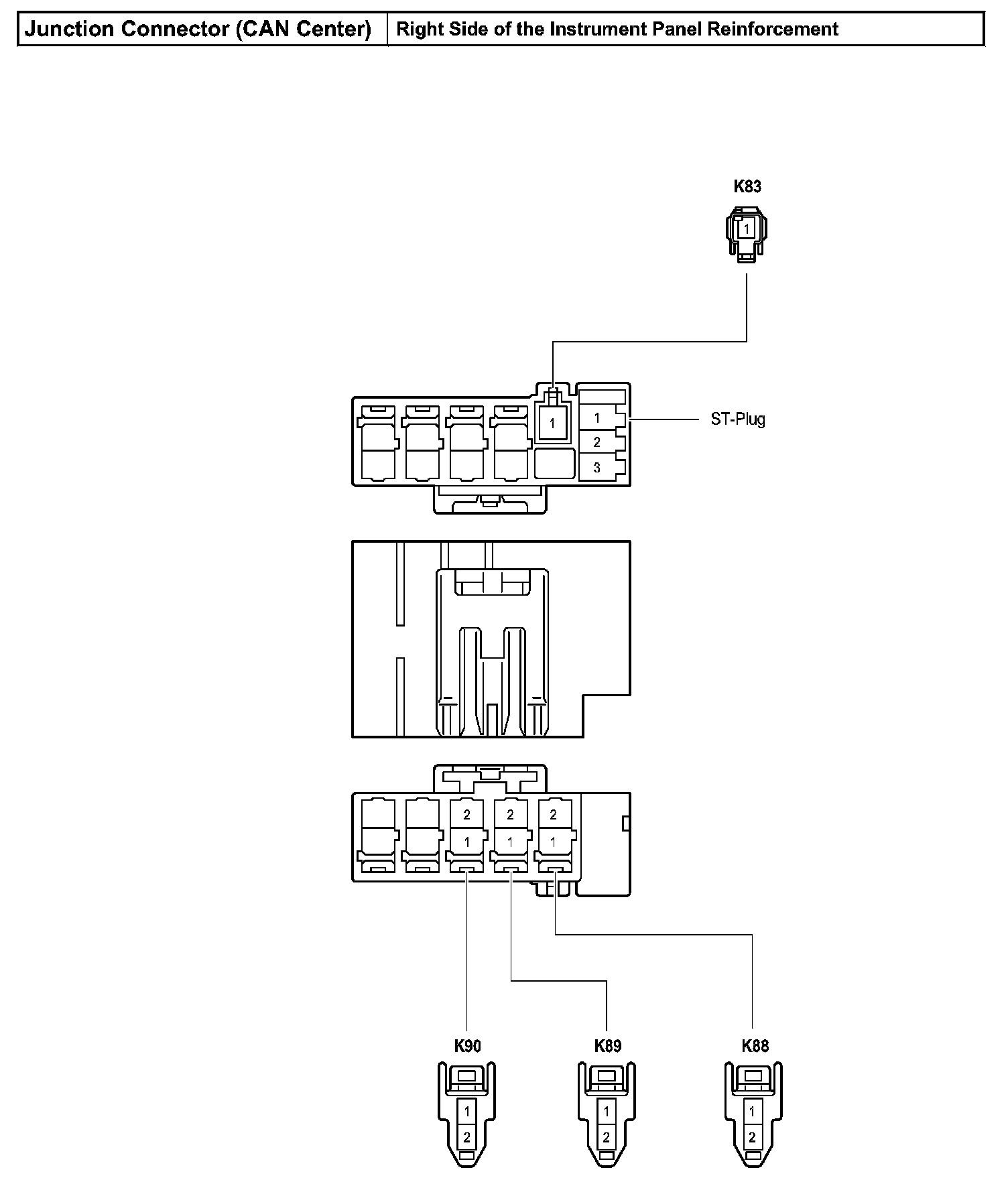

Junction Connector (CAN Center) - Right Side Of The Instrument Panel Reinforcement:

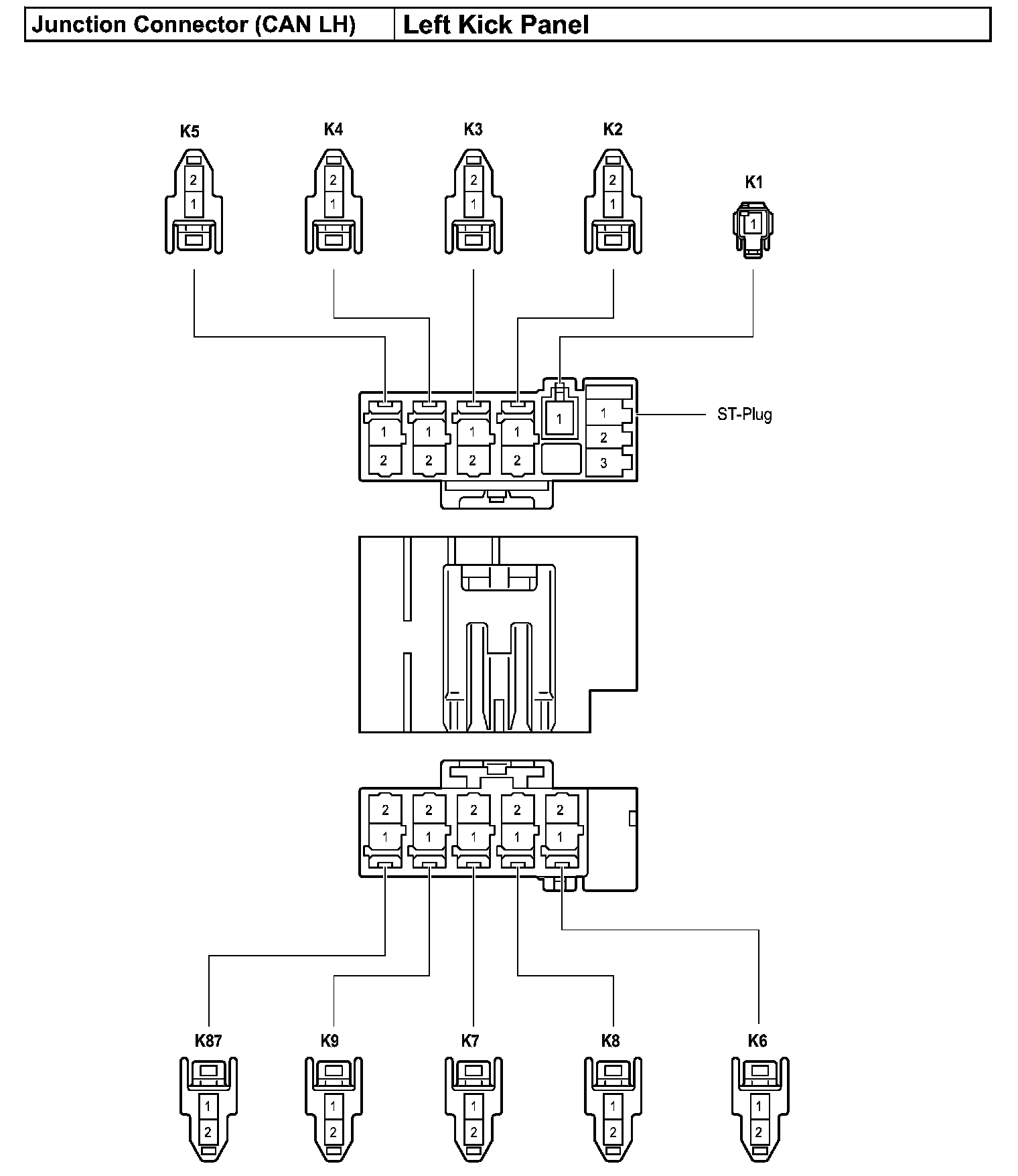

Junction Connector (CAN LH) - Left Kick Panel:

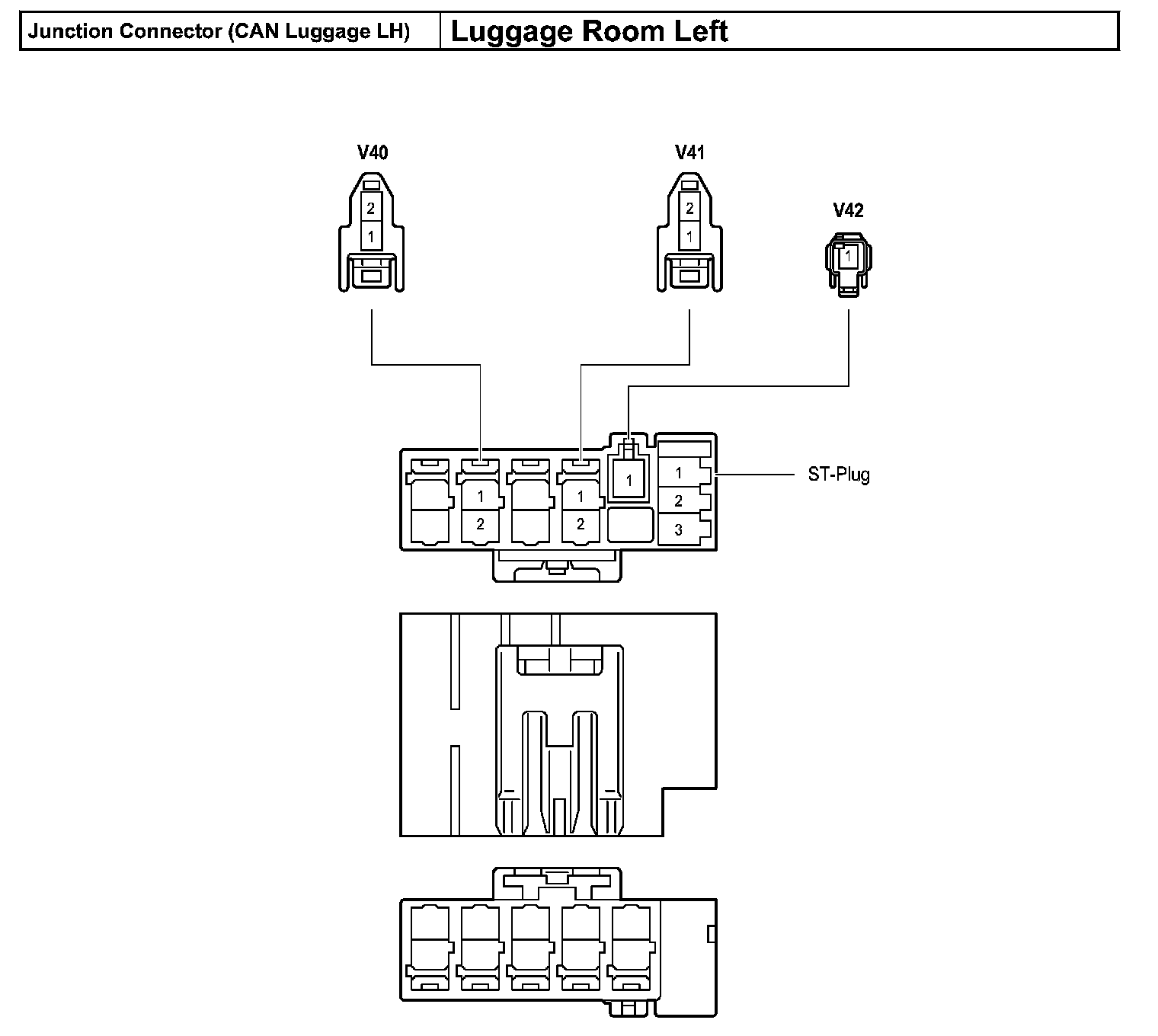

Junction Connector (CAN Luggage LH) - Luggage Room Left:

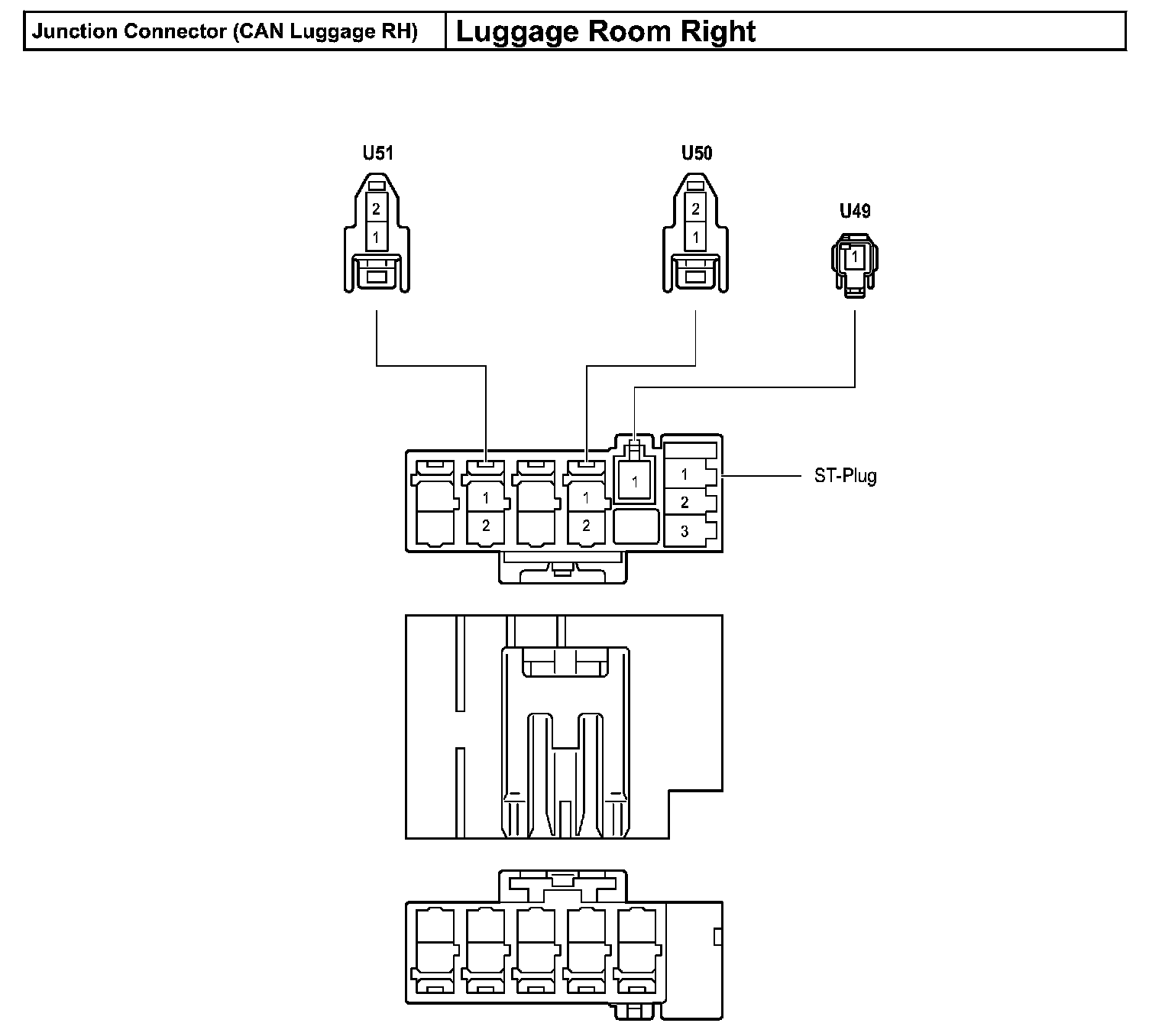

Junction Connector (CAN Luggage RH) - Luggage Room Right:

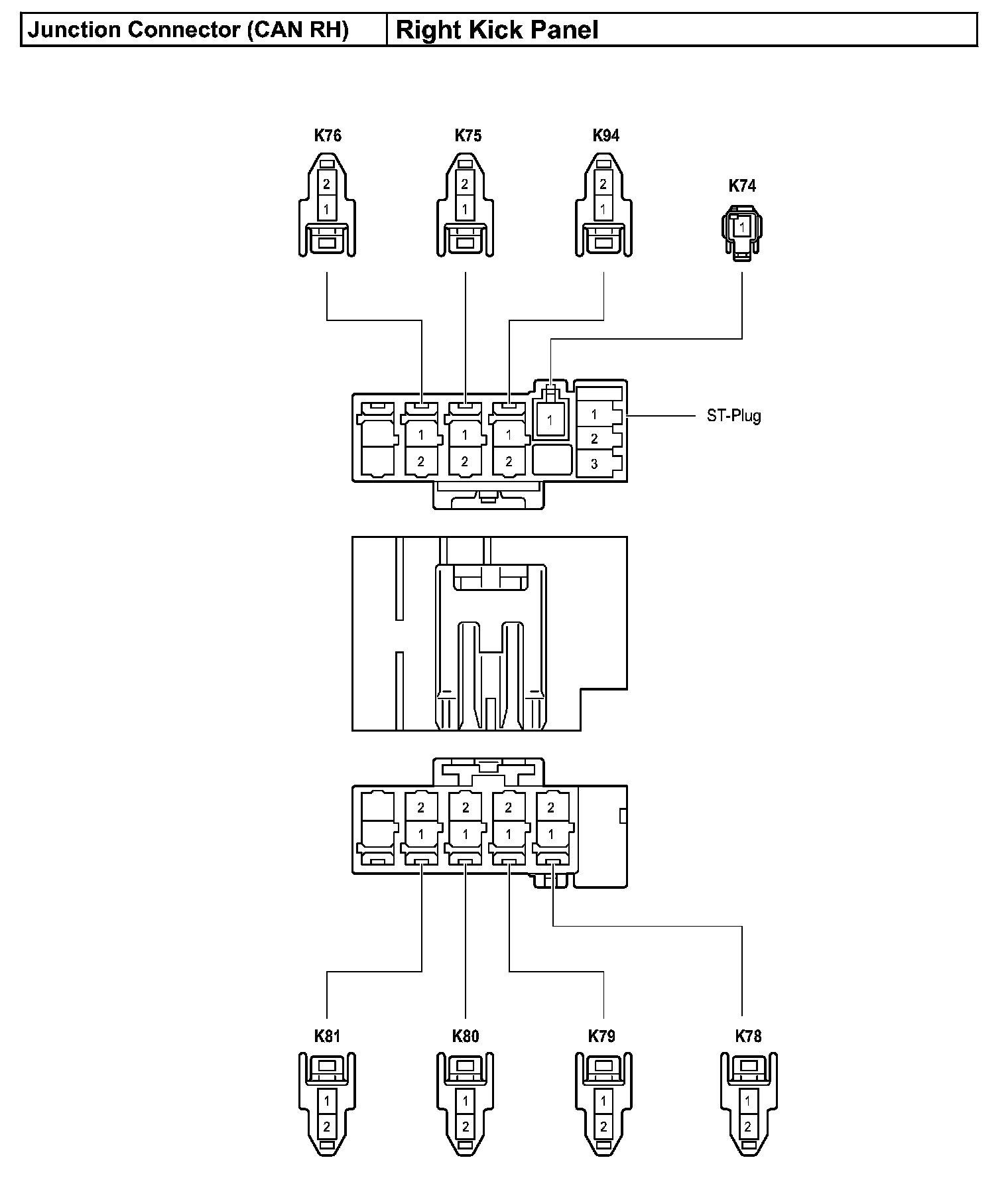

Junction Connector (CAN RH) - Right Kick Panel:

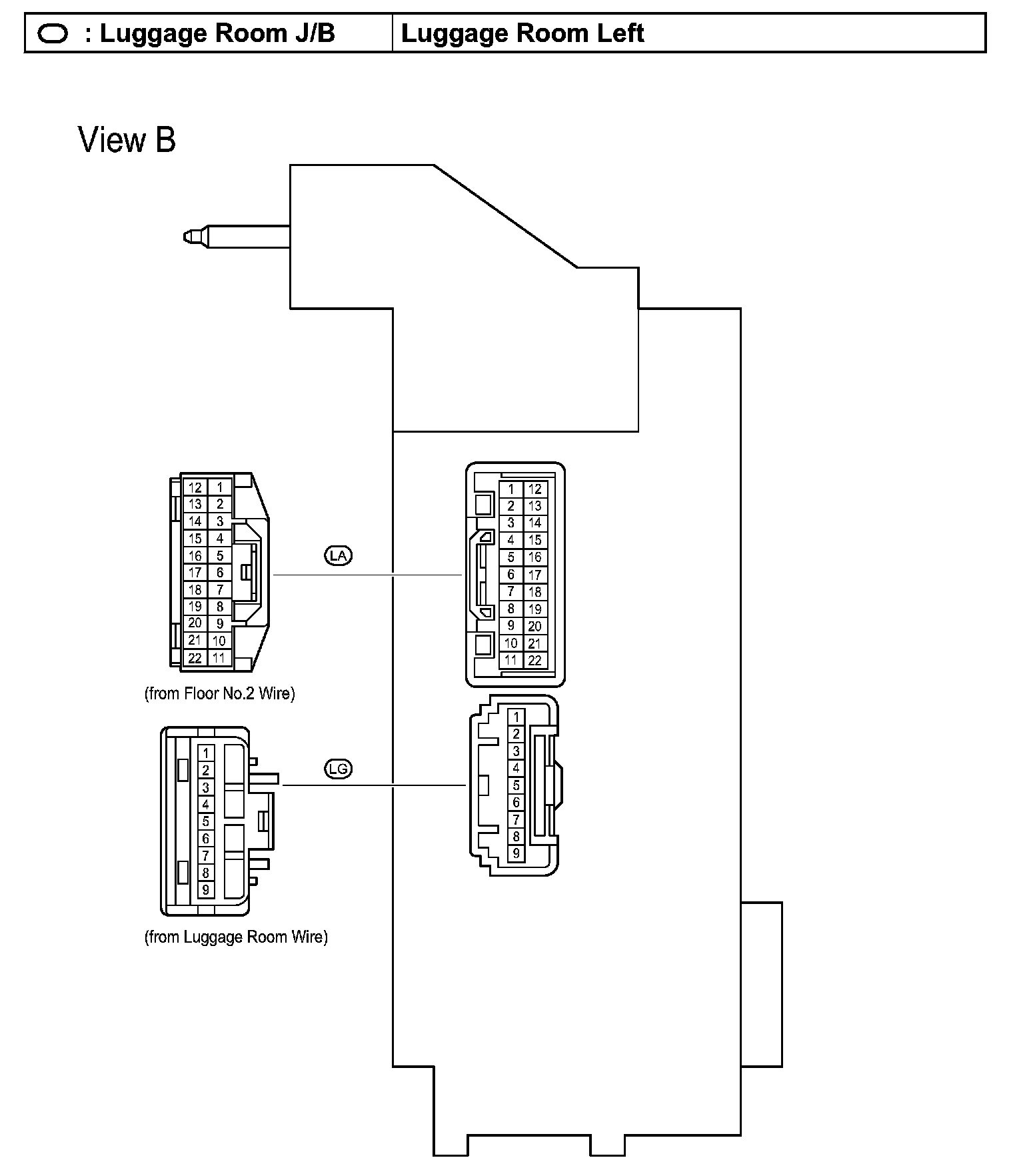

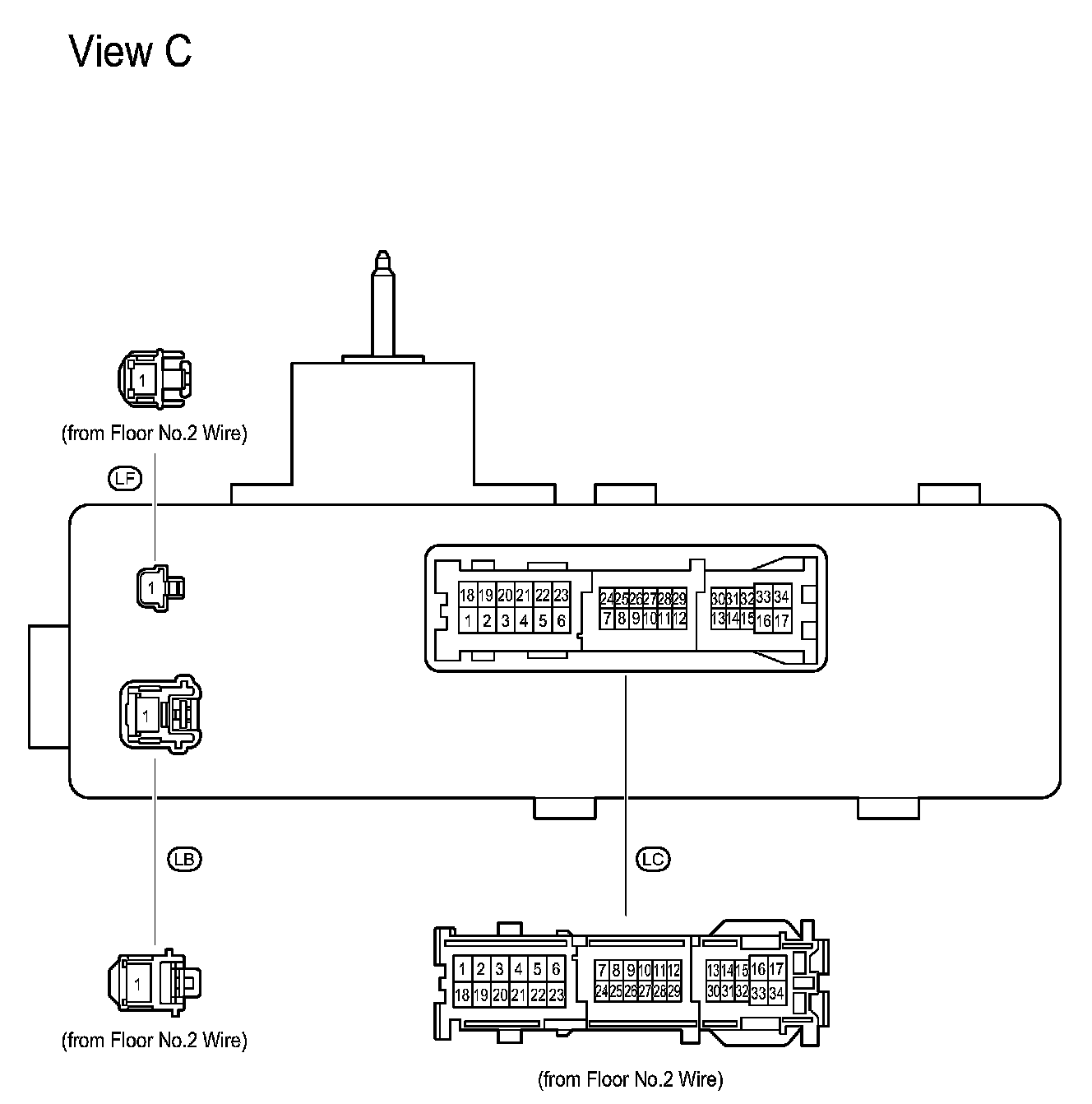

Luggage Room J/B - Luggage Room Left:

Luggage Room J/B - Luggage Room Left:

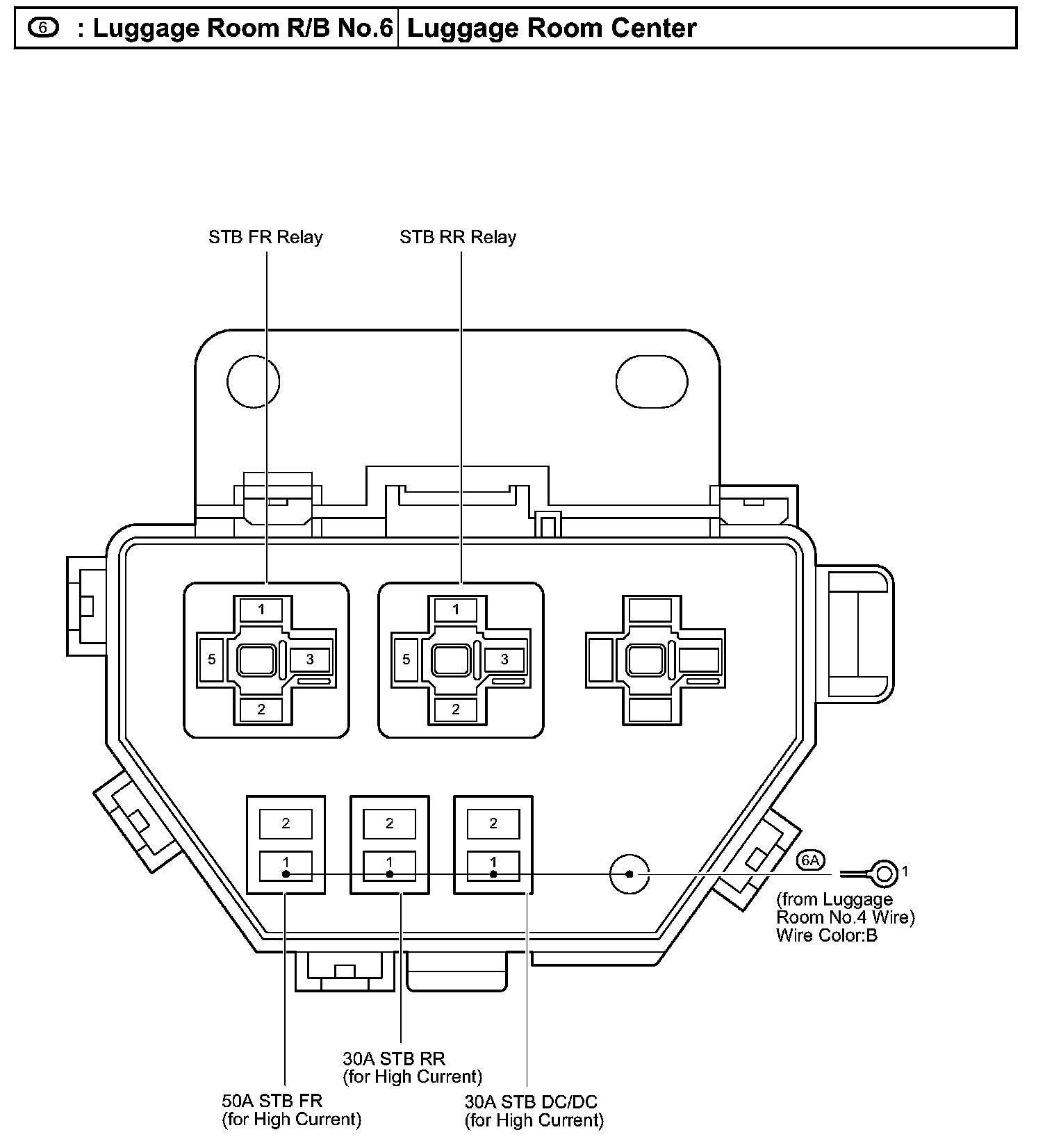

Luggage Room R/B No.6 - Luggage Room Center:
