Home >> Lexus >> 2009 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Locations >> Wire and Wire In Body

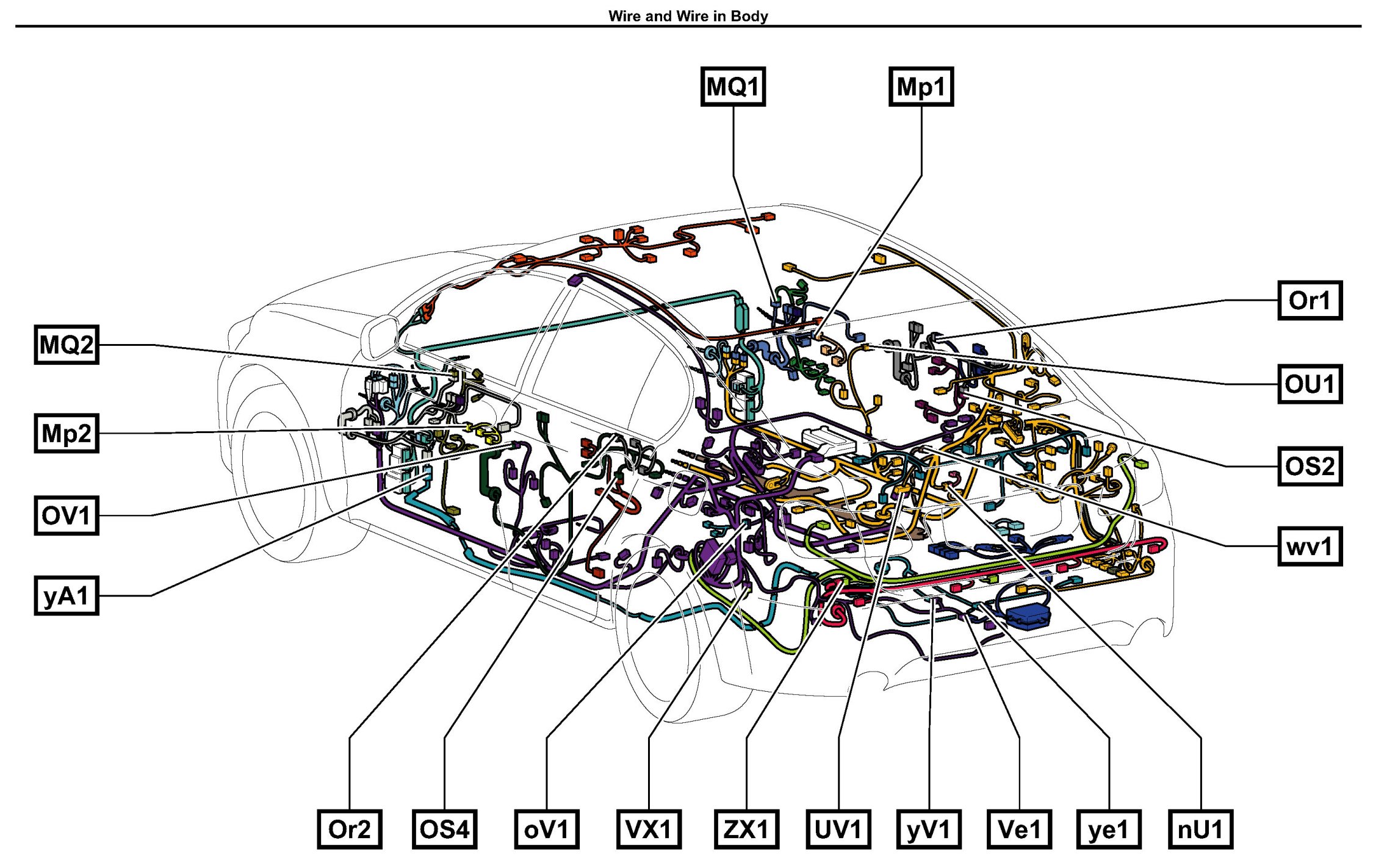

Wire and Wire In Body

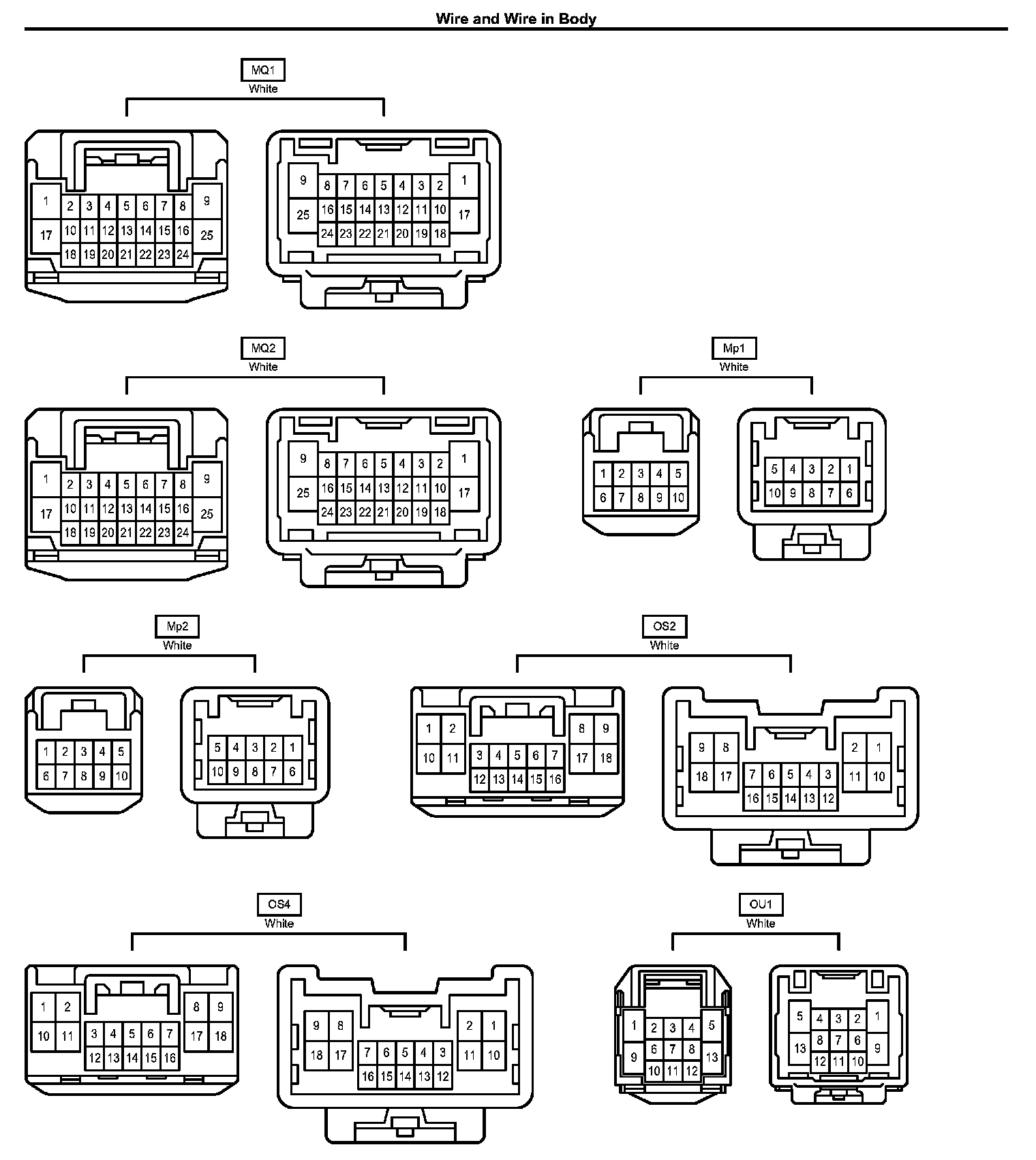

Mp1-ZX1:



Mp1-OU1:

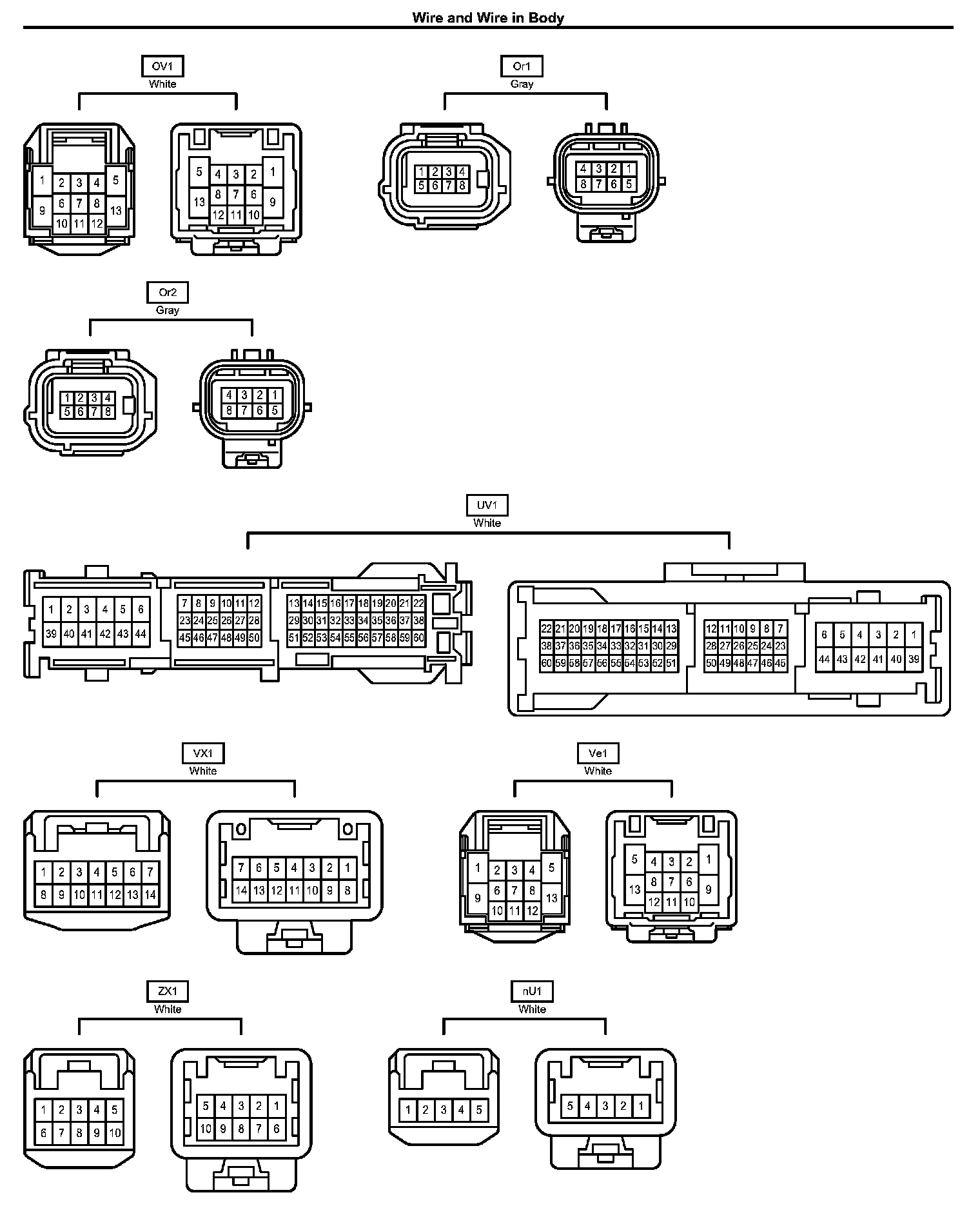

nU1-ZX1:

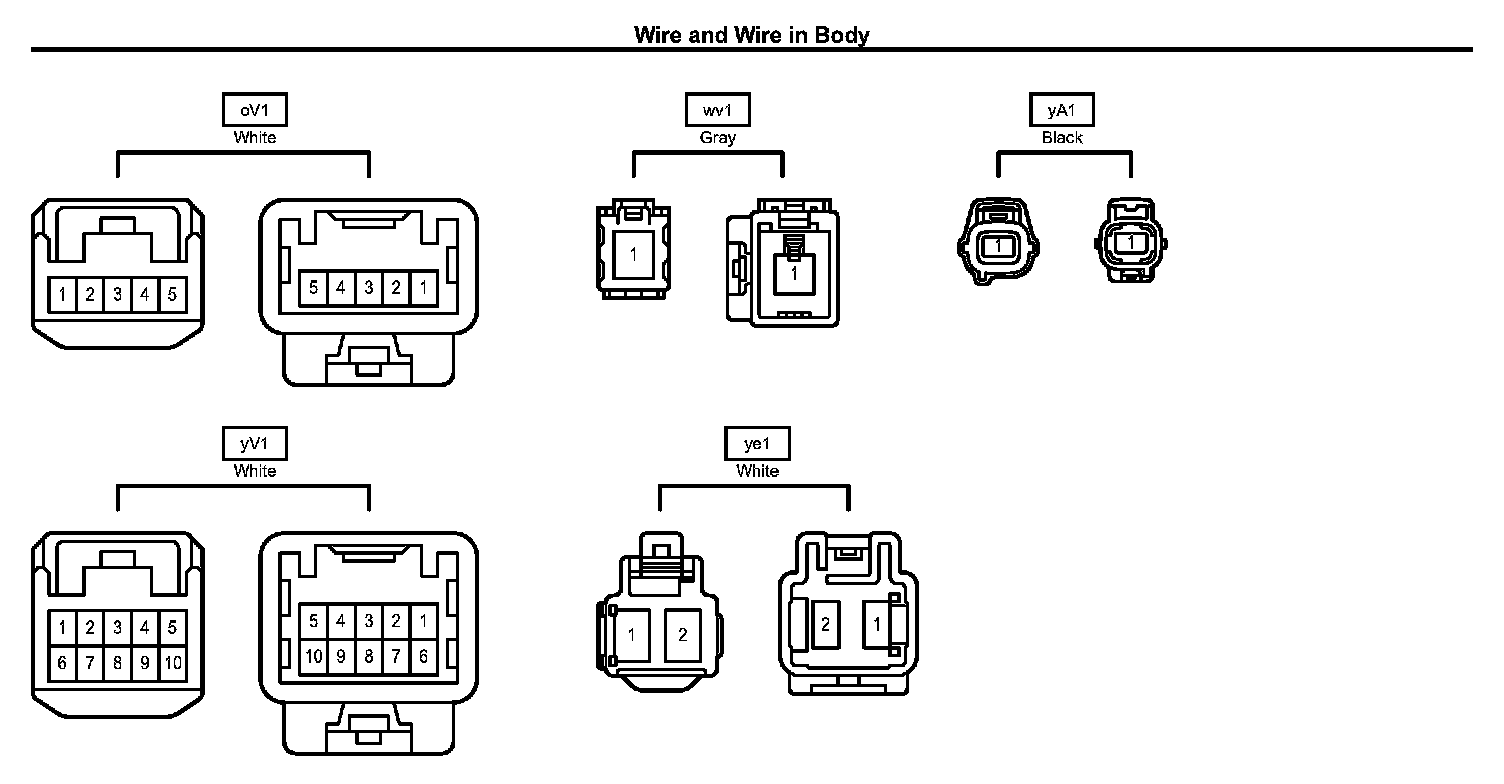

oV1-yV1:
