Standard Bolt - How To Determine Nut Strength
SERVICE SPECIFICATIONS: STANDARD BOLT: HOW TO DETERMINE NUT STRENGTH
HOW TO DETERMINE NUT STRENGTH

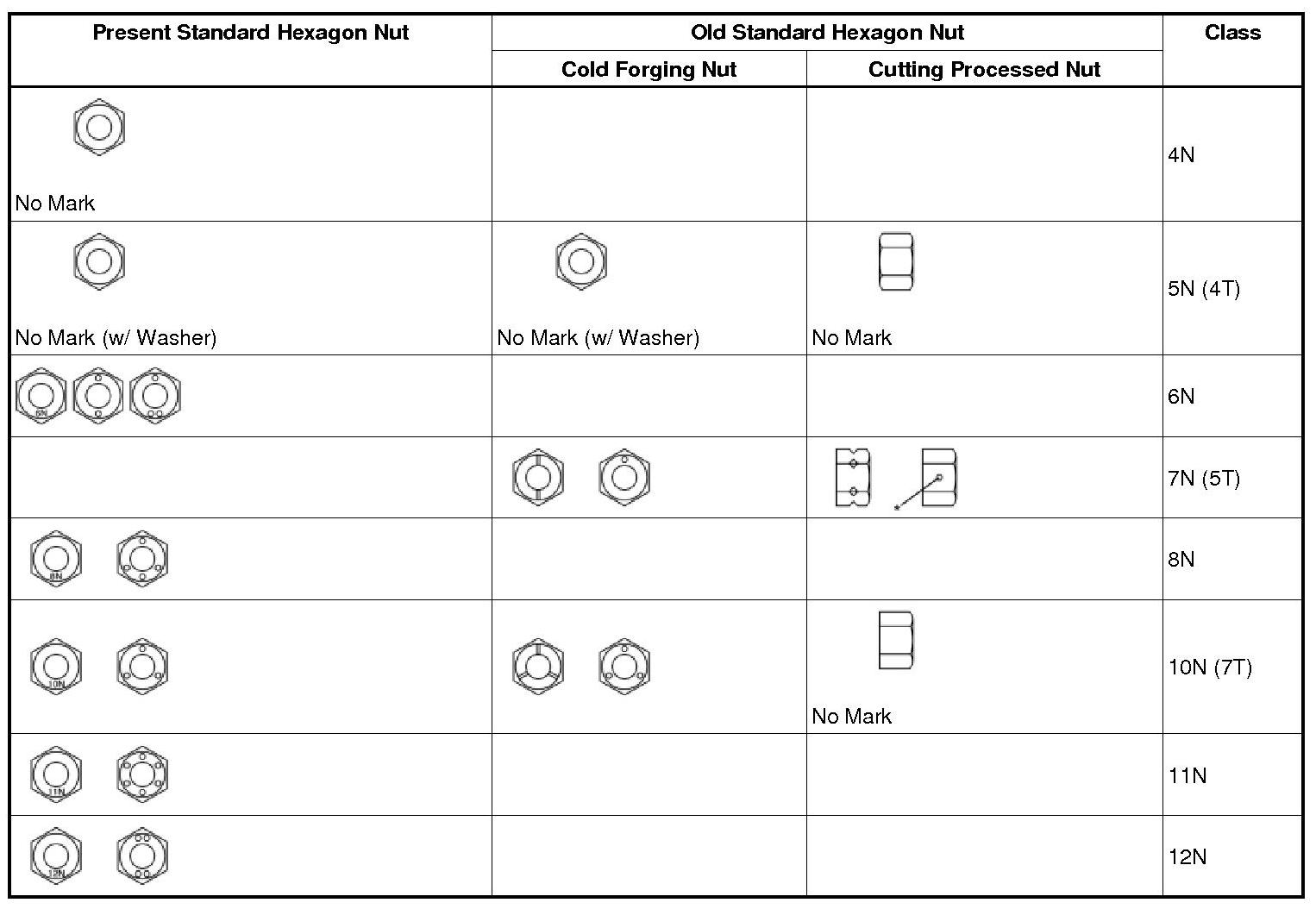

Nut Type
HINT:
- *: Nut with 1 or more marks on one side surface of the nut.
- Use the nut with the same number of the nut strength classification or greater than the bolt strength classification number when tightening parts with a bolt and nut.
Example:
- Bolt = 4T
- Nut = 4N or more
