Torque Specifications

SERVICE SPECIFICATIONS: 2GR-FSE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

Cylinder Head

Bank 1:

Bank 2:

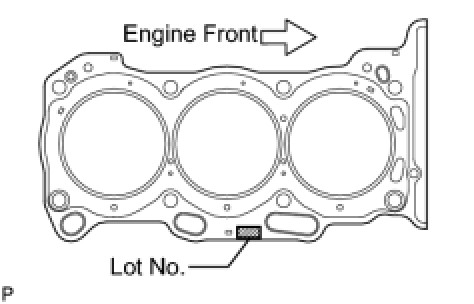

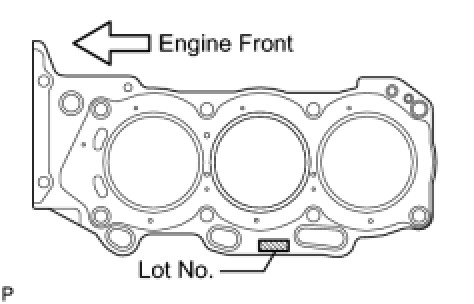

Place the cylinder head gasket on the cylinder block surface with the Lot No. stamp facing upward.

HINT: The cylinder head bolts are tightened in 3 progressive steps.

Bank 1:

Bank 2:

Step 1

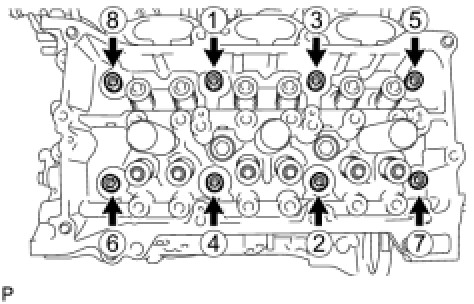

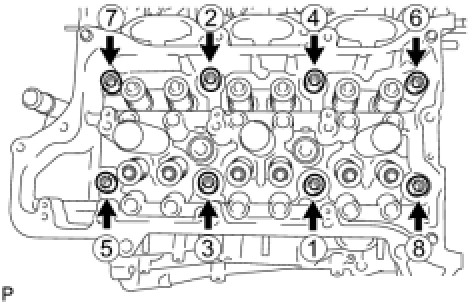

(1) Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 8 cylinder head bolts with the plate washers in several steps, in the sequence shown in the illustration.
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)





Step 2

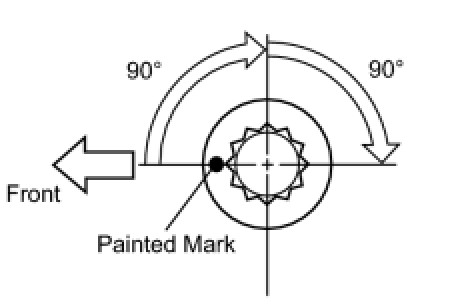

(1) Mark each cylinder head bolt head with paint as shown in the illustration.

(2) Tighten the cylinder head bolts another 90° in the sequence shown in step 1.

Step 3

(1) Tighten the cylinder head bolts by an additional 90° in the sequence shown in step 1.

(2) Check that the painted marks are now facing rearward.

Bank 2:

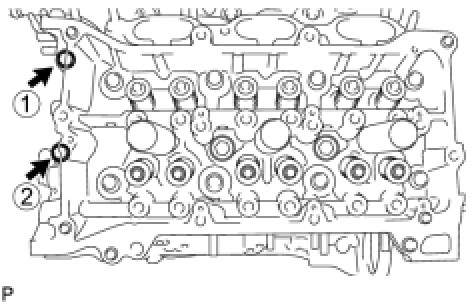

Uniformly install the 2 bolts in the sequence shown in the illustration.
Torque: 30 Nm (306 kgf-cm, 22 ft-lbf)

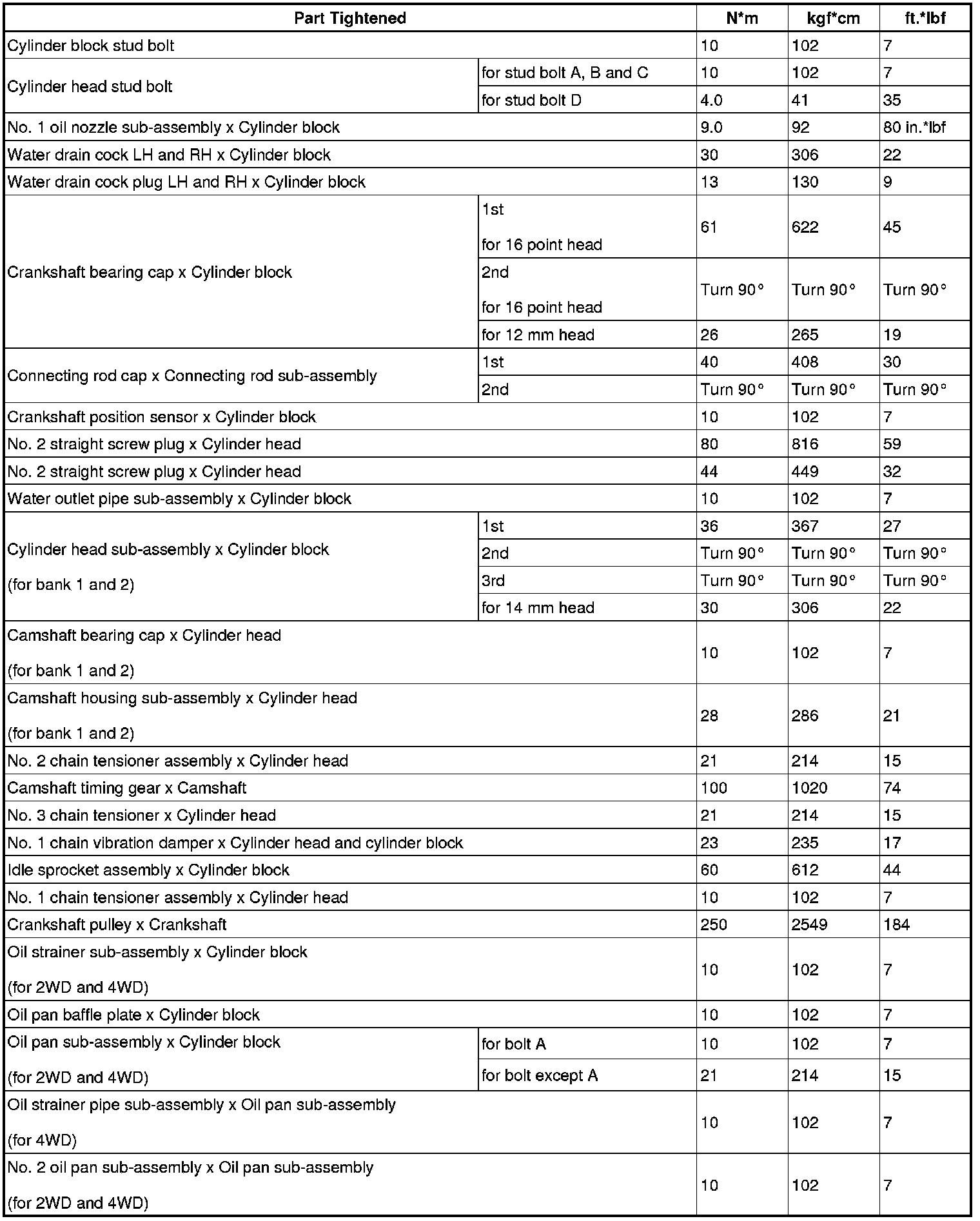

TORQUE SPECIFICATIONS

DRIVE BELT





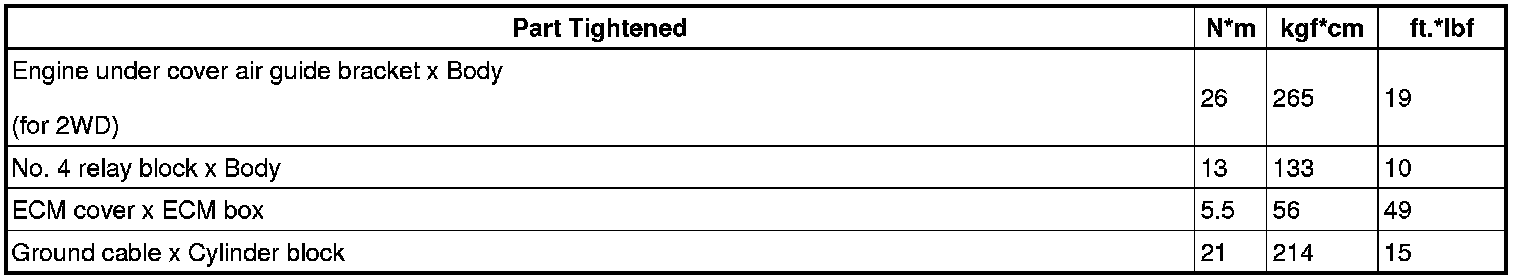

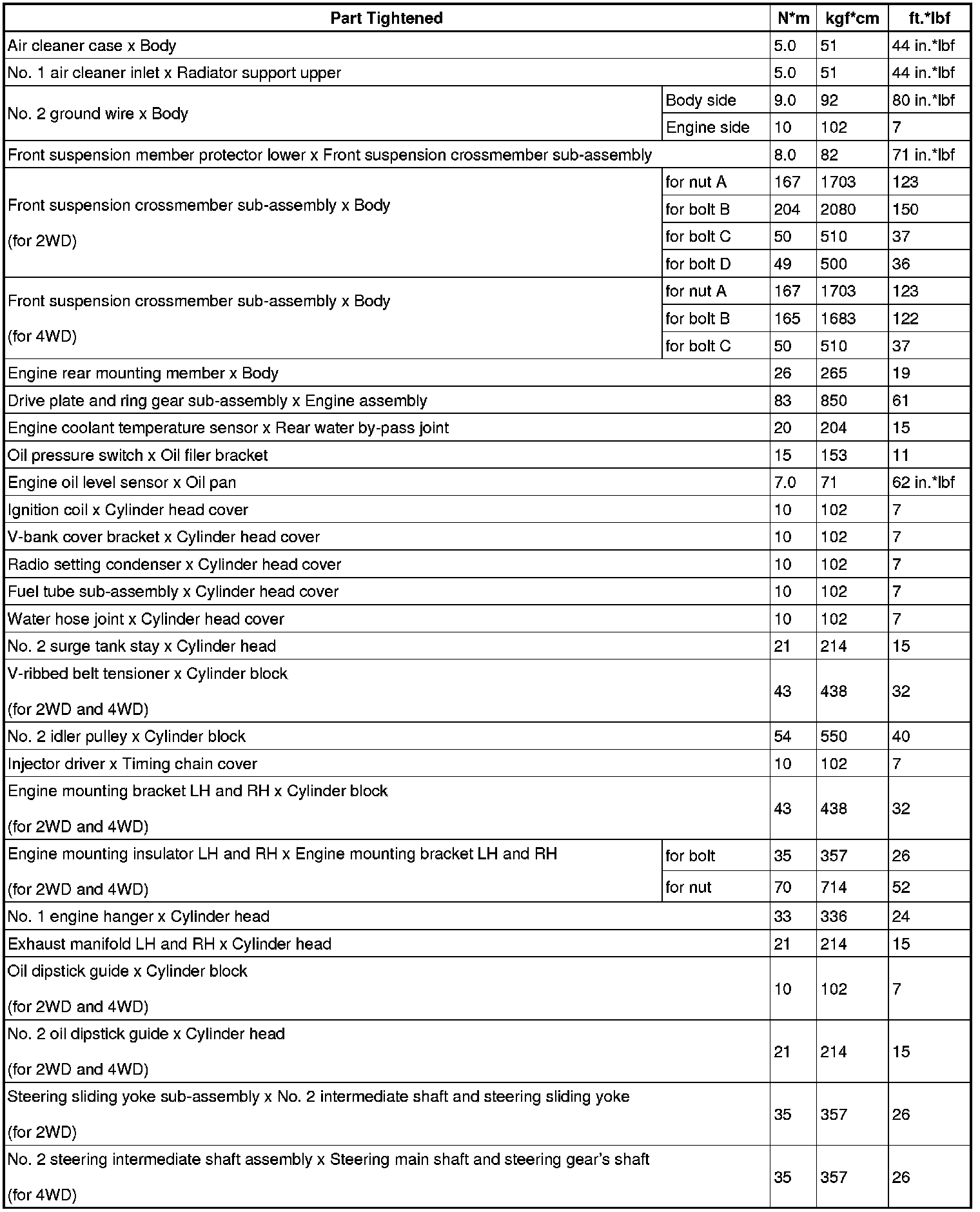

ENGINE ASSEMBLY









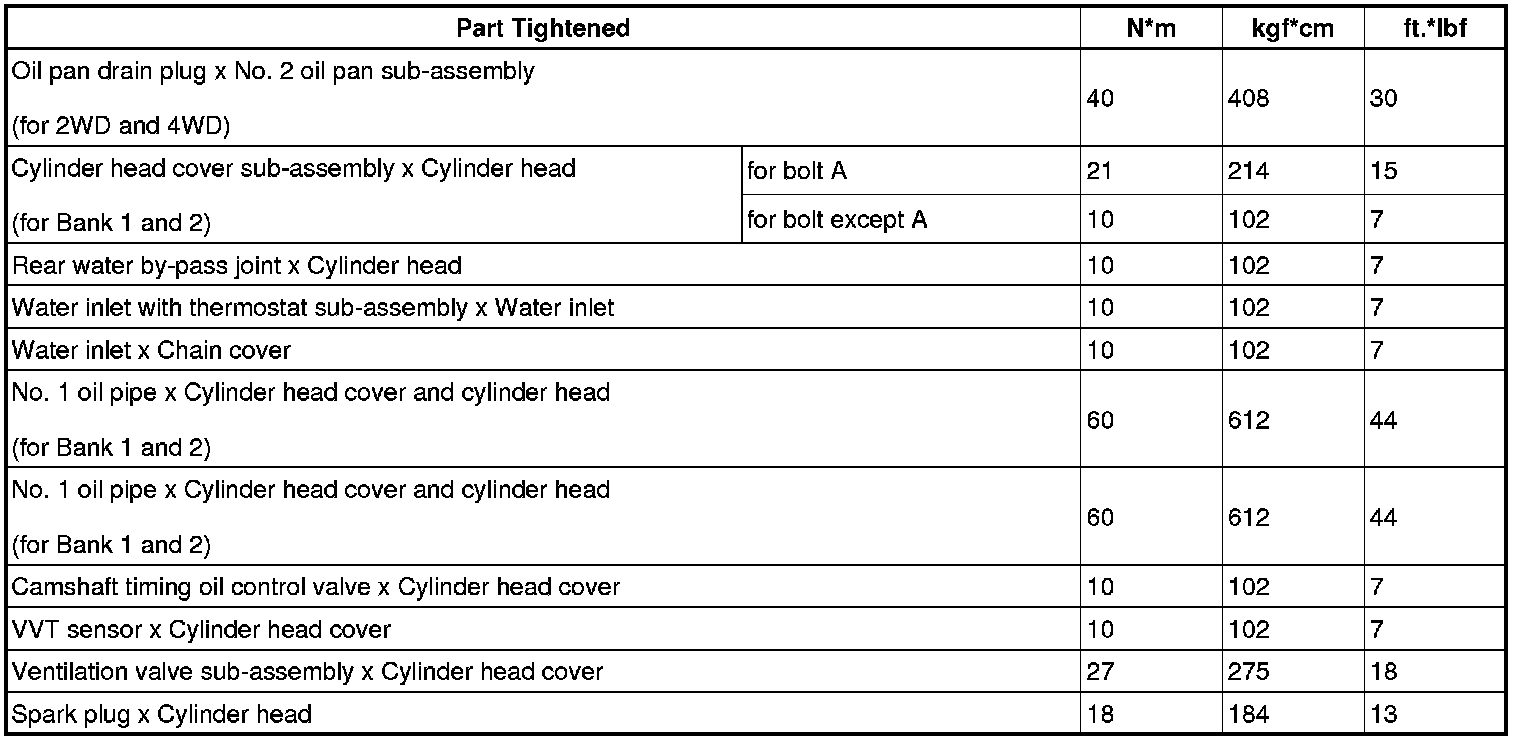

ENGINE UNIT

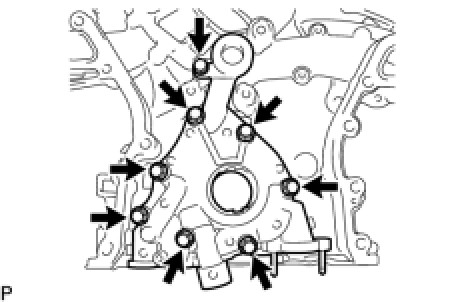

Oil pump cover Torque: 9.1 Nm (93 kgf-cm, 81 in-lbf)

Water Pump
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
