Torque Specifications








SERVICE SPECIFICATIONS: 2GR-FSE LUBRICATION: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

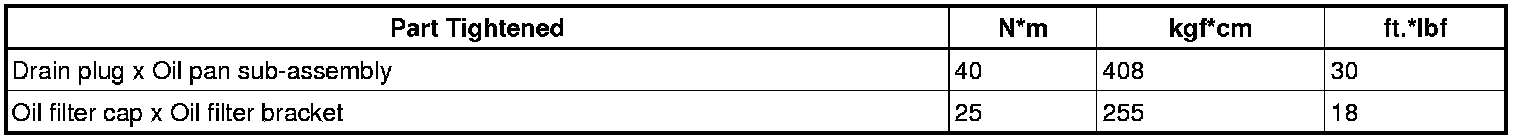

LUBRICATION SYSTEM





OIL FILTER (for 2WD and 4WD)

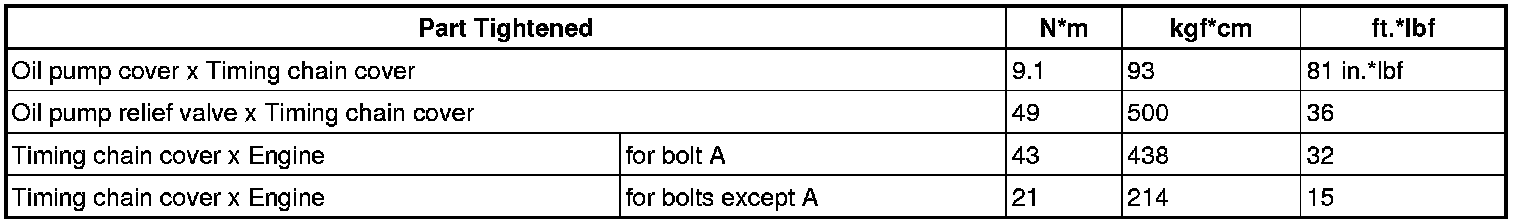

OIL PUMP
