Torque Specifications

SERVICE SPECIFICATIONS: A760H AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

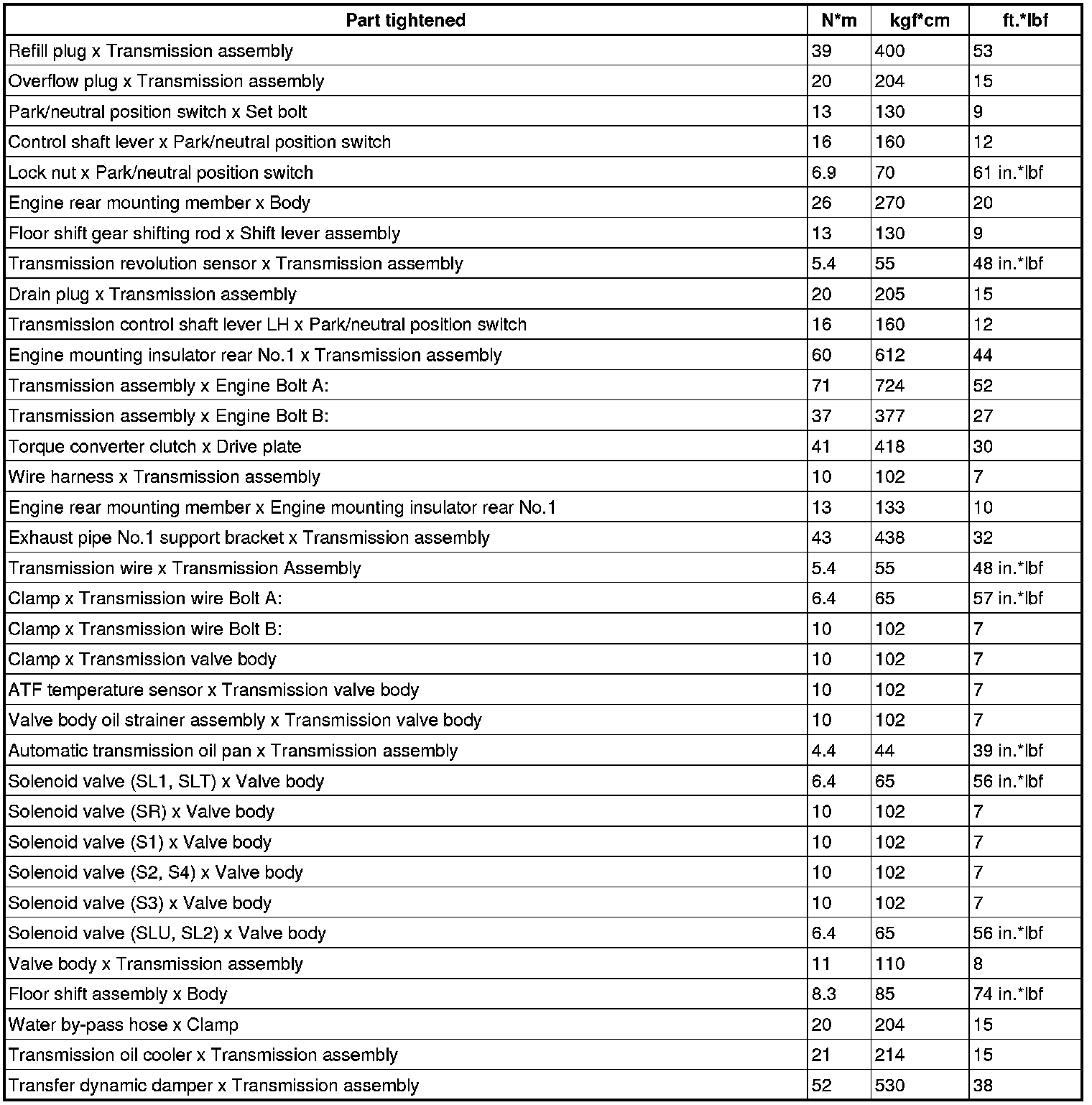

Automatic Transmission Assembly

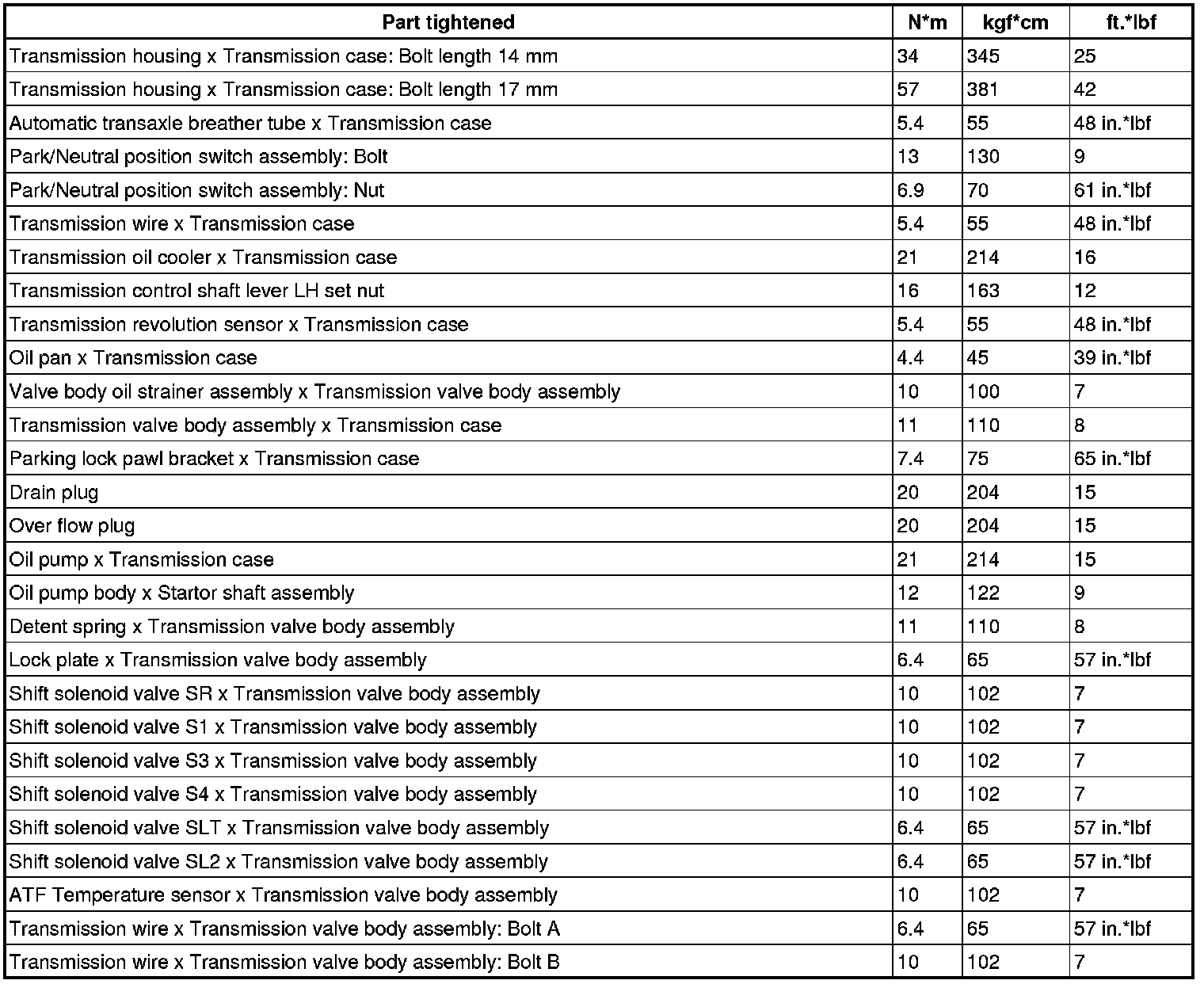

Automatic Transmission Unit
