AA80E Automatic Transmission System
AA80E Automatic Transmission System

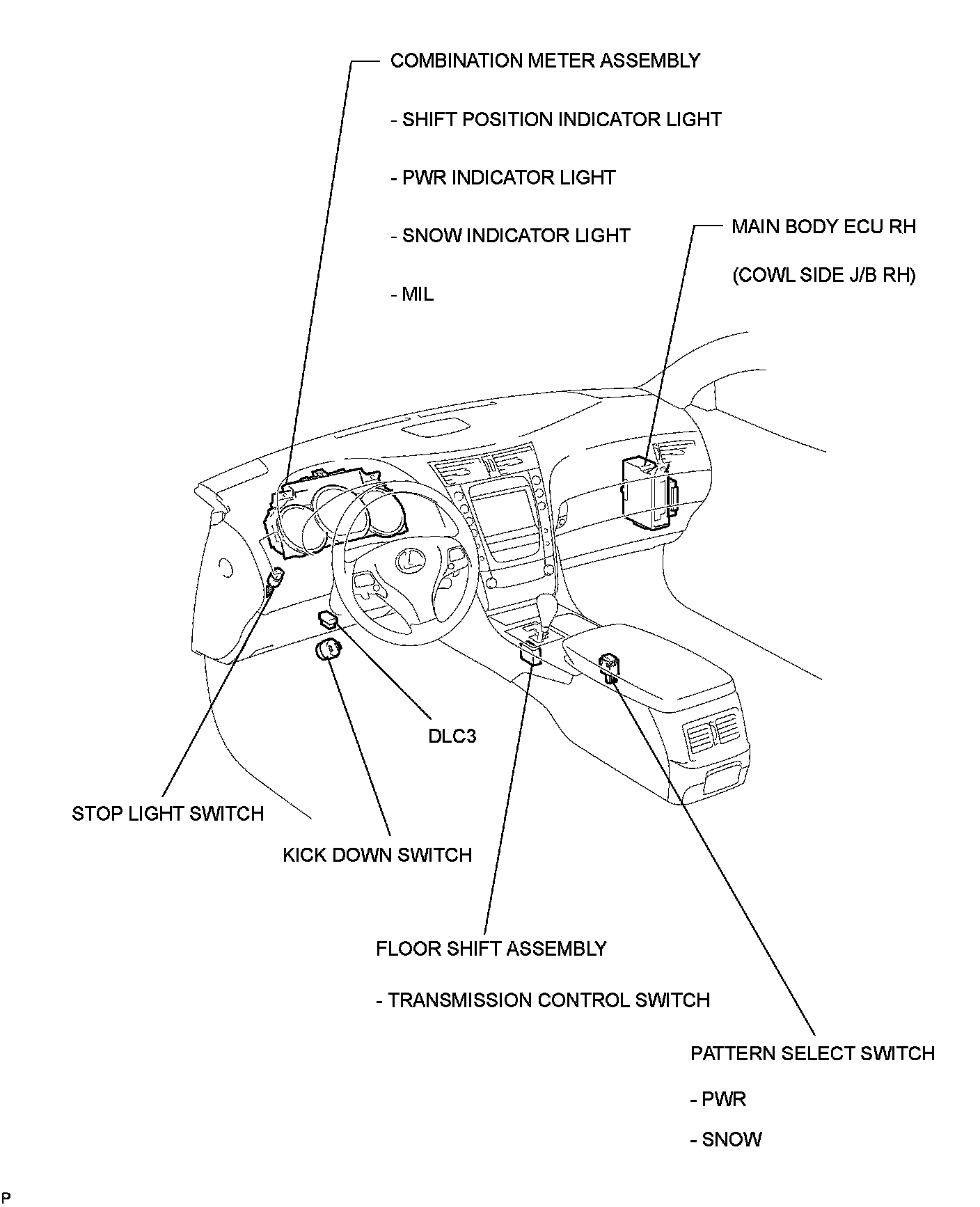

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
