Removal

A760H AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: REMOVAL

REMOVAL

1. SEPARATE CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT EXHAUST PIPE ASSEMBLY
Removal
3. REMOVE PROPELLER W/CENTER BEARING SHAFT ASSEMBLY
Removal
4. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY Removal
5. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY Removal
6. SEPARATE ENGINE REAR MOUNTING MEMBER Removal
7. REMOVE NEUTRAL START SWITCH ASSEMBLY





(a) Tilt down the transmission.

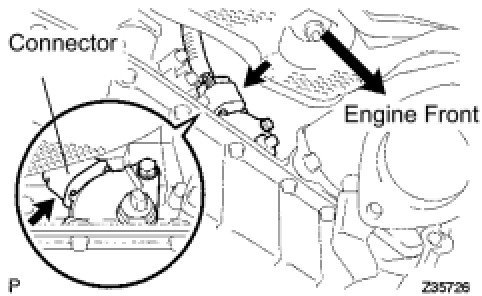

(b) Disconnect the neutral start switch connector.

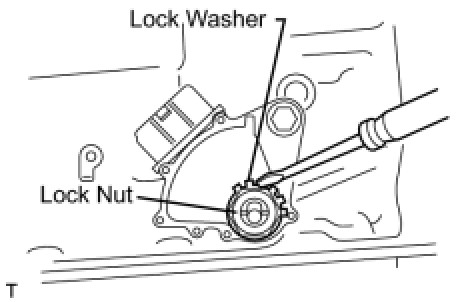

(c) Using a screwdriver, unstake the lock washer.
(d) Remove the lock nut and lock washer.

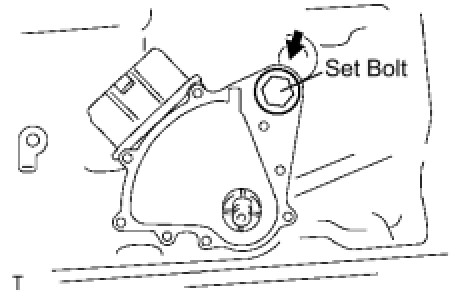

(e) Remove the bolt and neutral start switch assembly.
