A760E AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 2 ENGINE UNDER COVER
3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Move the shift lever to the N position.





(b) Disconnect the park/neutral position switch connector.





(c) Remove the nut and transmission control shaft lever.

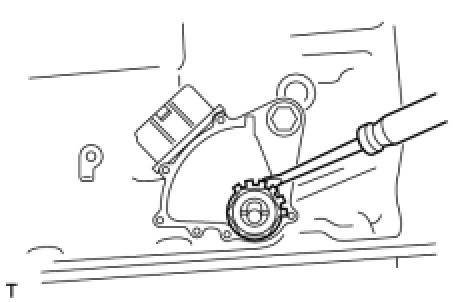

(d) Using a screwdriver, bend the tabs of the lock washer.





(e) Remove the lock nut and lock washer.





(f) Remove the bolt and park/neutral position switch.
