Removal

2GR-FSE FUEL: FUEL PRESSURE SENSOR: REMOVAL

REMOVAL

1. PRECAUTION Removal
2. DISCHARGE FUEL SYSTEM PRESSURE Removal
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

4. REMOVE COOL AIR INTAKE DUCT SEAL Removal
5. REMOVE ENGINE ROOM SIDE COVER LH Removal
6. REMOVE ENGINE ROOM SIDE COVER RH Removal
7. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
8. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH Removal
9. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH Removal
10. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Removal
11. REMOVE FRONT FENDER TO COWL SIDE SEAL RH Removal
12. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal
13. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal
14. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal
15. DRAIN ENGINE COOLANT Service and Repair
16. DISCONNECT NO. 2 VENTILATION HOSE Removal
17. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Removal
18. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY Removal
19. REMOVE INTAKE AIR SURGE TANK Removal
20. REMOVE INTAKE MANIFOLD Removal
21. DISCONNECT WATER HOSE JOINT Removal
22. REMOVE NO. 1 FUEL PIPE Removal

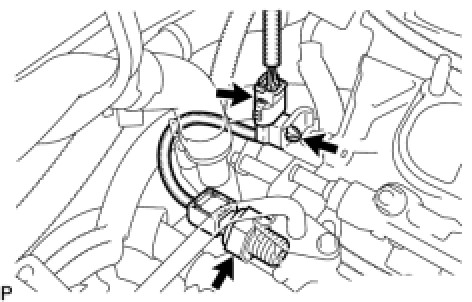

23. REMOVE FUEL PRESSURE SENSOR
(a) Disconnect the connector and clamp.
(b) Remove the fuel pressure sensor and gasket.
