Combination Switch: Testing and Inspection

LIGHTING: TURN SIGNAL LIGHT SWITCH: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. CHECK TURN SIGNAL FLASHER ASSEMBLY

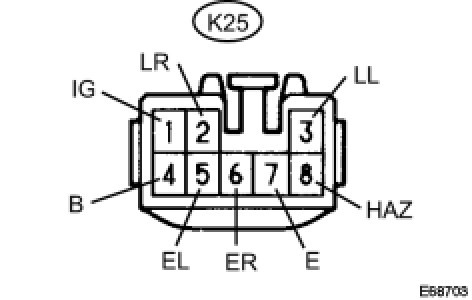

(a) Disconnect the K25 connector.
(b) Measure the voltage of the wire harness side connector.

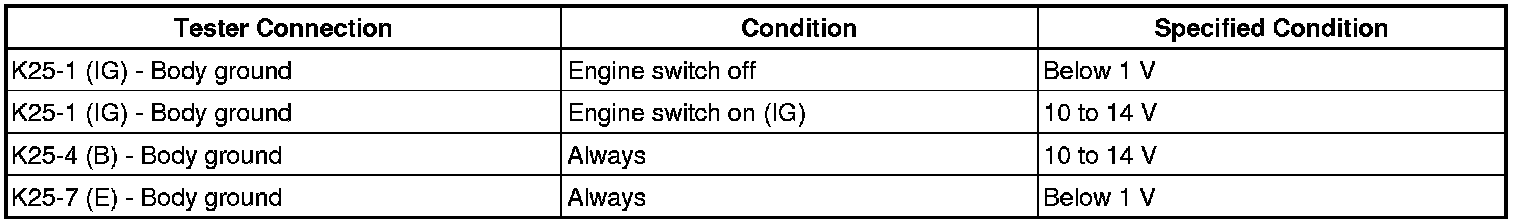

Standard voltage:






(c) Reconnect the connector.
(d) Measure the voltage of the connector.

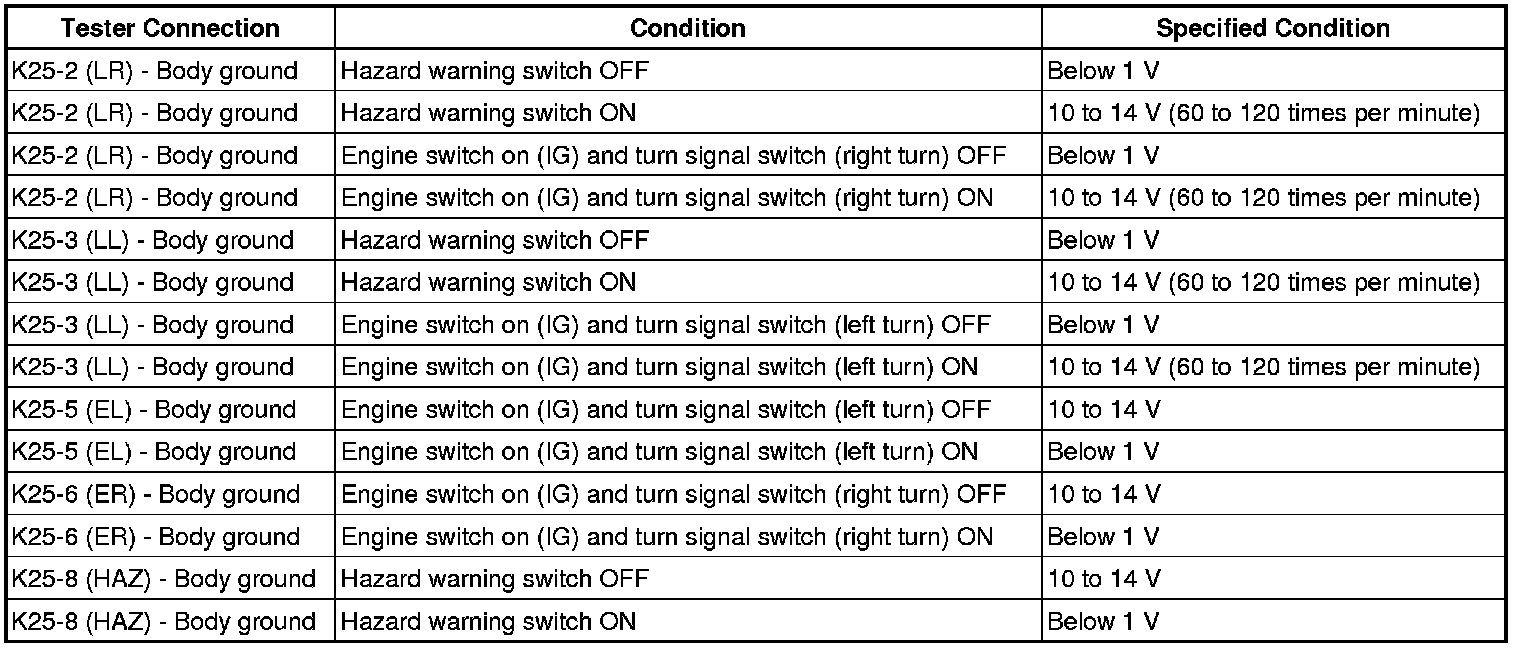

Standard voltage:





If the result is not as specified, replace the flasher assembly.
