Inspection

LIGHTING: STOP LIGHT SWITCH: INSPECTION

INSPECTION

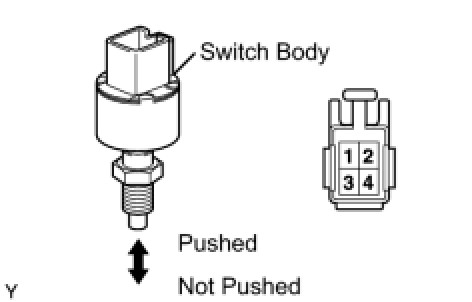

1. INSPECT STOP LIGHT SWITCH ASSEMBLY
(a) Disconnect the switch.
(b) Measure the resistance of the switch.

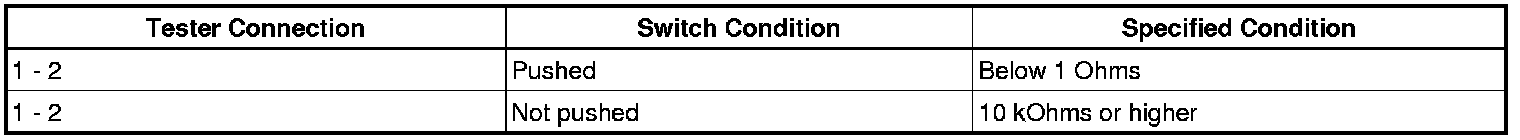

Standard resistance:





If the result is not as specified, replace the switch assembly.
