Installation

AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AMBIENT TEMPERATURE SENSOR

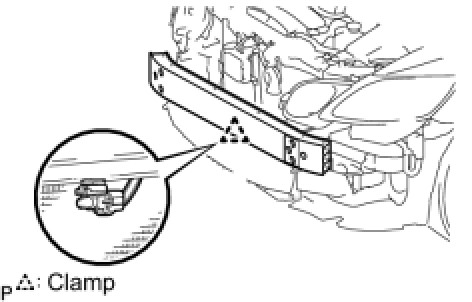

(a) Install the sensor with the clamp.
(b) Connect the connector.
2. INSTALL FRONT BUMPER COVER Installation
3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
