BRAKE CONTROL: FRONT SPEED SENSOR (for 2WD): REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are the LH side.

1. REMOVE FRONT WHEEL
2. DISCONNECT SPEED SENSOR FRONT LH

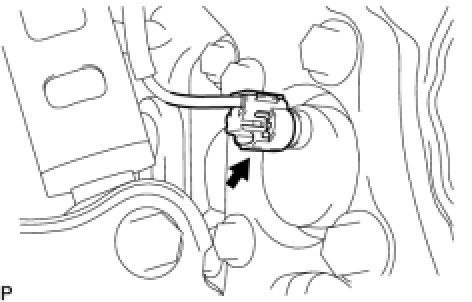

(a) Disconnect the speed sensor connector from the speed sensor front LH.
- Be careful not to damage the speed sensor.
- Prevent foreign matter from adhering to the speed sensor.

3. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY LH Removal
4. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH Removal
5. REMOVE SPEED SENSOR FRONT LH
(a) Install the 3 hub bolts. Placing an aluminum plate below the hub and bearing assembly, hold them in a vise.
NOTE:
Replace the hub and bearing assembly if it is dropped or receives a strong shock.

(b) Remove the 2 pins from the SST (09520-00031) and separate the attachment (09521-00010) using a pin punch (3 mm) or hammer.
SST: 09520-00031

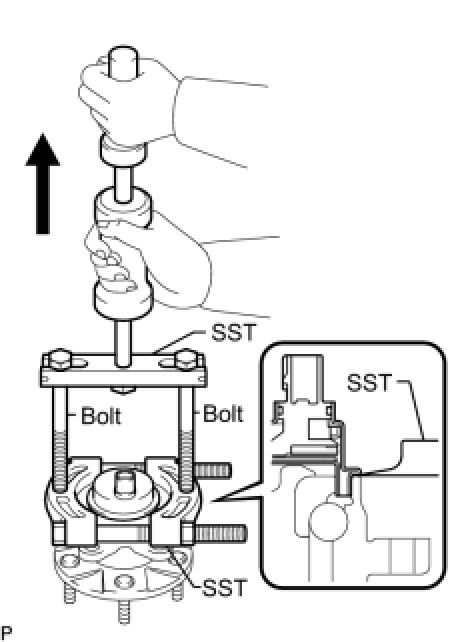

(c) Remove the skid control sensor from the hub and bearing assembly using the SST and 2 bolts (90101-12007).
SST: 09520-00031
09520-00040
SST: 09521-00020
SST: 09950-00020
- Keep the sensor away from magnets.
- Pull the skid control sensor off straight, taking care not to make contact with the skid control sensor rotor.
- If the speed sensor rotor is damaged or deformed, replace the hub and bearing assembly.
- Do not scratch the area where the skid control sensor contacts the hub and bearing assembly.
- Do not attach foreign matter to the speed sensor rotor.
