BRAKE CONTROL: STEERING ANGLE SENSOR: REMOVAL

REMOVAL

1. PRECAUTION
Service Precautions
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE PLACE FRONT WHEELS FACING STRAIGHT AHEAD
NOTE:
When reconnecting the cable to the negative battery terminal after installing the steering sensor, check that the front tires and steering wheel are kept aligned straight ahead before and after connecting the cable to the negative battery terminal.

4. REMOVE STEERING WHEEL COVER NO.2 LOWER Removal
5. REMOVE STEERING WHEEL COVER NO.3 LOWER Removal
6. REMOVE HORN BUTTON ASSEMBLY Removal
7. REMOVE STEERING WHEEL ASSEMBLY
for 2GR-FSE Removal
for 1UR-FSE Removal
8. REMOVE STEERING COLUMN COVER
for 2GR-FSE Removal
for 1UR-FSE Removal
9. REMOVE SPIRAL CABLE SUB-ASSEMBLY WITH STEERING SENSOR Removal
10. REMOVE STEERING SENSOR

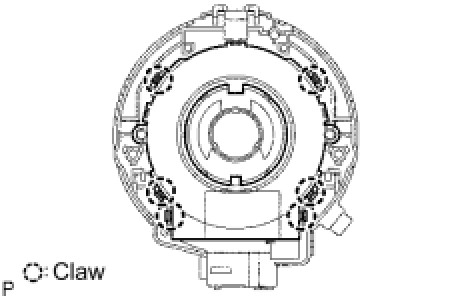

(a) Disengage the claws and remove the steering sensor from the spiral cable sub-assembly with steering sensor.
