BRAKE CONTROL: BRAKE PEDAL STROKE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL BRAKE PEDAL STROKE SENSOR ASSEMBLY
(a) New brake pedal stroke sensor assembly:

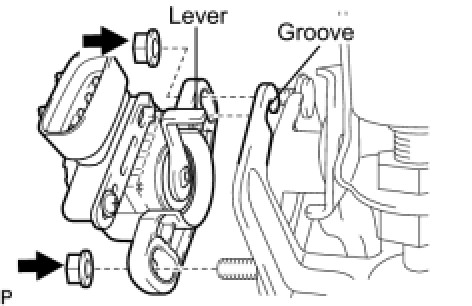

(1) Install the new brake pedal stroke sensor assembly with the 2 nuts.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf)
NOTICE:
- Engage the brake pedal stroke sensor assembly lever with the brake pedal groove.
- Check that there is no foreign matter attached to the brake pedal stroke sensor's contacting surface.
(2) Strongly depress the brake pedal and brake the brake pedal stroke sensor assembly lever set pin.
(3) Remove the broken lever set pin.
(4) Connect the brake pedal stroke sensor assembly connector.
(b) Reuse of brake pedal stroke sensor assembly :




(1) Temporarily install the brake pedal stroke sensor assembly with the 2 nuts.
- Engage the brake pedal stroke sensor lever with the brake pedal groove.
- Check that there is no foreign matter attached to the brake pedal stroke sensor's contacting surface.
(2) Connect the connector of the brake pedal stroke sensor assembly.
(3) Connect negative battery terminal.
(4) Connect the Techstream to the DLC3.

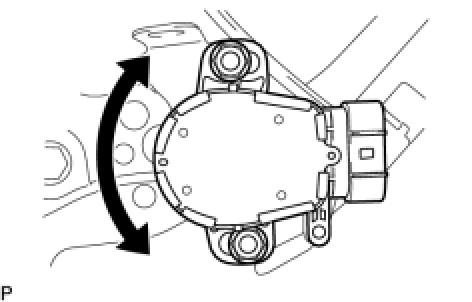

(5) Turn the engine switch on (IG). Reading the stroke sensor 1 value shown on the data monitor, turn the stroke sensor slowly to the right and left to adjust it to the standard voltage.
Standard voltage:
0.8 to 1.2 V
(6) Fully tighten the 2 nuts.
Torque: 8.5 Nm (86 kgf-cm, 75 in-lbf)
NOTE:
Do not depress the brake pedal after turning the engine switch on (IG).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Service Precautions
3. INSTALL INSTRUMENT PANEL NO.1 AIR BAG ASSEMBLY LOWER Installation
4. INSTALL INSTRUMENT PANEL NO.1 SAFETY PAD SUB ASSEMBLY Installation
5. INSTALL INSTRUMENT PANEL NO.1 UNDER COVER SUB- ASSEMBLY Installation
6. INSTALL INSTRUMENT SIDE PANEL LH Installation
7. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
8. INSTALL FRONT DOOR SCUFF PLATE LH Installation
9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
10. INSTALL CONSOLE UPPER PANEL SUB-ASSEMBLY Installation
11. INSTALL CONSOLE UPPER PANEL GARNISH FRONT Installation
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

13. INSPECT SRS WARNING LIGHT
Diagnosis System
