Removal

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal
2. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal
3. REMOVE INSTRUMENT SIDE PANEL LH Removal
4. REMOVE INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY Removal
5. REMOVE INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY Removal
6. REMOVE LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

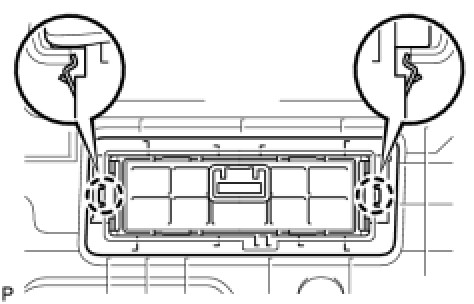

(a) Disengage the 2 claws and remove the luggage compartment door opener inner switch.
