GS 350 RWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Trunk / Liftgate Switch
>>
Service and Repair
>>
Components
Components

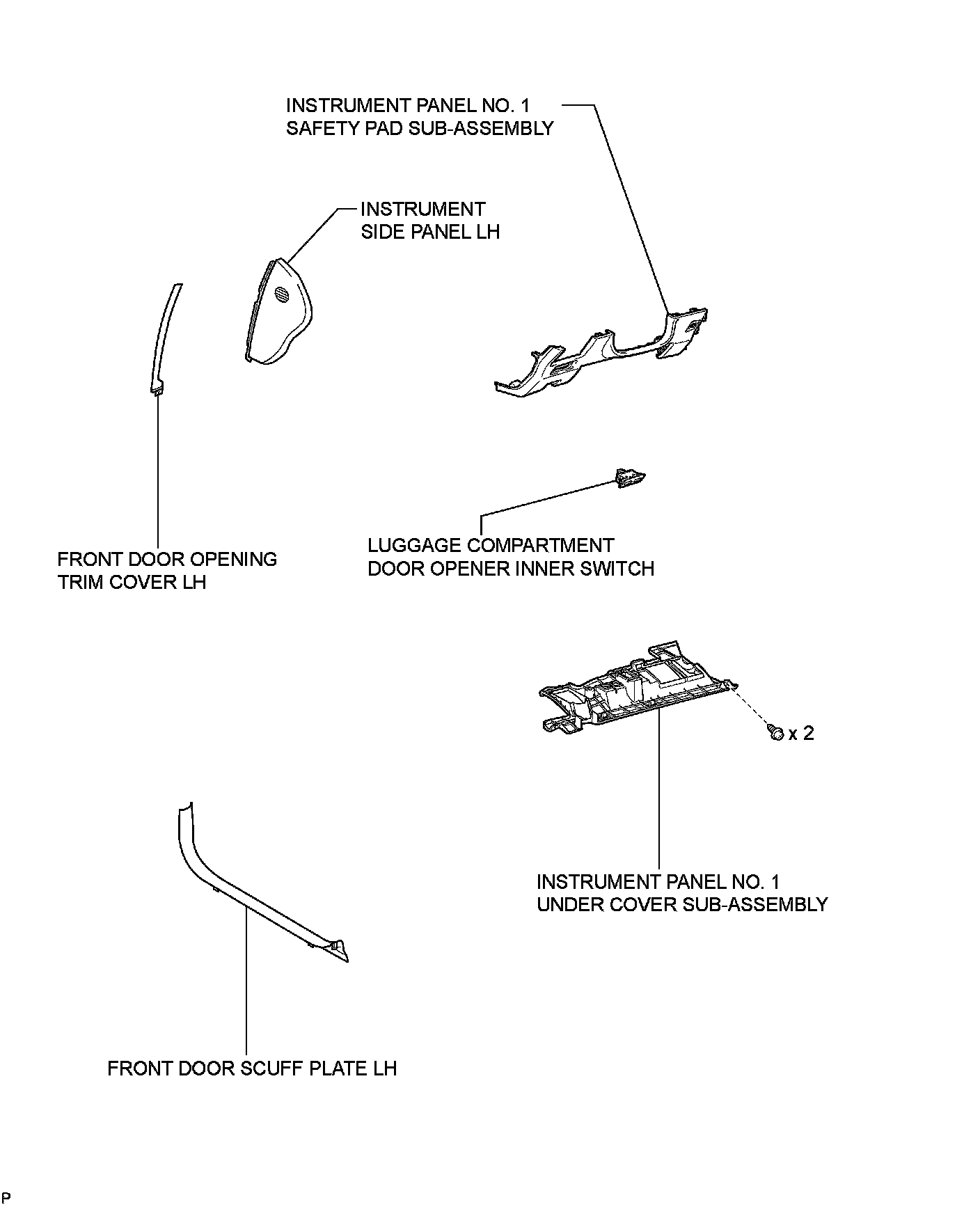

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH: COMPONENTS
COMPONENTS
ILLUSTRATION
