Removal

SEAT BELT: SEAT BELT CONTROL ECU: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT Removal
2. REMOVE LUGGAGE COMPARTMENT SIDE TRIM COVER LH
3. REMOVE LUGGAGE COMPARTMENT SIDE TRIM COVER RH
4. REMOVE TOOL BOX BOARD
5. REMOVE TOOL BOX Removal
6. REMOVE REAR FLOOR FINISH PLATE Removal
7. REMOVE LUGGAGE COMPARTMENT FRONT TRIM COVER Removal
8. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH Removal
9. REMOVE SEAT BELT CONTROL ECU

(a) Remove the 3 nuts and disconnect the seat belt control ECU and junction block assembly.

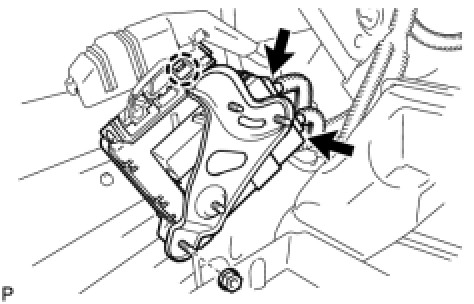

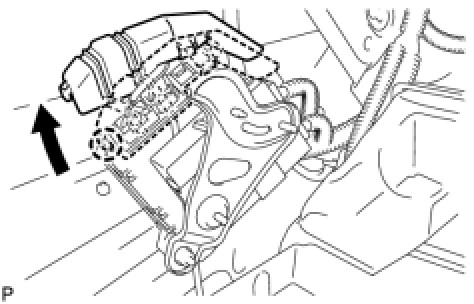

(b) Disengage the claw.
