Power Steering Relay: Testing and Inspection








POWER STEERING: ELECTRONIC POWER STEERING RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT ELECTRIC POWER STEERING RELAY

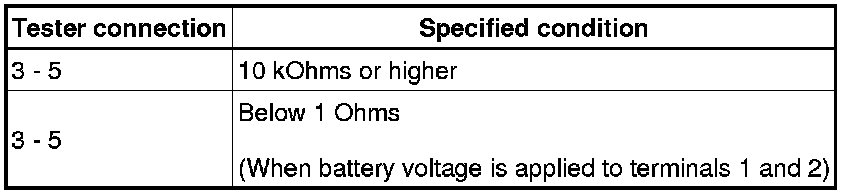

(a) Measure the resistance according to the value(s) in the table below.
Resistance:
