CELLULAR COMMUNICATION: MAYDAY ECU: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT





(a) Remove the floor mat.
3. REMOVE LUGGAGE COMPARTMENT NO. 1 LIGHT ASSEMBLY

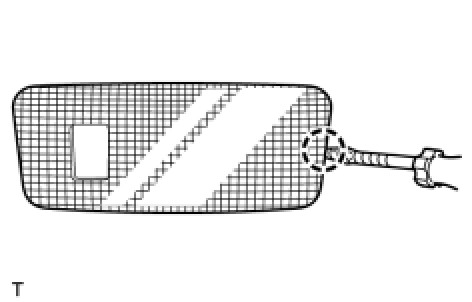

(a) Using a screwdriver, detach the claw and remove the light.
HINT: Tape the screwdriver tip before use.

(b) Disconnect the connector.
4. REMOVE TOOL BOX





(a) Remove the tool box.
5. REMOVE REAR FLOOR FINISH PLATE





(a) Remove the 2 bolts and 2 hooks.

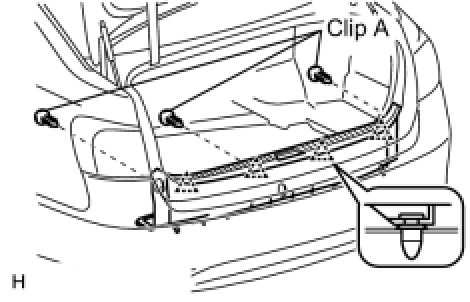

(b) Remove the 3 clips labeled A.
(c) Detach the 4 clips to remove the finish plate.
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT





(a) Detach the hook.





(b) Remove the rope hook.





(c) Detach the 4 claws and remove the trim cover.
7. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH





(a) Remove the bolt and hook.
(b) Remove the 3 clips and trim cover.
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH





(a) Remove the bolt and hook.
(b) Remove the 3 clips and trim cover.
9. REMOVE MAYDAY ASSEMBLY

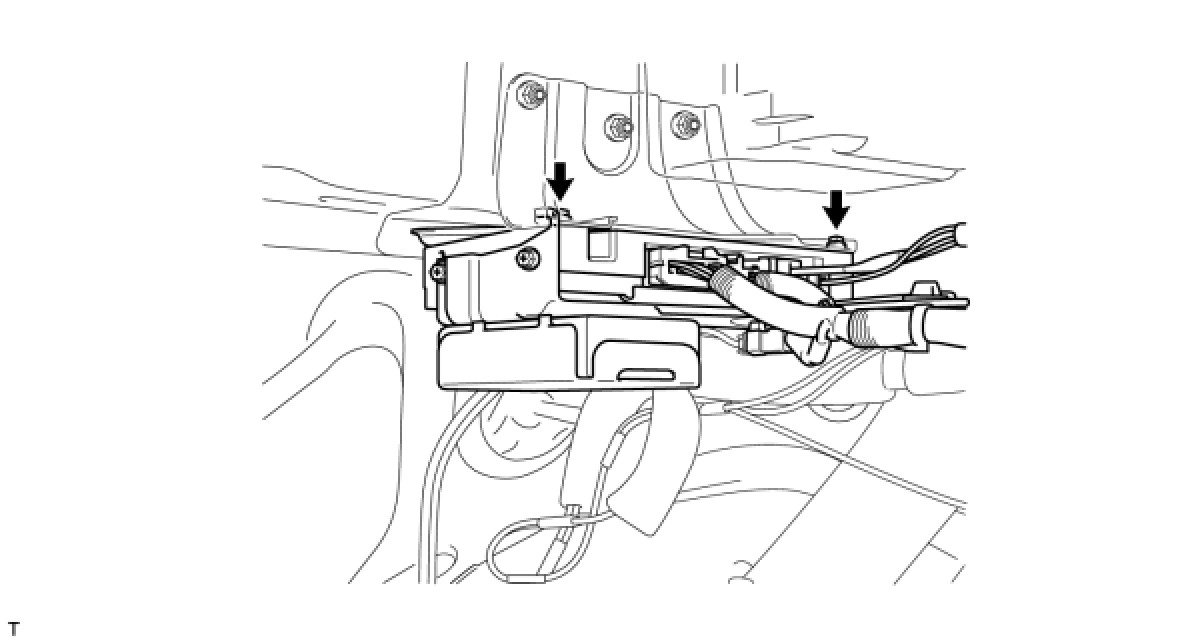

(a) Remove the 2 bolts and mayday assembly with wire harness.

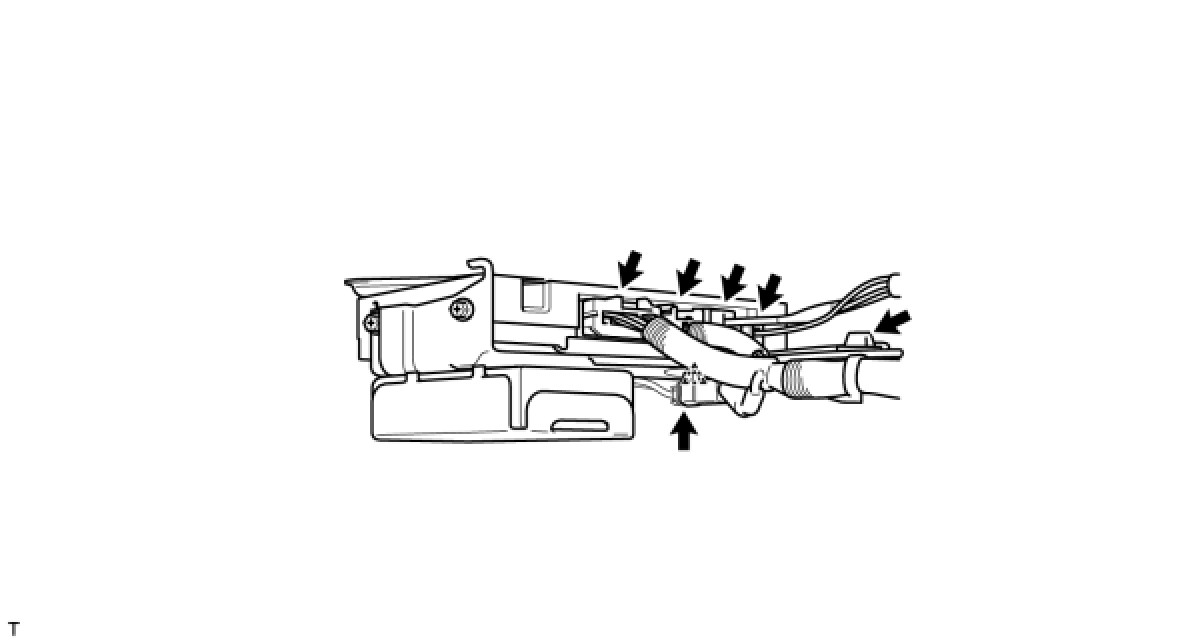

(b) Disconnect the 5 connectors and 2 clamps and remove the mayday assembly.
