Disassembly

CELLULAR COMMUNICATION: MAYDAY ECU: DISASSEMBLY

DISASSEMBLY

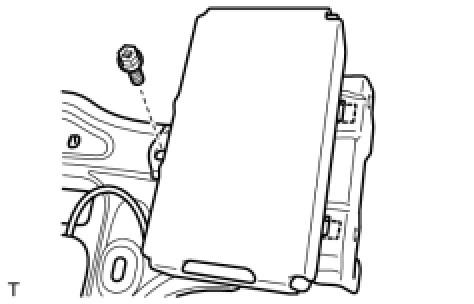

1. REMOVE NO. 2 MOBILEPHONE BRACKET
(a) Remove the 2 bolts and bracket.

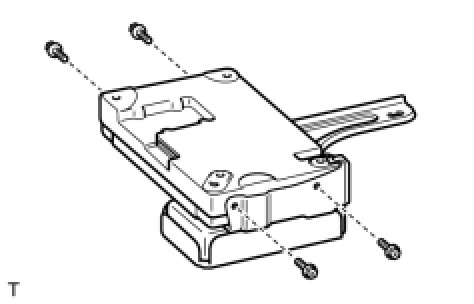

2. REMOVE MAYDAY ECU
(a) Remove the 4 bolts and ECU.

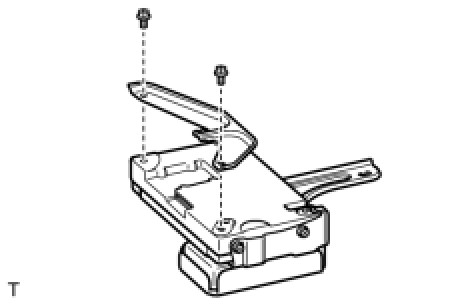

3. REMOVE MAYDAY BATTERY
(a) Remove the bolt, No. 4 mobilephone bracket and battery.
