Home >> Lexus >> 2009 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Emergency Contact Module >> Locations

Emergency Contact Module: Locations








CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: PARTS LOCATION

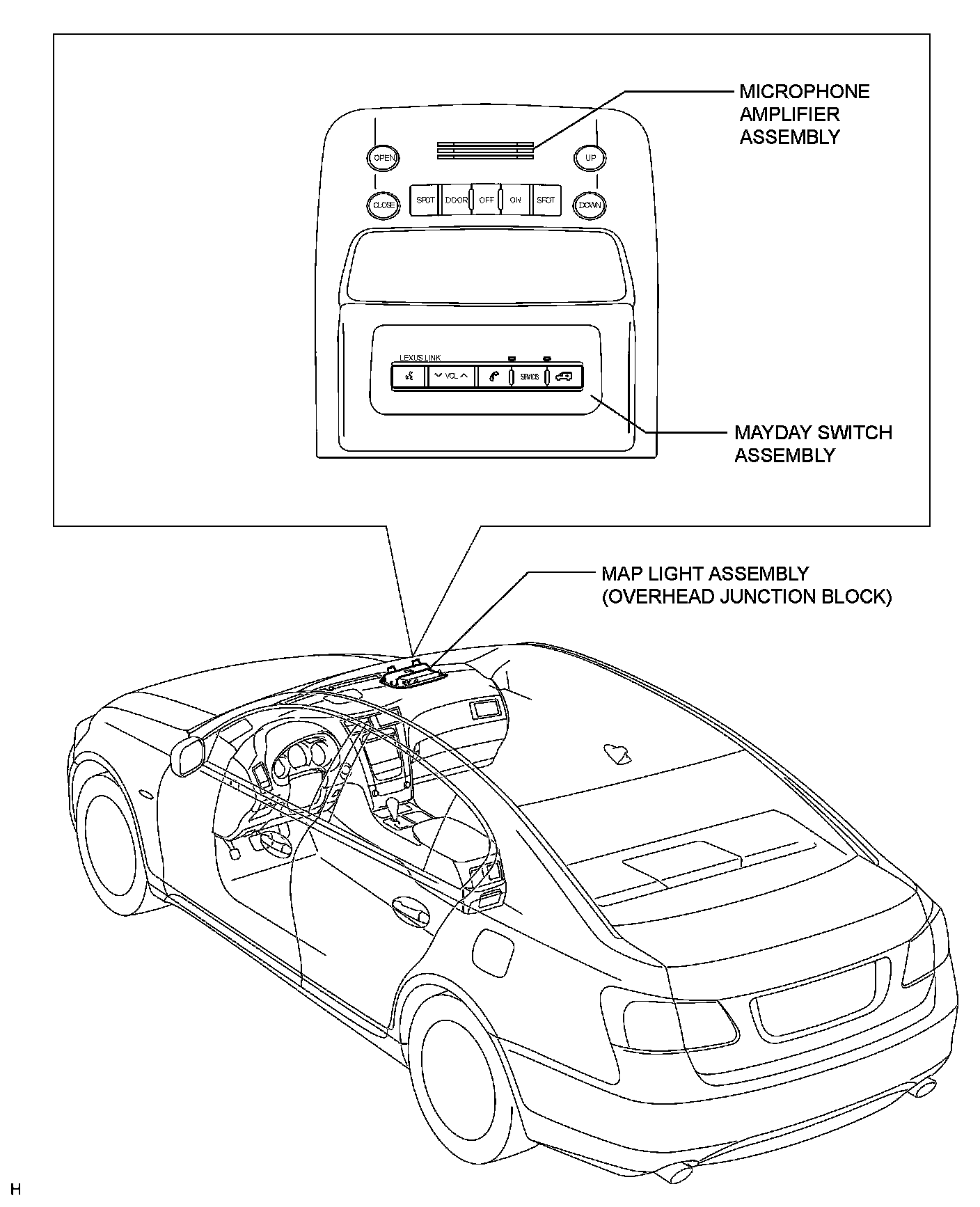

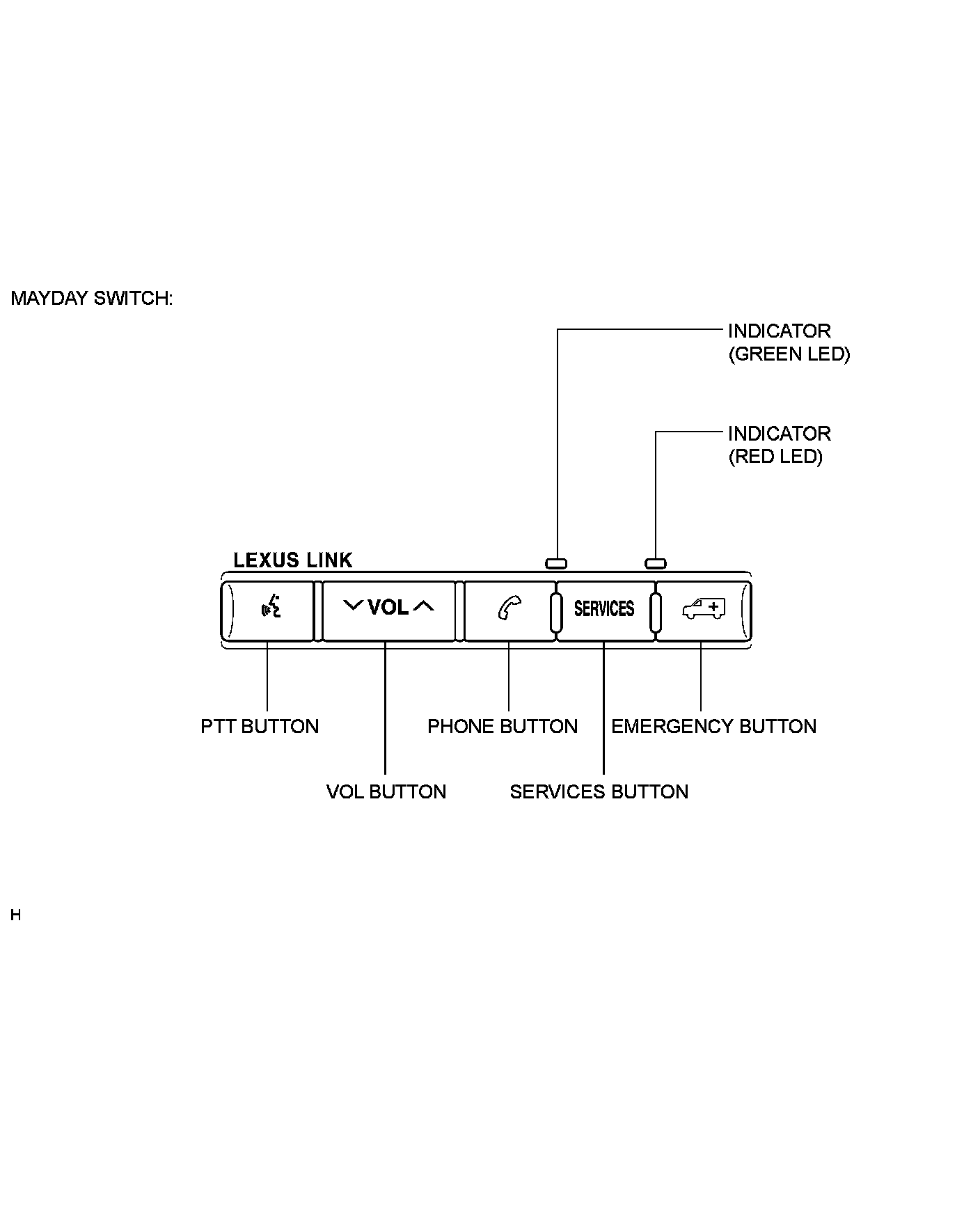

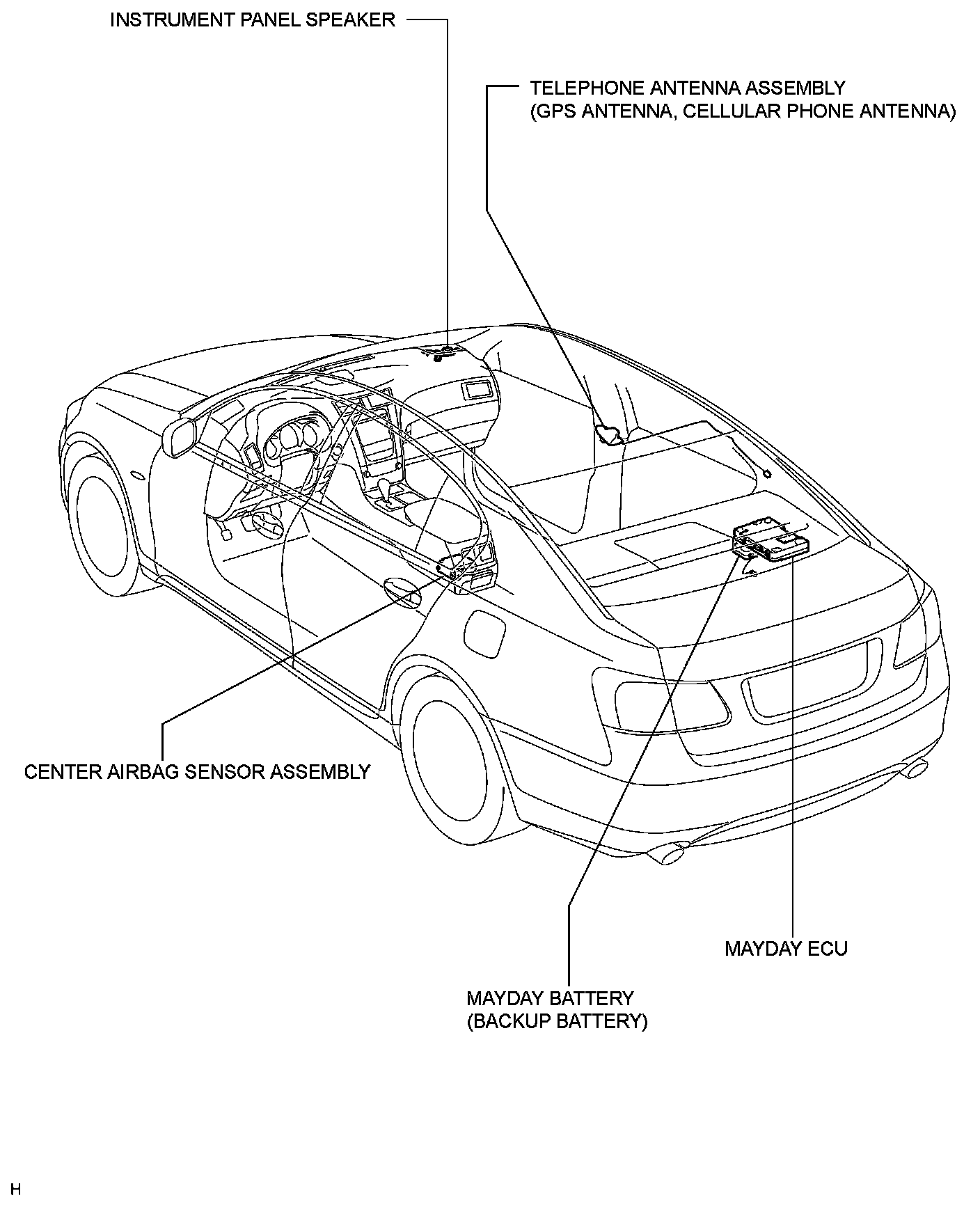

PARTS LOCATION

ILLUSTRATION
