2GR-FSE FUEL: FUEL PRESSURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL FUEL PRESSURE SENSOR
(a) Install a new gasket to the fuel pressure sensor.





(b) Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.
SST: 09922-10010
Torque: 24 Nm (240 kgf-cm, 18 ft-lbf)
Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)

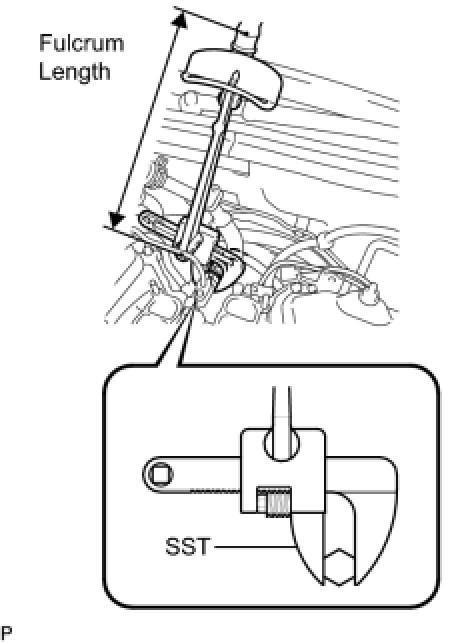

- The torque for use with SST is the torque when SST is used at the position shown in the illustration.
- Make sure SST and wrench are connected in a straight line.

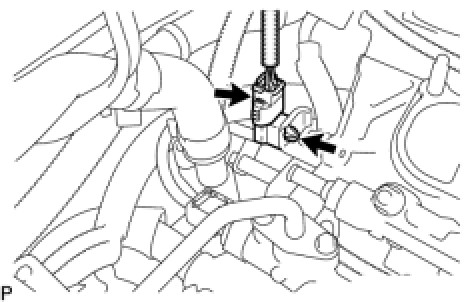

(c) Connect the connector with the clamp.
2. INSTALL NO. 1 FUEL PIPE Installation
3. CONNECT WATER HOSE JOINT Installation
4. INSTALL INTAKE MANIFOLD Installation
5. INSTALL INTAKE AIR SURGE TANK Installation
6. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY Installation
7. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation
8. CONNECT NO. 2 VENTILATION HOSE Installation
9. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
10. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
11. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
12. INSTALL FRONT FENDER TO COWL SIDE SEAL LH Installation
13. INSTALL FRONT FENDER TO COWL SIDE SEAL RH Installation
14. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH Installation
15. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH Installation
16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
17. ADD ENGINE COOLANT Service and Repair
18. INSPECT FOR COOLANT LEAK Testing and Inspection
19. INSPECT FOR FUEL LEAK Testing and Inspection
20. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
21. INSTALL ENGINE ROOM SIDE COVER LH Installation
22. INSTALL ENGINE ROOM SIDE COVER RH Installation
23. INSTALL COOL AIR INTAKE DUCT SEAL Installation
24. CHECK FUNCTION OF THROTTLE BODY WITH MOTOR ASSEMBLY On-Vehicle Inspection
25. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable to the negative (-) battery terminal.
