Installation

2GR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: INSTALLATION

INSTALLATION
NOTICE:
- Avoid physical shock to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.

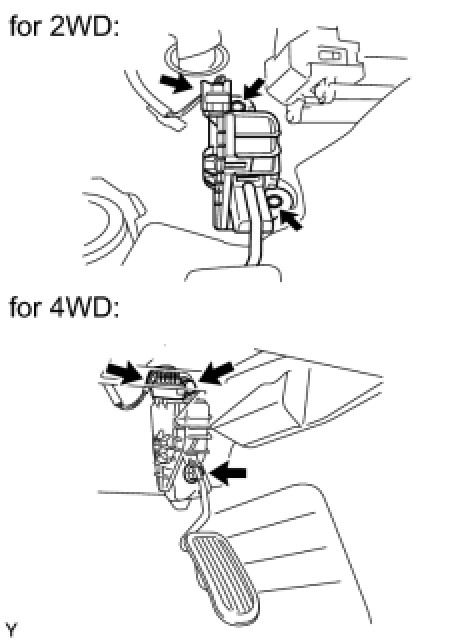

1. INSTALL ACCELERATOR PEDAL
(a) Install the accelerator pedal with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
(b) Connect the accelerator pedal position sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
